____ Assembly Instructions ____
Item No. 2355
start here ---
1. Find a clear area in which you can work.
2. Unpack Fixture and glass from carton.
3. Carefully Review Instructions Prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, attaching the mounting strap to the junction box,
making all necessary electrical connections, hanging the fixture from the wall.
1. Remove main mounting plate (A) from fixture back plate (B) by removing the 4
flat head screws (C) - see Drawing 1.
2. Slide the wires from the junction box, through the large center hole, making
sure curved slots (D) line up with the threaded holes (E) in the junction box.
3. Using two 8-32 screws (F) attach the main mounting plate (A) to the junction
box, making sure the top of mounting plate (A) is parallel to ceiling.
SAFETY WARNING: READ WIRING AND GROUNDING
INSTRUCTIONS (I.S. 18) AND ANY ADDITIONAL DIRECTIONS.
TURN POWER SUPPLY OFF DURING INSTALLATION. IF NEW
WIRING IS REQUIRED, CONSULT A QUALIFIED ELECTRICIAN OR
LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

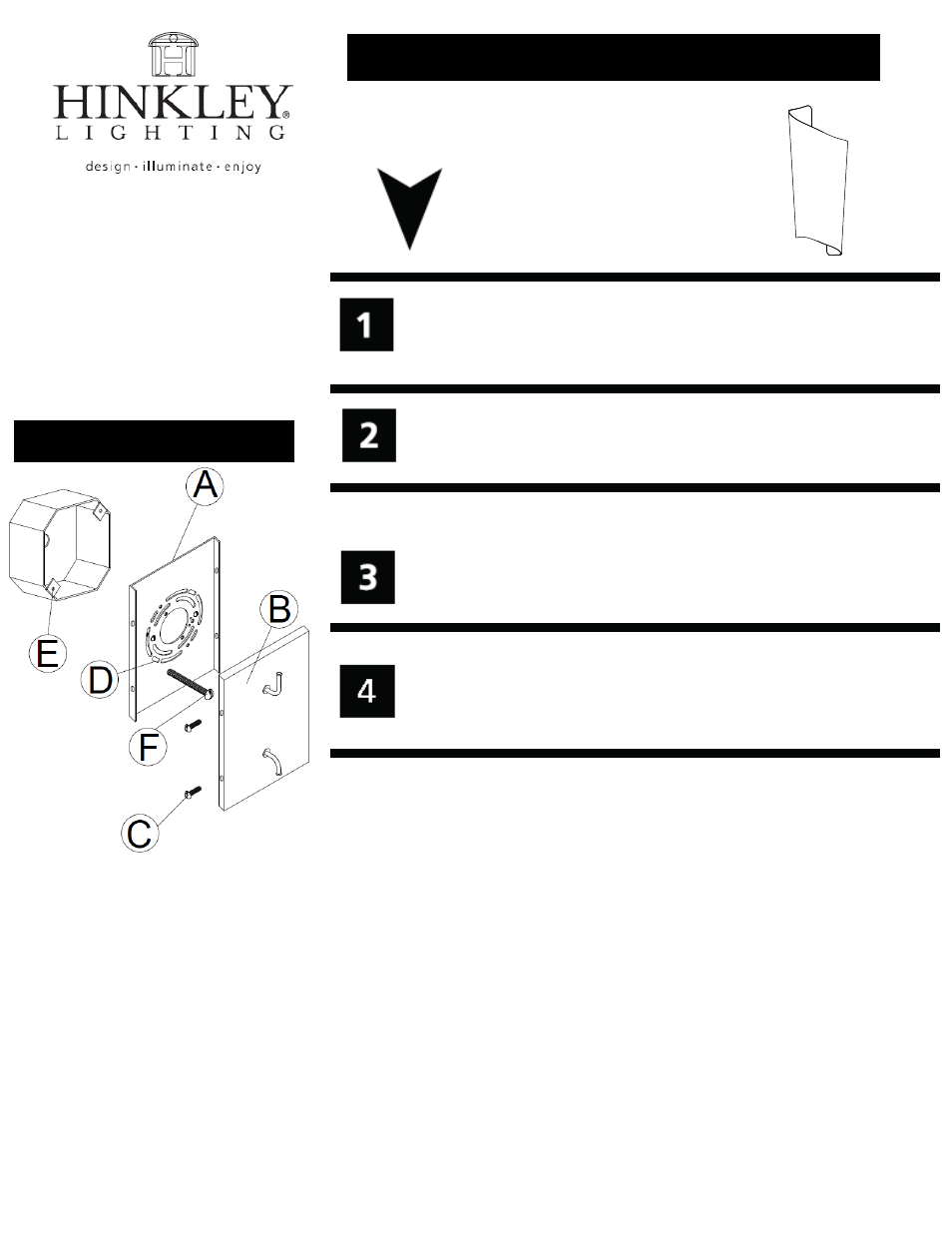

Drawing 1 – Mounting Detail
