Hinkley Lighting THISTLEDOWN 1282VZ - Manual

assembly instructions
Family: Thistledown Item No. 1282VZ
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first installing the
glass, installing the mounting strap, making all necessary electrical connections,
and then hanging the fixture.
start here
1282
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Note: Maximum wattage for 1282 fixture is 100 watts per bulb.

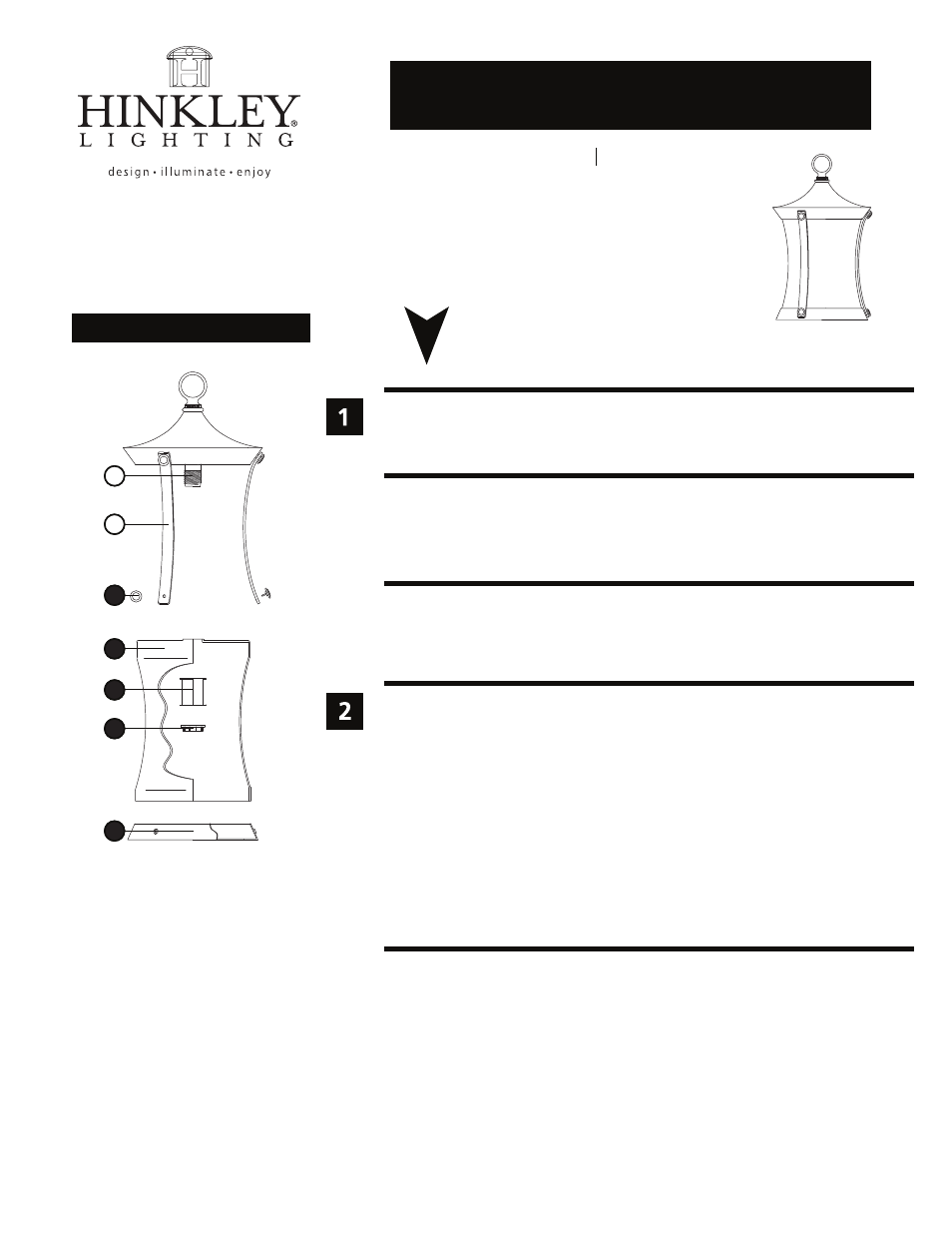

Drawing 1 - Fixture Assembly
1. To install glass, remove decorative knob (1) from the bottom of the 3 uprights (B).
2. Remove bottom ring (2).
3. Remove socket ring (3) and spacer (4) from threaded socket (A).
4. Slip glass (5) over socket (A) and hold in position.
5. Slip spacer (4) over socket and hold in position.
6. Thread socket ring (3) onto socket and tighten.
7. Slip bottom ring (2) onto bottom of glass (5) and line up the hole in the ring with
the holes in the uprights (B).
8. Thread decorative knob (1) back into ring (2).
9. Fixture can now be lamped accordingly.
10. Please refer to the hanging instruction sheet (I.S. 19) provided to complete
installation of this fixture.
1 A
1 B
1
5
4
3
2
