Hinkley Lighting ELM 1151RB - Manual

assembly instructions
Family: Elm Item No. 1151 RB
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Slip glass cylinder (1) over harp assembly (2) and into bottom glass holder (3) - see
Drawing 1.
2. Slip interior cap (4) over harp assembly (2) and onto top of glass (1).
3. Thread hex nut (5) onto harp (3) and tighten down onto cap (4) to secure glass (1).
4. Slip top cap (6) onto harp (2) and over cap (4).
5. Thread on decorative knob (7) and tighten to secure top cap (6).
*** The construction of this fixture will be accomplished by first assembling
main body of the fixture, making all necessary electrical connections, mounting
the fixture to pre-installed post, and then installing the glass.
start here
1151
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Note: Maximum wattage for 1151 fixture is 100 watts per bulb.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

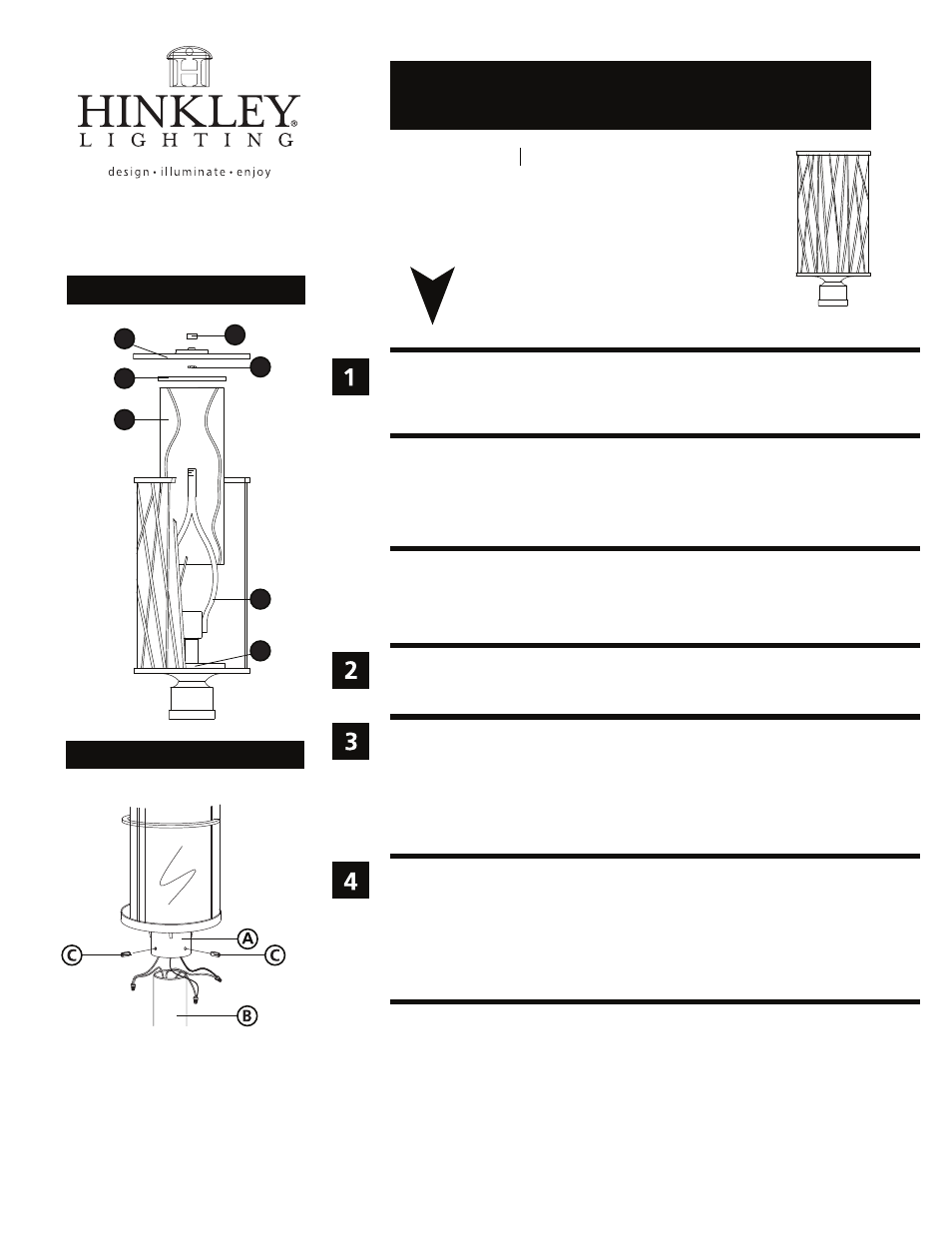

Drawing 2 - Fixture Mounting
Drawing 1 - Fixture Assembly
1
4
6 7
5
2
3
1. After wiring connections are complete, slip post fitter (A) over top of pre-installed
post (B) making sure all wire connections are tucked inside the pole - see Drawing 2.
2. When fixture is slipped over pole make sure no wires are being pinched between
the top edge of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screws (C) to secure fixture to post.
5.5.10
