assembly instructions
Family: Aria Item No. 2304
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Fixture can now be lamped accordingly.
2. Slip mesh cylinder (2) into top of fixture making sure to slip top edge engages
clip (1).
- see Drawing 2.
*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then lamping the fixture.
start here
2304
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

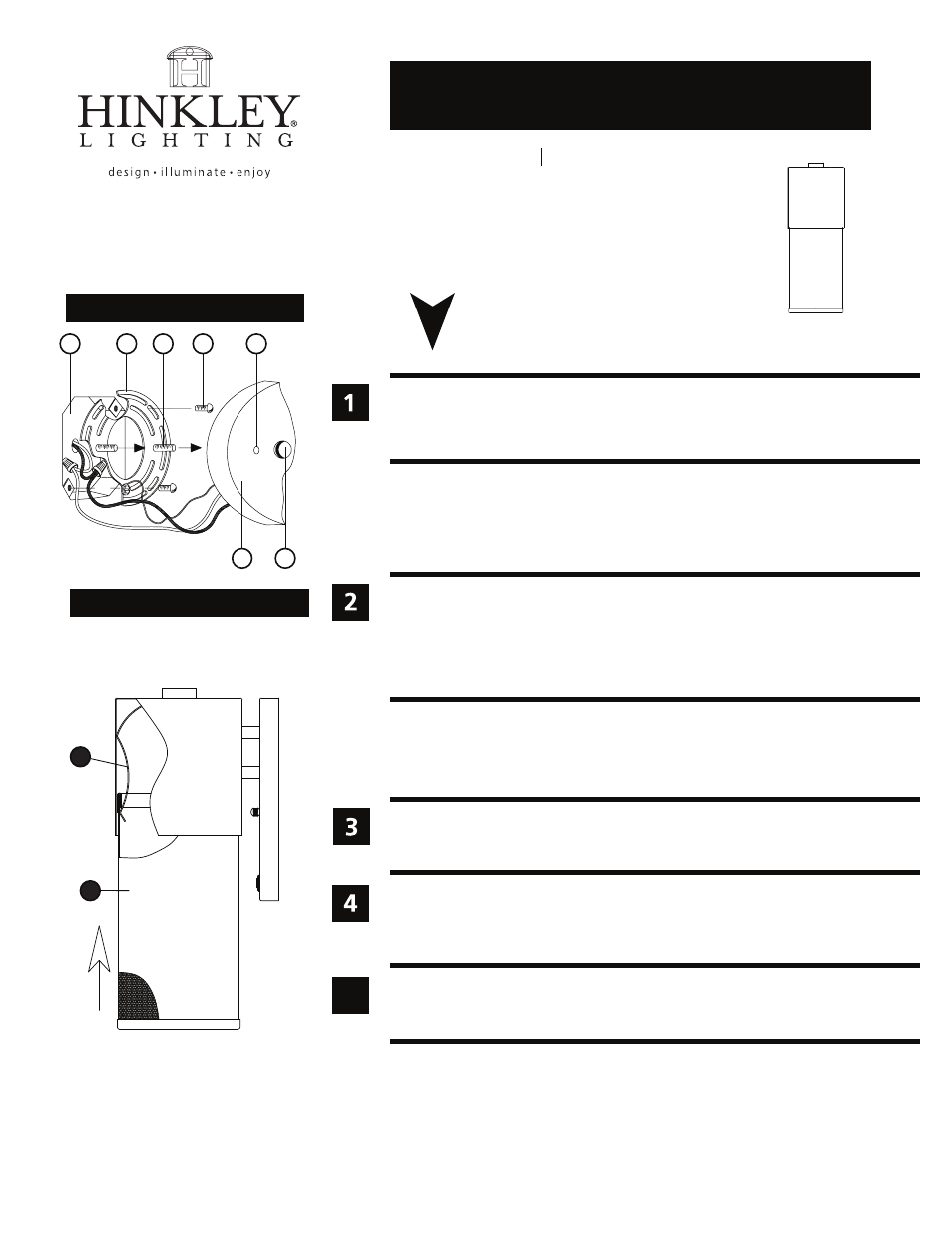

Drawing 2 - Fixture Assembly
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
Drawing 1 - Fixture Mounting
A J B C D
E F
back plate
1. Prepare mounting strap (A) by threading the two 1 1/4” long mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the backplate (E).
2. Attach mounting strap (A) to junction box (J) using two 1” screws (C).
1. To mount fixture, slip the two mounting screws (B) through the two mounting holes
(D) in the backplate (E) - see Drawing 1.
2. While holding fixture in place, thread the two ball knobs (F) on to the end of the
mounting screws (B), and tighten.
5
6.1.11
1
2
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
