FR49450BNI

QUATTRO

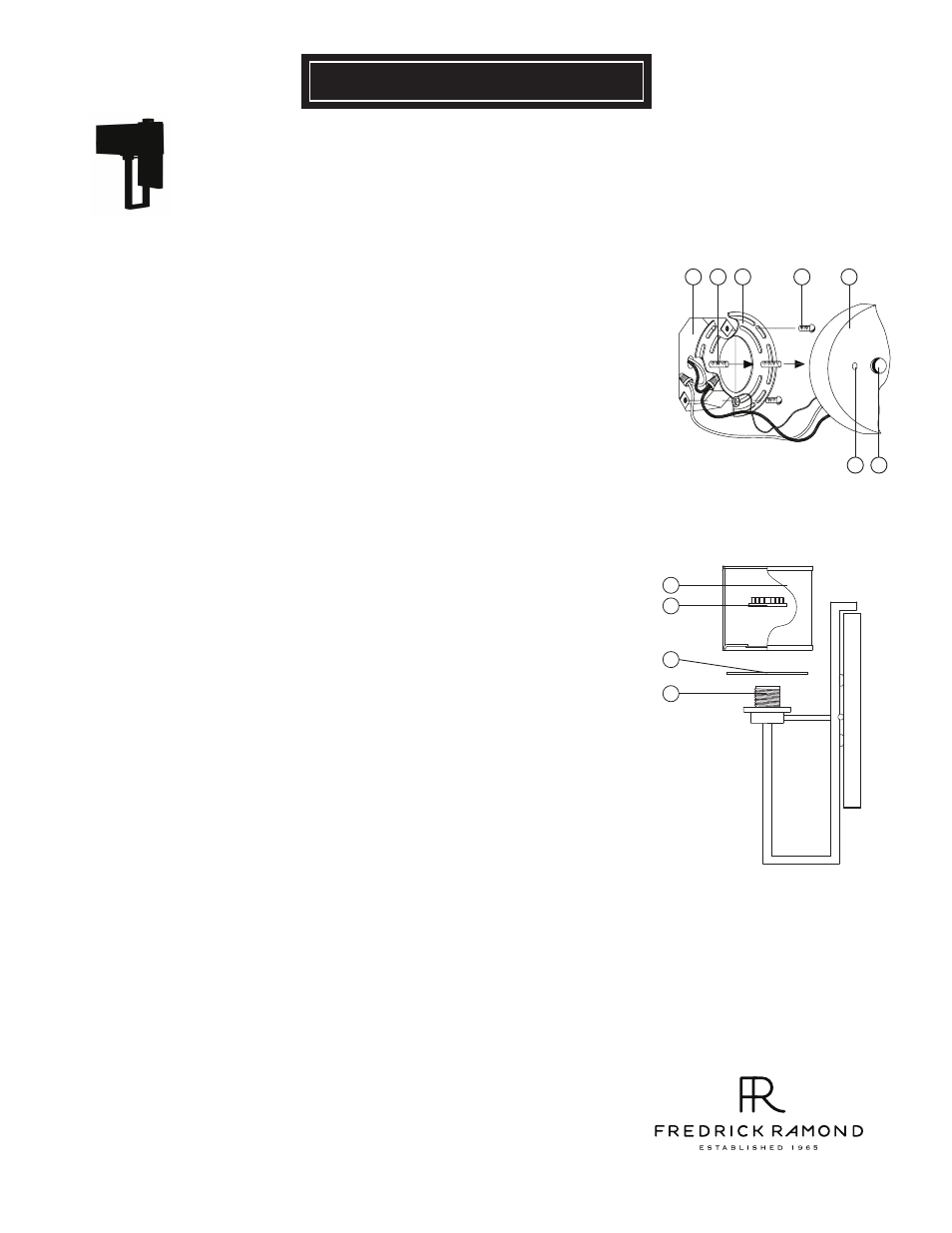

ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by first installing the mounting strap to

the junction box, making all necessary electrical connections, mounting the fixture to

the wall and then attaching fixture shades.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

STEP 1

1

Prepare mounting strap (a) by threading the two longest mounting screws (b)

into the back of the mounting strap (a), making sure the holes into which the

screws are threaded match the spacing of holes (d) in the backplate (e) -

See

Drawing 1.

2

Attach mounting strap (a) to junction box (j) using two screws (c).

3

Make electrical connections from supply wire to fixture lead wires. Refer to

instruction sheet [FRIS18] and follow all instructions to make all necessary

wiring connections. Then refer back to this sheet to continue installation of

this fixture.

4

To mount fixture, slip the two mounting screws (b) through the two mounting

holes (d) in the backplate (e).

5

While holding fixture in place, thread the two ball knobs (f) onto the end of the

mounting screws (b), and tighten.

STEP 2

1

To install acrylic lens and shade, remove socket ring (1) from threaded socket (2)

- See Drawing 2.

2

Slip lens (3) over threaded socket (2).

3

Slip shade (4) over threaded socket (2). Making sure acrylic lens (3) seats

properly in the bottom of shade (4).

4

Thread socket ring (1) onto socket (2) and tighten to secure parts.

5

Fixture can now be lamped accordingly.

[DRAWING 1]

[DRAWING 2]

j

Bulbs:

75W MEDIUM

Replacement Parts:

SHADE: R49450SH DIFFUSER: R49450df

b a

c

e

d f

1.22.09

800.421.3517 WWW.FREDRICKRAMOND.COM

1

4

2

3
