Hinkley Lighting FREEPORT 1801 User Manual
Start here, Assembly instructions

assembly instructions
Family: Freeport Item No. 1801 OZ
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, mounting
the fixture to pre-installed post, and then installing the glass.
start here

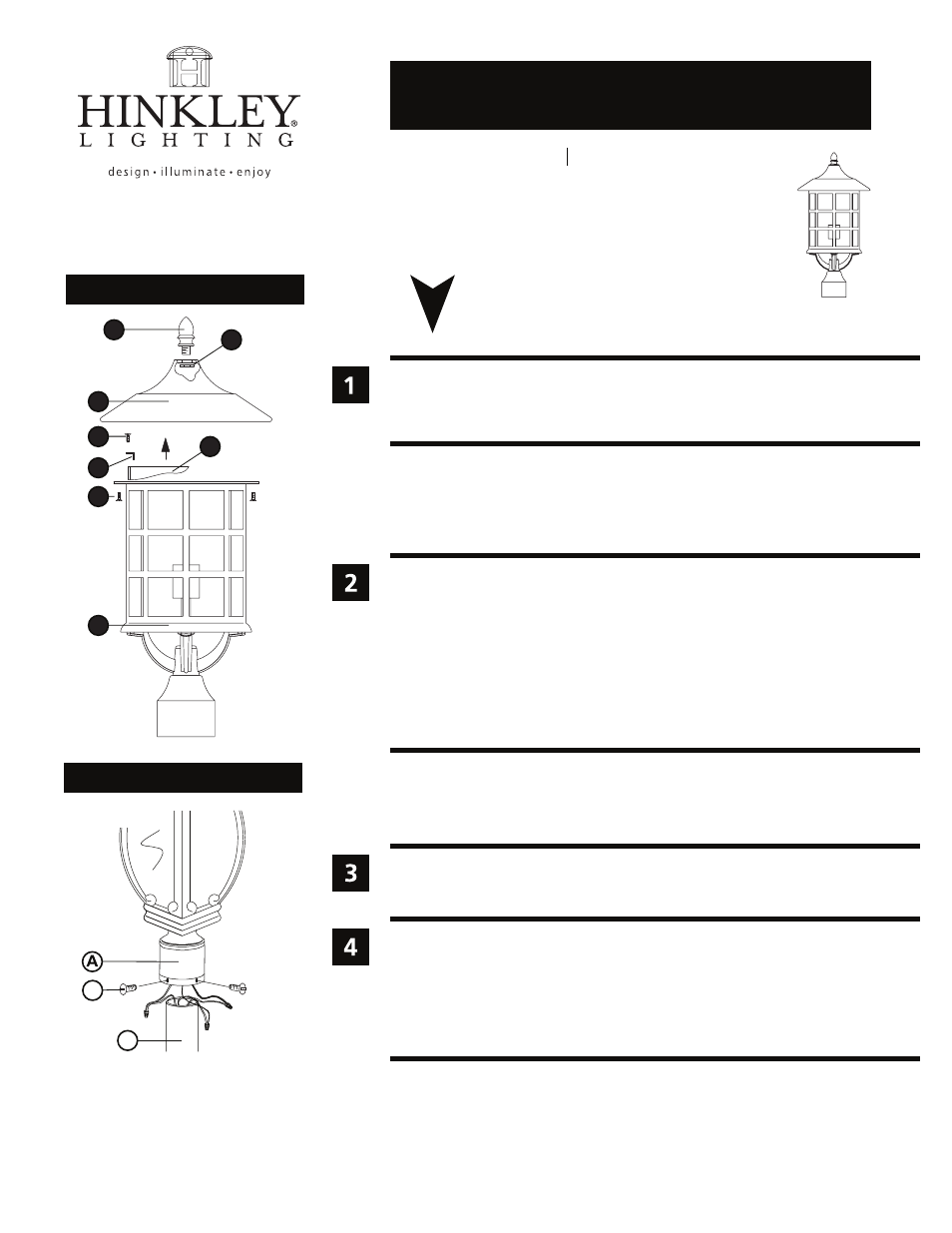

Drawing 1 - Fixture Assembly
Drawing 2 - Fixture Mounting
18
01
C
B
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet 18 (I.S. 18) and follow instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
1. After wiring connections are complete, slip post fitter (A) over top of pre-installed
post (B) making sure all wire connections are tucked inside the pole - see Drawing 1 .
2. When fixture is slipped over pole make sure no wires are being pinched between the
top edge of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screw (C) to secure fixture to post.
11.12.09
1
3
4
5
2
6
1. Remove screws (2) from under roof (1). Make sure cage assembly (3) is supported
while removing screws. When last screw is removed the cage assembly can drop off
the fixture - see Drawing 1.
2. Remove screws (4) that hold the glass clips (5) in place.
3. Glass (6) can now be lifted out of the cage assembly (3) .
4. To replace glass, follow steps 1-3 in reverse order.
8
7
5. The roof finial (7) is mounted inside the roof to save space. It will be necessary to remove nut
(8) remove finial and placei finial (6) in the correct position. Then thread nut (8) onto finial (7) and
tighten.
