Start here, Assembly instructions

5.18.10

assembly instructions

Family: Revere Item No. 1182 SN

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. To install glass (2), slip glass panels into cage assembly (1) from bottom opening. The
center cluster (A) can swivel from side to side to make installation easier.
2. Secure glass (2) in cage assembly (1) by folding down the glass clips (3).
3. Repeat process for the remaining 3 glass panels.
4. Slip candle sleeve (4) over socket (B) by slipping it up through the bottom of the
cage assembly (2).
5. Fixture can now be lamped accordingly.

*** The construction of this fixture will be accomplished by first assembling the
the main body of the fixture, making all necessary electrical connections, and
then hanging the fixture from the ceiling.

start here

1182

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Note: Maximum wattage for 1182 fixture is 60 watts per bulb.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer to the hanging instruction sheet (I.S. 19) provided to complete installation
of this fixture.

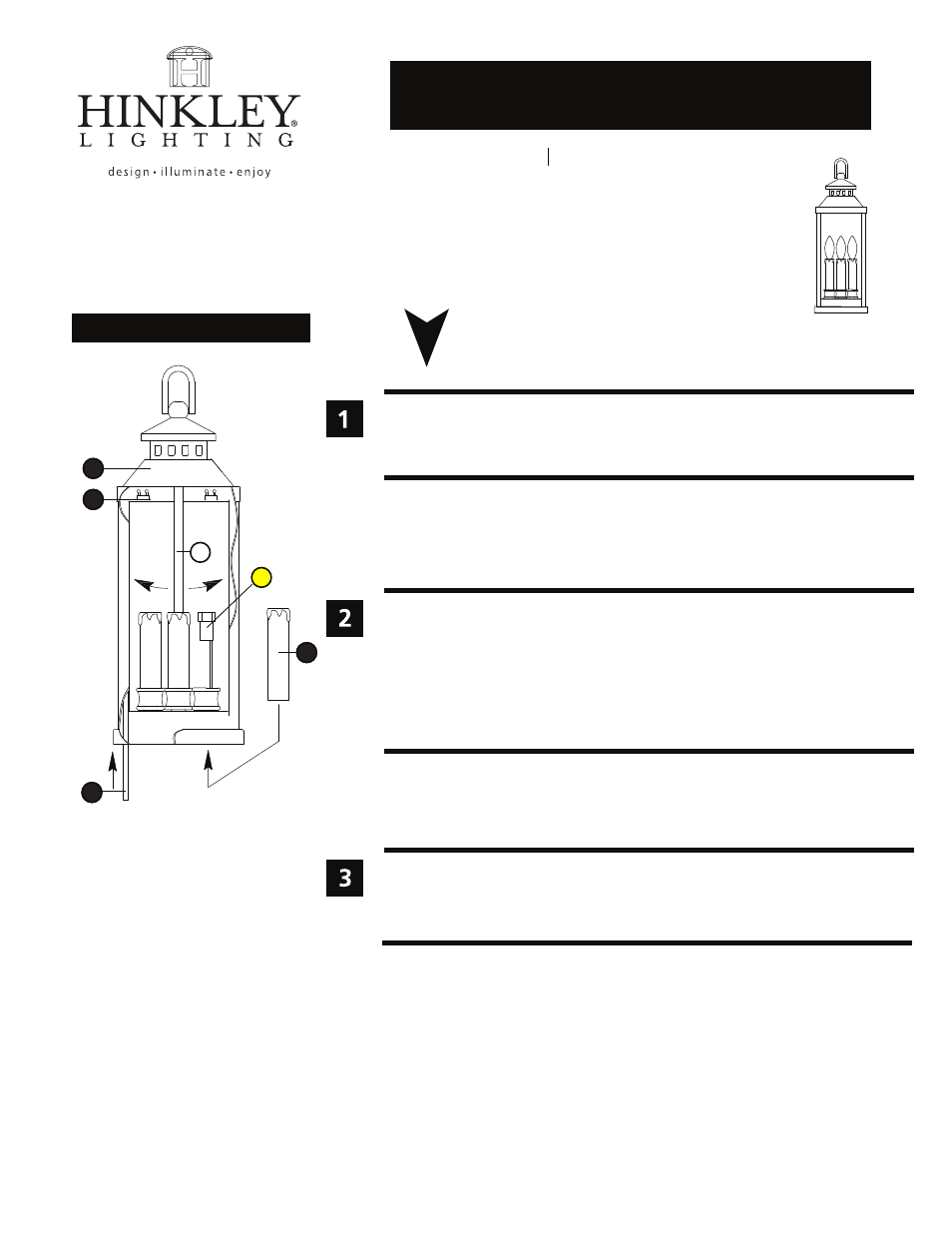

Drawing 1 - Fixture Assembly
