Start here, Assembly instructions

assembly instructions
Family: Castelle Item No. 1391 BK/BZ
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Prior to assembling the main body, fixture can now be lamped accordingly.
2. To assemble main body, take the main body assembly (1) and attach roof strap (2)
using ball knobs (3) - see Drawing 1
3. Slip roof (4) over nipple (6).
4. Thread top finial (5) onto top of fixture to secure roof (4).
1. Slip post fitter (A) over top of pre-installed post (B) - see Drawing 2.
2. Using the holes in the side of the post fitter as guides, drill three 1/16” diameter
holes in the pole.
3. Now screw in the three sheet metal screws (C) to secure fixture.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections and then
mounting the fixture to pre-installed post.
start here
1391
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Note: Maximum wattage for 1391 fixture is 100 watts per bulb.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

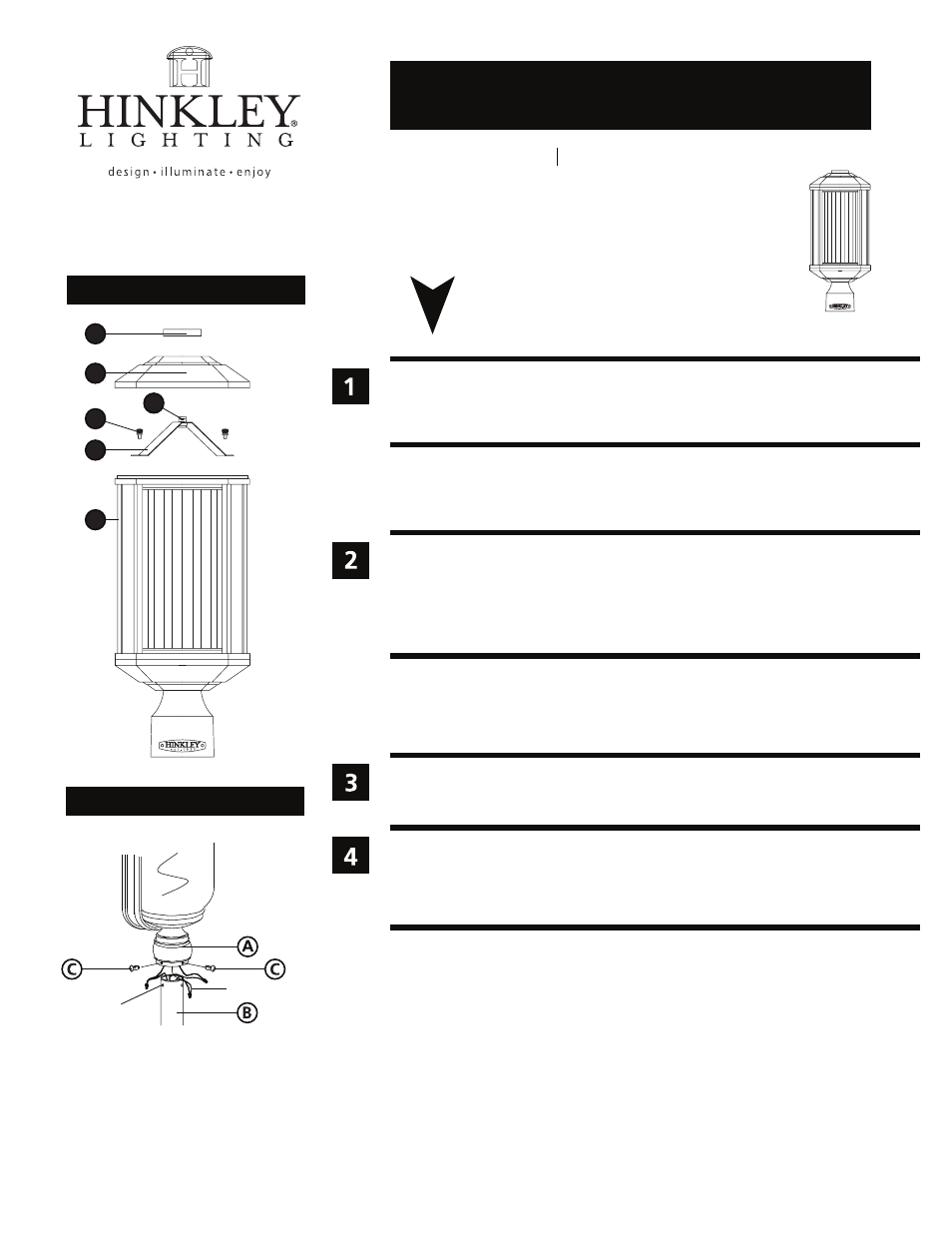

Drawing 2 - Fixture Mounting
Drawing 1 - Fixture Assembly
Mark and
drill holes
prior to
wiring
ground wires
1
2
6
4
5
3
9.14.09
