ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by first installing the mounting strap to

the junction box, making all necessary electrical connections, mounting the fixture to

the wall, and then installing the crystal and fixture glass.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

STEP 1

STEP 4

1

Slip glass (3) over socket (s) - See Drawing 2.

3

Slip socket cover (4) over socket (S) making sure flat washer is facing down. Making

sure small tube on bottom of sleeve slips through bottom hole in glass.

4

Fixture can now be lamped accordingly.

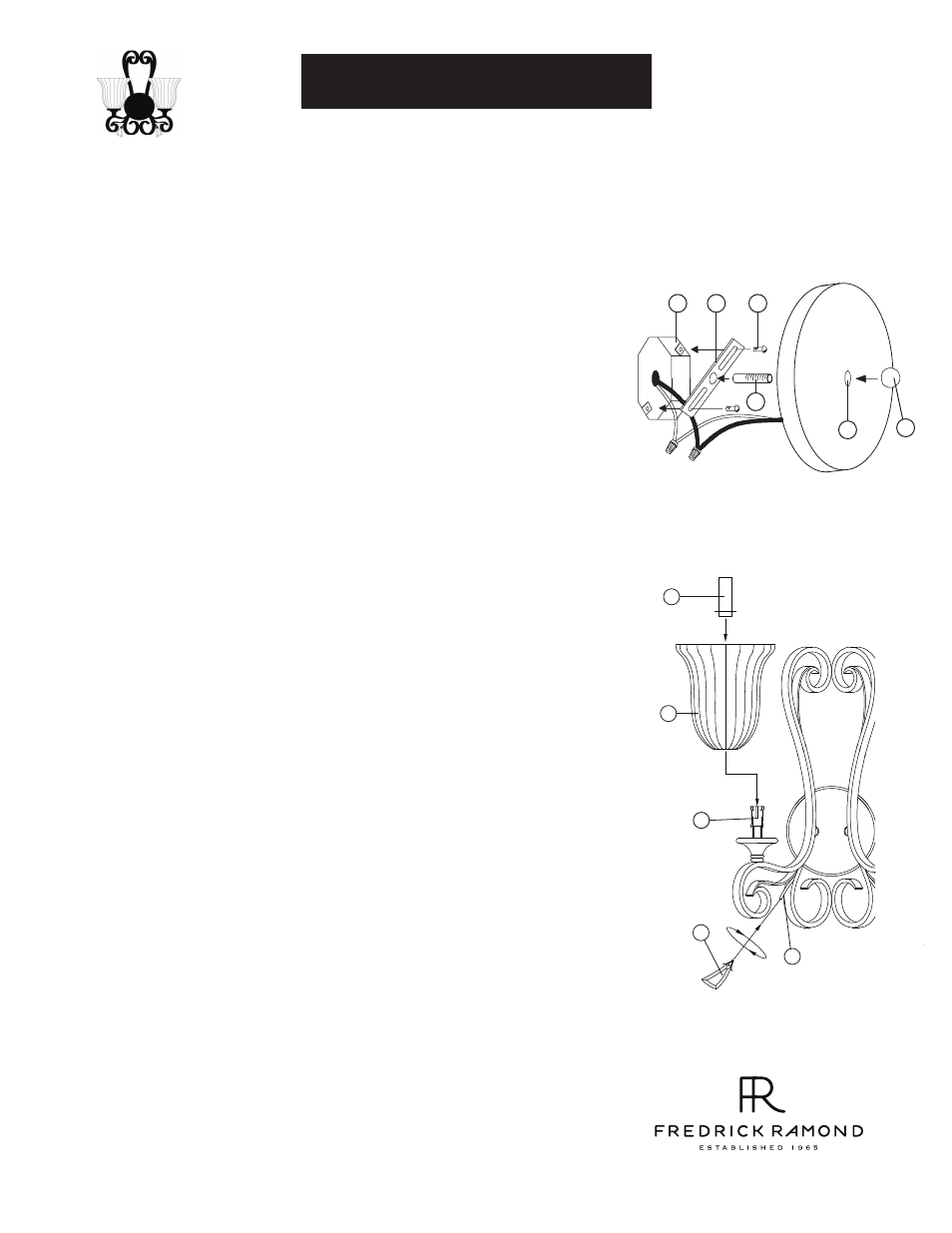

[DRAWING 1]

[DRAWING 2]

Bulbs:

60W CAND.

Replacement Parts:

GLASS: FR42640gl, fR42640CRY

6.01.11

800.421.3517 WWW.FREDRICKRAMOND.COM

To install crystal (1) thread end into end of stem (2) until snug or in appropriate position.

2

2

3

4

1

s

d

a

j

e

c

b

1

Prepare mounting strap (a) by threading tube into the center hole of

the mounting strap (a), approximately 1/4“- see Drawing 2.
2

Attach mounting strap (a) to junction box (j) using two screws (b) provided.

Make electrical connections from supply wire to fixture lead wires.

Refer to instruction sheet (I.S. 18) and follow all instructions to make all necessary

wiring connections. Then refer back to this sheet to continue installation of this fixture.

STEP 2

1

To mount backplate to wall, slip center hole of backplate (e) over nipple (c) and

hold fixture in position - see Drawing 2.

2

Thread decorative knob (d) onto end of nipple (c) and tighten to secure fixture.

STEP 3
