assembly instructions
Family: Aurora Item No. 2281 MT
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Slip post fitter (A) over top of pre-installed post (B) - see Drawing 2.
2. Using the holes in the side of the post fitter as guides, drill three 1/16” diameter
holes in the pole.
3. Now screw in the three sheet metal screws (C) to secure fixture.
start here
2281
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

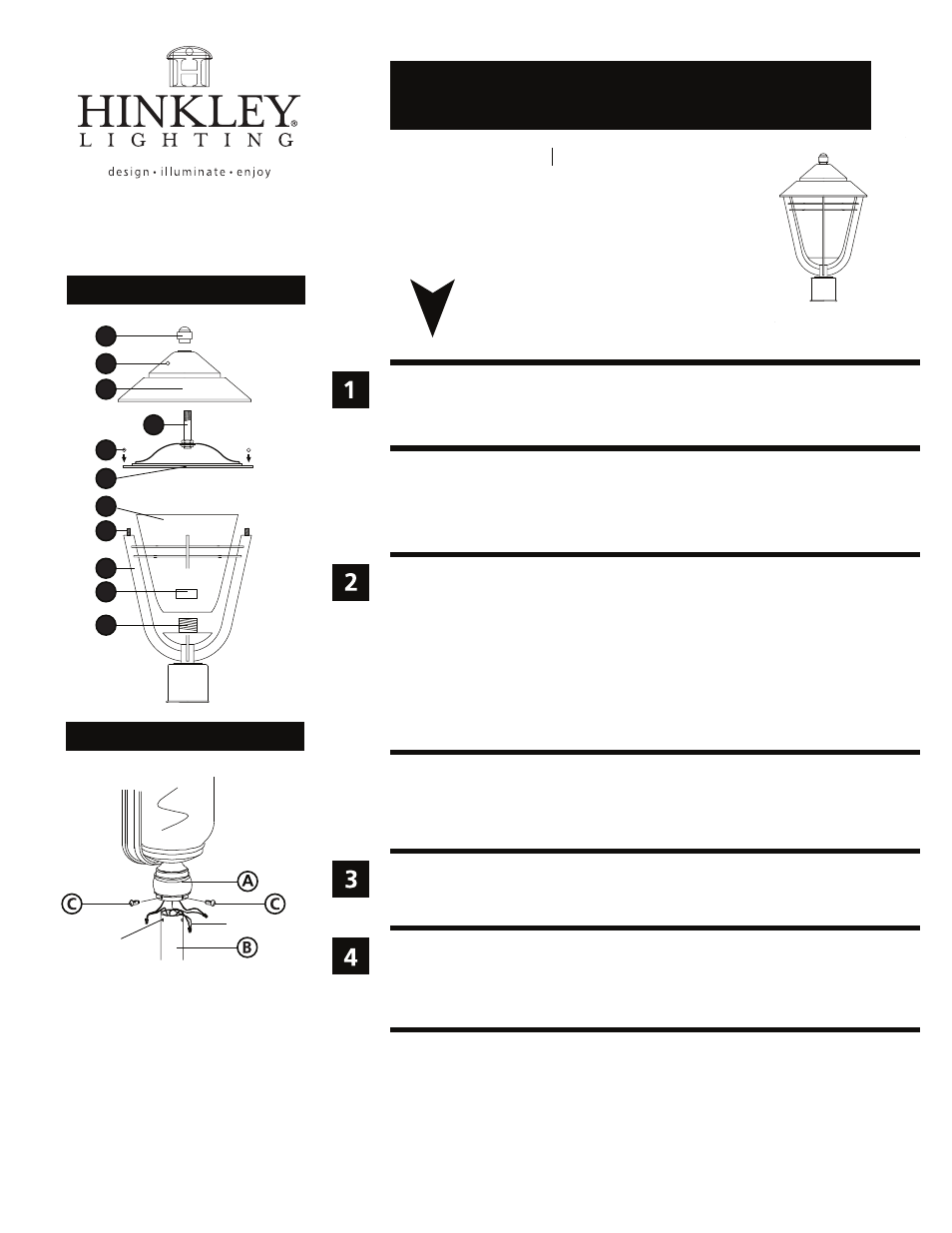

Drawing 2 - Fixture Mounting
Drawing 1 - Fixture Assembly
Mark and
drill holes
prior to
wiring
ground wires
1
3
11
4
5
7
8
9
10
6
2
*** The construction of this fixture will be accomplished by first installing the
fixture glass,making all necessary electrical connections, and then mounting the
fixture to pre-installed post.
1. To install glass, unscrew top finial (1) from nipple (2) - see Drawing 1.
2. Slip cap (3) off nipple (2).
3. Unscrew ball knobs (4) off studs (5).
4. Remove harp (6) from cage (7).
5. Unthread socket ring (8) from socket (9).
6. Slip glass (10) over socket (9) and thread socket ring (8) back onto socket (9).
7. Fixture can be lamped accordingly.
8. To reassemble fixture, follow steps 1-4 in reverse order.
2.7.08
