assembly instructions
Item No. 4228
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To assemble fixture, spread fixture arms (A) apart until they are equally
spaced 60 degrees. - see Drawing 1.
2. Spread fixture arms (B) until they are equally spaced 120 degrees apart and equally
spaced between the (A) arm below - see Drawing 1.
3. It may be necessary to ajust scroll (S) so it is center on the arm after they are moved
into position.
4. Please refer to hanging instruction sheet (I.S. 19-92) provided to hang fixture. Then
refer back to this sheet to continue assembling this fixture.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging the
fixture from the ceiling, and then installing the glass.
start here
4228
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

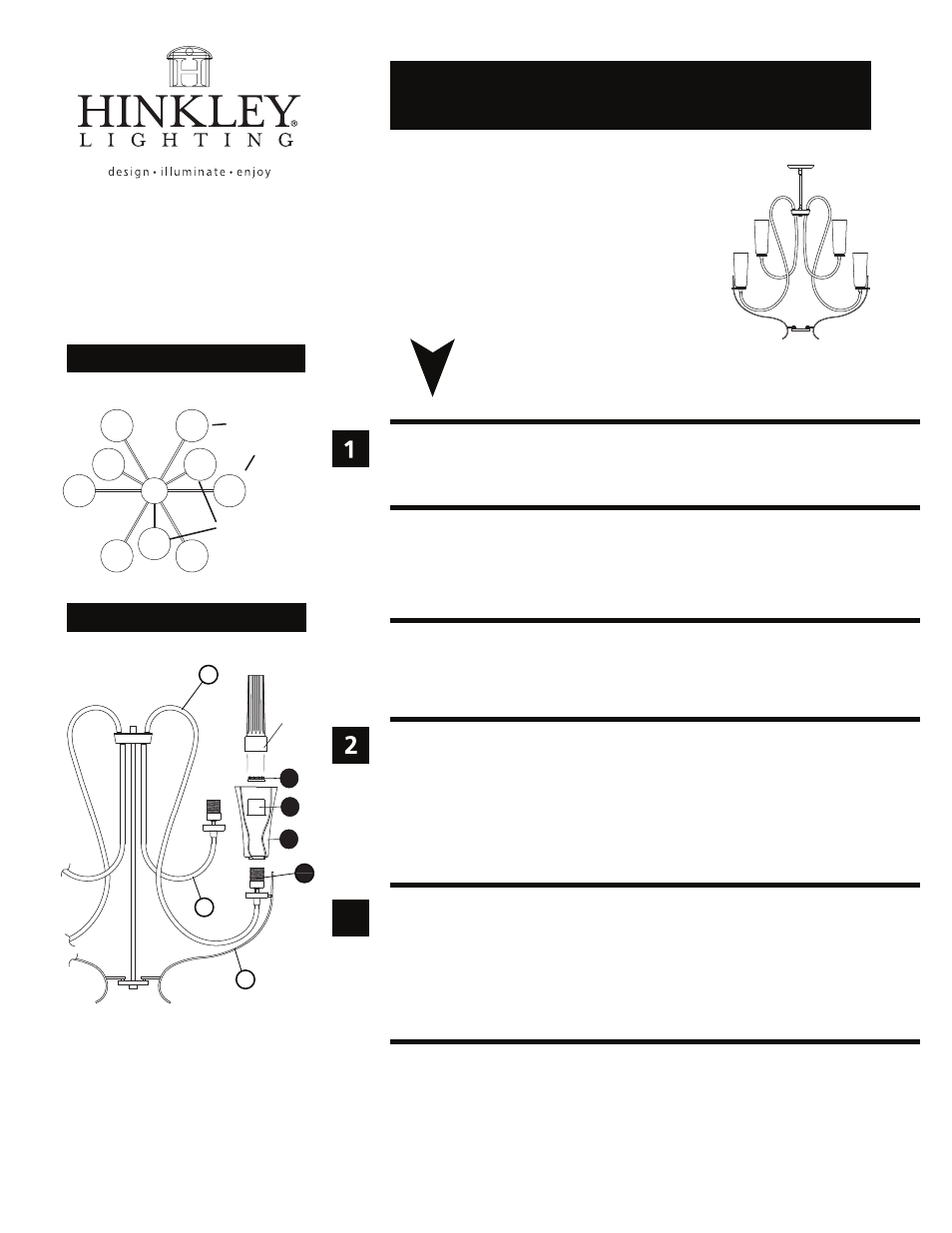

Drawing 1 - Arm Spread
3
B
B
B
A
A
A
A
A
A
60 degrees
apart
120 degrees
apart
01.01.13
3
2
4
1
A
B
slip end of
socket tool
over ring
Drawing 2 - Glass Installation
1. To install glass first unthread socket ring (4) and remove socket spacer (3) from
socket (1).
2. Slip glass (2) over socket (1).
3. Slip socket spacer (3) over socket, and thread socket ring (4) onto socket (1) using
socket tool provided.
4. Fixture can now be lamped accordingly.
