Hinkley Lighting PLANTATION 4887BB - Manual

assembly instructions
Family: Plantation Item No. 4887 BB/PZ
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the fixture glass.
start here
4887
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. Slip top crown (2) along wire and thread into top of main body assembly (1) - see
Drawing 1.
2. Spread arms (A) of the fixture until they are equally spaced apart and located in
between the uprights (B).
3. Please refer to the hanging instruction sheet (I.S. 19-50) provided to continue
installation of this fixture. Then refer back to this sheet to install glass.
1. To install glass, slip candle sleeve (4) over socket (C) - see Drawing 2.
2. Slip harp (5) onto top of candle sleeve (4).
3. Attach shade (6) on the top of harp (5).
4. Thread finial (7) into top of harp (5) and tighten.
5. To assemble center glass (8), take top crown assembly (9) and thread into coupler (D).
6. Attach center glass (8) to center bobesche (E) by threading in stud screws (10).
Note: DO NOT use tools to tighten stud screws (10). Over tightening may cause glass damage.

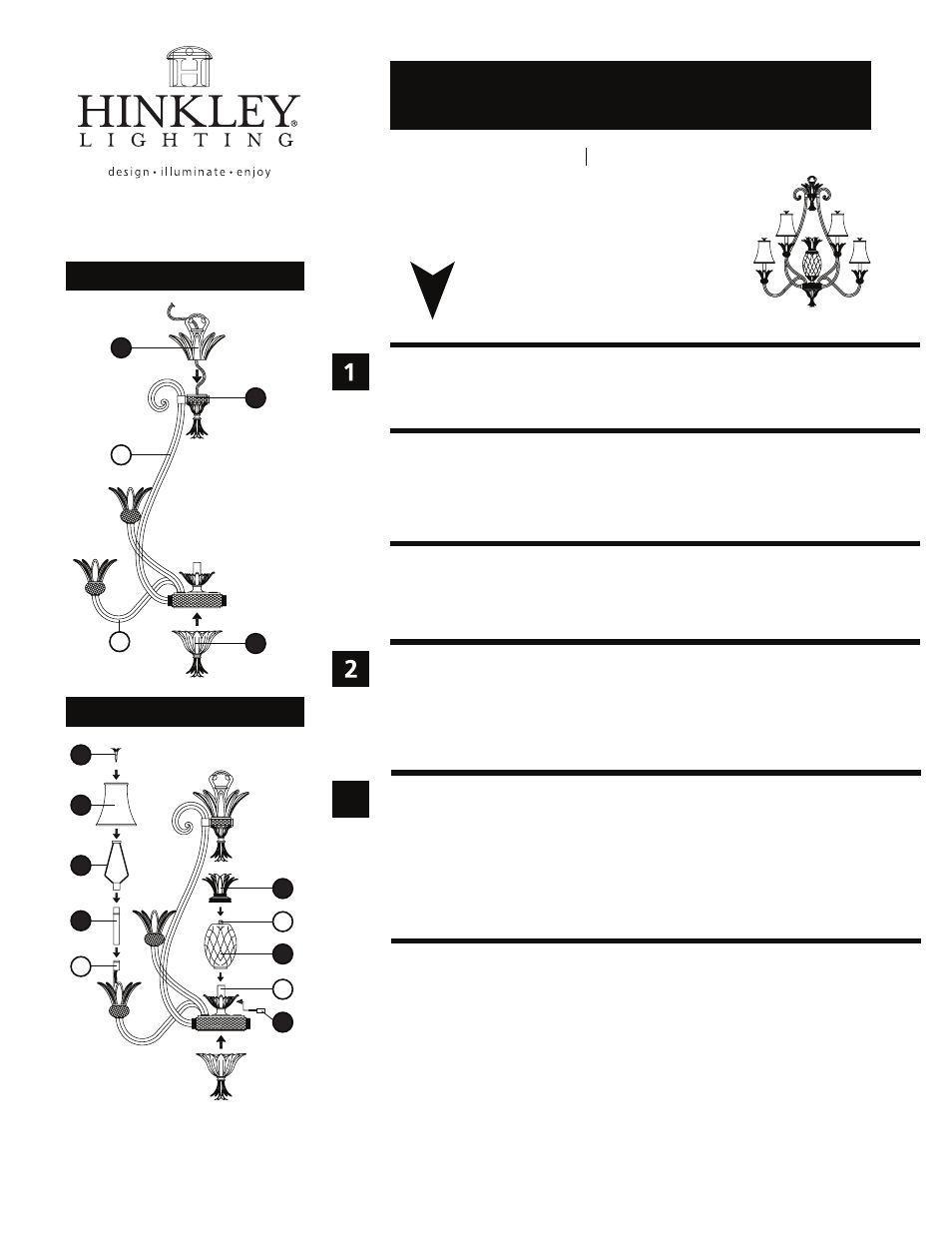

Drawing 1 - Fixture Assembly
Drawing 2 - Glass Installation
3
2
B
A
1
3
7
6
5
4
C
9
8
10
D
E
