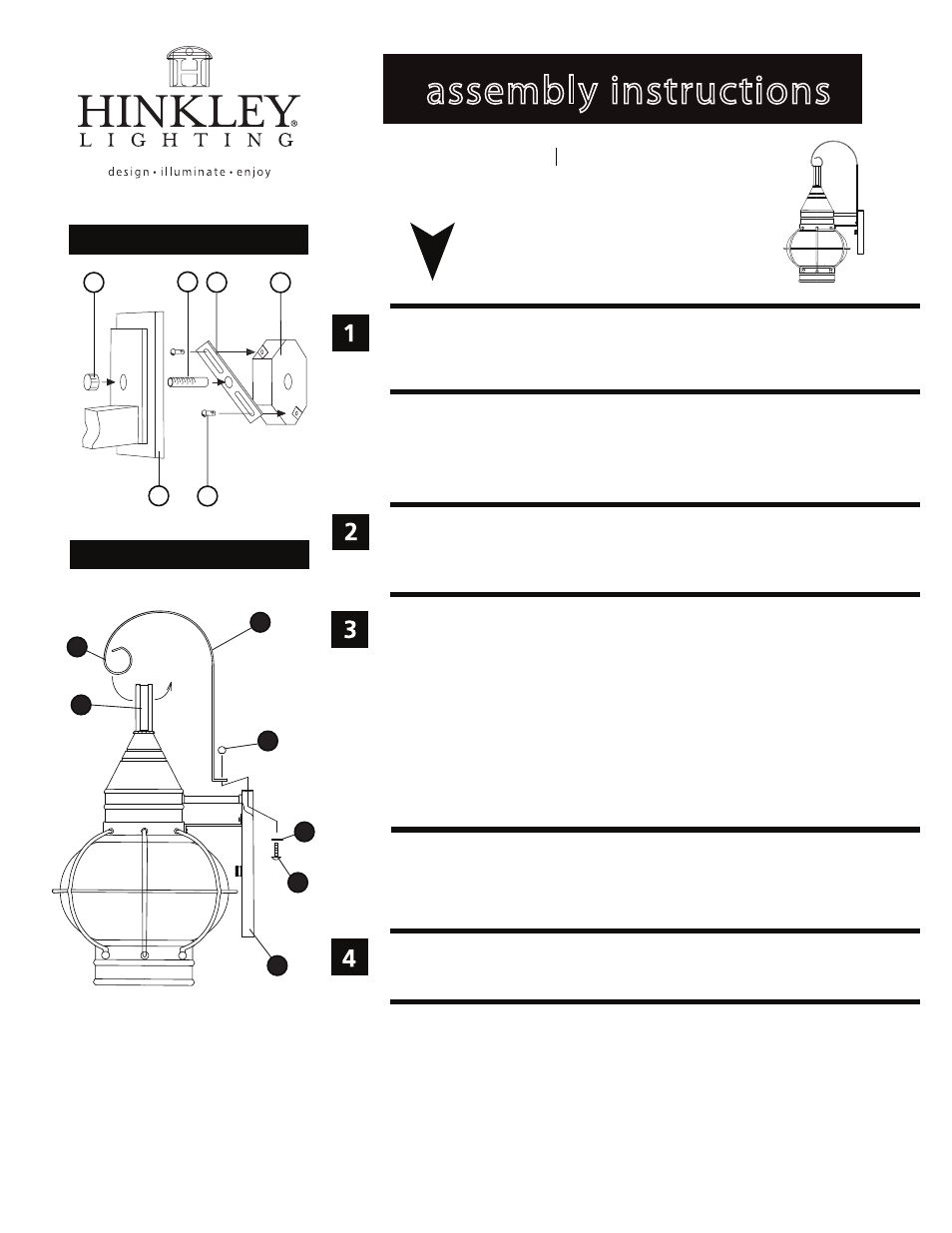

background image

Family: Cape Cod Item No. 2204 / 2205 / 2206

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first installing the
mounting hardware to the junction box, assembling the fixture,
making all necessary electrical connections, and then attaching the fixture

start here

2205

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Note: Maximum wattage for 2206 fixture is 60 watts per bulb.

Drawing 2 - Fixture Assembly

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections. Then
refer back to this sheet to continue installation of this fixture.

9.14.09

A

J

B

C

D

E

1. Prepare mounting strap (A) by threading 1” nipple (C) into the center hole of the
mounting strap (A) , approximately 1/4“ - see Drawing 1 .
2. Attach mounting strap (A) to junction box (J) using two screws (B) provided.

Drawing 1 - Fixture Mounting

assembly instructions

to the wall.

1. To assembly fixture, first remove ball knob (3), lockwasher (4) and screw (5)
from scroll (2).

2. Slip looped end (A) of scroll (2) through loop (1) found on top of cage
assembly.

3. Liine up hole in end of scroll (2) with hole in top of backplate (B) of cage
assembly.

4. Slip lockwasher (4) onto screw (5) and slip screw up through hole in top of
backplate.

5. Threead on ball knob (3) to secure scroll (2) to fixture.

2204

A

2

3

4

5

B

3

2206

Note: Maximum wattage for 2204 / 2205 fixture is 100 watts per bulb.

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
