Hinkley Lighting DUNHILL 4594RY - Manual

assembly instructions
Family: Dunhill Item No. 4594
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the glass.
start here
45
94
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
2. To assemble main body, take threaded tubing (2) and thread hex nut (3) down on
one end approximately 1/2” - see Drawing 2.
3. Thread tubing (2) into coupler (A) approximately 1-1/2” and tighten hex nut (3)
against coupler (A) to secure tube.
4. Thread hex nut (4) onto tubing (2) approximately 1-1/2”, then slip cap (5) on tubing
(2) with gasket material facing down.
5. Thread hex nut (6) onto tubing (2) and tighten up against cap (5).
6. Please refer to the hanging instruction sheet (I.S. 19) provided to hang this fixture.
Then refer back to this sheet to install the glass.
1. Prior to installing glass, fixture can now be lamped accordingly.
2. Slip glass (7) onto tubing (2) and hold in position - see Drawing 1.
3. Thread knurl nut (8) onto tubing (2) and tighten to secure glass.
4. Slip cap (9) onto tubing (2) and thread finial (10) onto end of tubing (2) and tighten.
5. To attach diffuser, remove ball knob with stud (12) from crossbar.
6. Place diffuser plate (11) on crossbar and line up holes and thread ball knob stud (12)
back in to crossbar to secure.

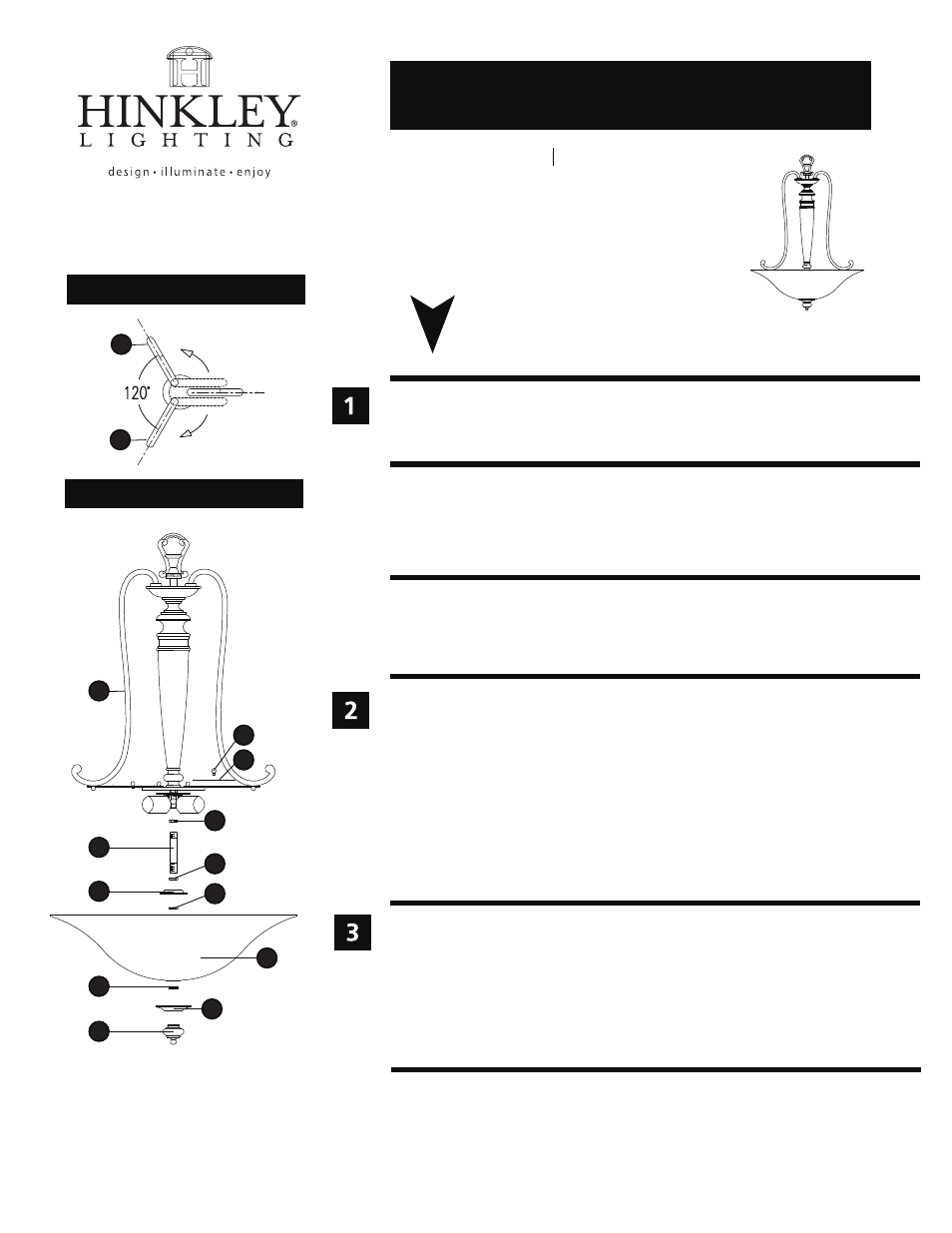

Drawing 2 - Fixture Assembly
1
11
12
2
5
8
3
10
10.11.10
7
9
4
6
Drawing 1 - Fixture Assembly
1. Rotate arms (1) attached to center column, until they are equally spaced 120
degrees apart - see Drawing 1.
1
1
