Hinkley Lighting MAYFLOWER 4166OB - Manual

assembly instructions
Family: Mayflower Item No. 4166 OB
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To assemble main body, slip center column section (2) along wire and thread it into
nipple (A) and tighten.Making sure holes (B) line up over the arm peg (C) - see
Drawing 1.
2. Attach the three uprights (3) to the fixture by sliding one end of the upright (3) into
the hole in the bottom of body (B) of center column (2).
3. Place bottom end of upright (3) over peg (C).
4. Please refer to the hanging instruction sheet (I.S. 19) provided to continue installation
of this fixture. Then refer back to this sheet to install glass.
1. To install glass, remove socket ring (5) from socket (D) - see Drawing 2.
2. Slip glass (4) over socket (D).
3. Thread socket ring (5) onto socket (D) and tighten until snug.
Note: Over tightening ring with a tool may cause damage to the glass.
4. Fixture can now be lamped accordingly.
*** The construction of this fixture will be accomplished by first assembling the
the main body of the fixture, making all necessary electrical connections,
hanging the fixture from the ceiling, and then installing the glass.
start here
4166
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

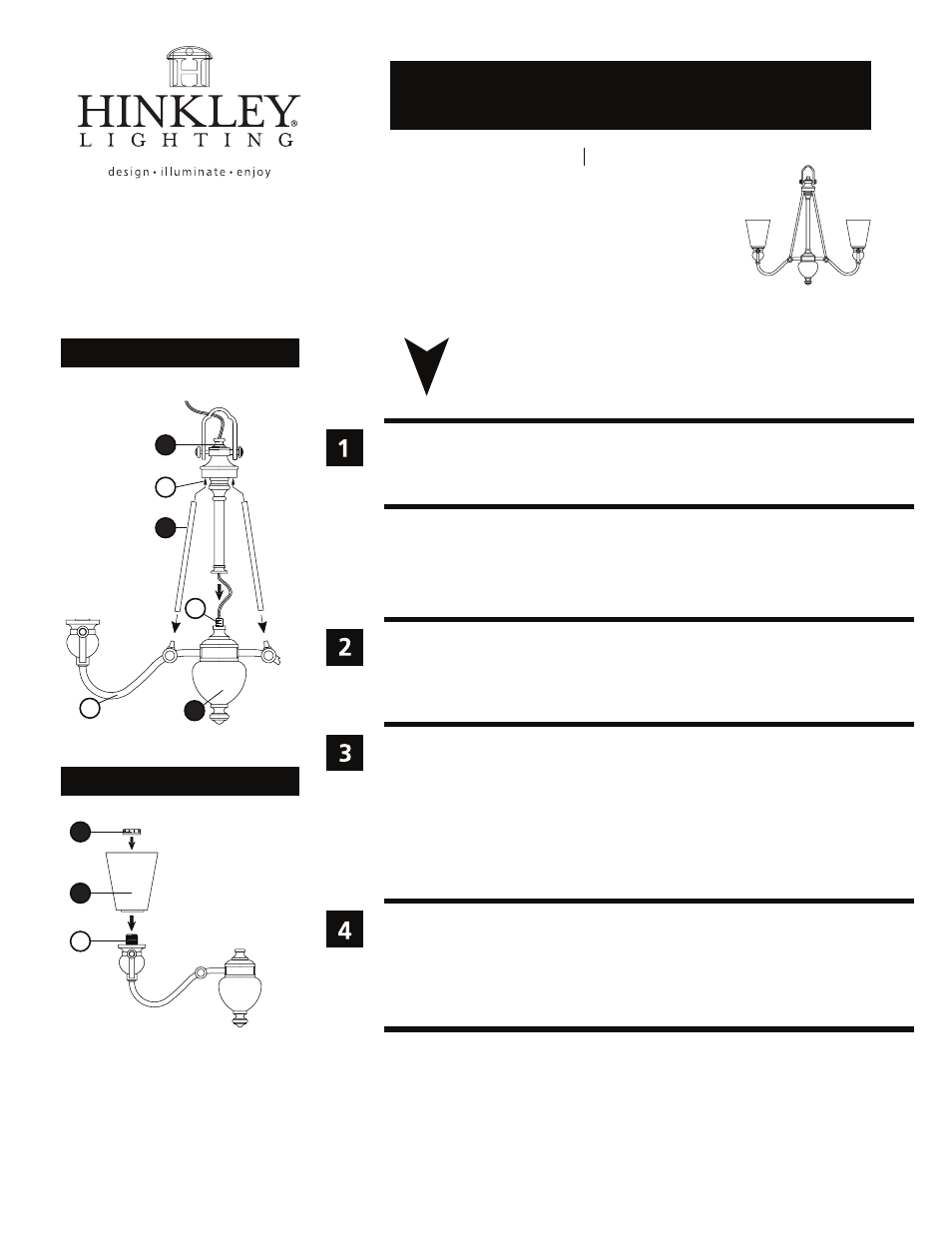

Drawing 1 - Fixture Assembly
Drawing 2 - Glass Installation
5
4
D
1
A
2
3
B
C
2.7.08
