assembly instructions

Family: Ashbury Item No. 5704 CM

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. To mount fixture, slip center hole of backplate (E) over nipple (C) and hold fixture in
position - see Drawing 1.
2. Thread decorative knob (D) onto end of nipple (C) and tighten to secure fixture.

*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall and then installing the glass.

start here

5704

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Note: Maximum wattage for 5704 fixture is 60 watts per G9 bulb.

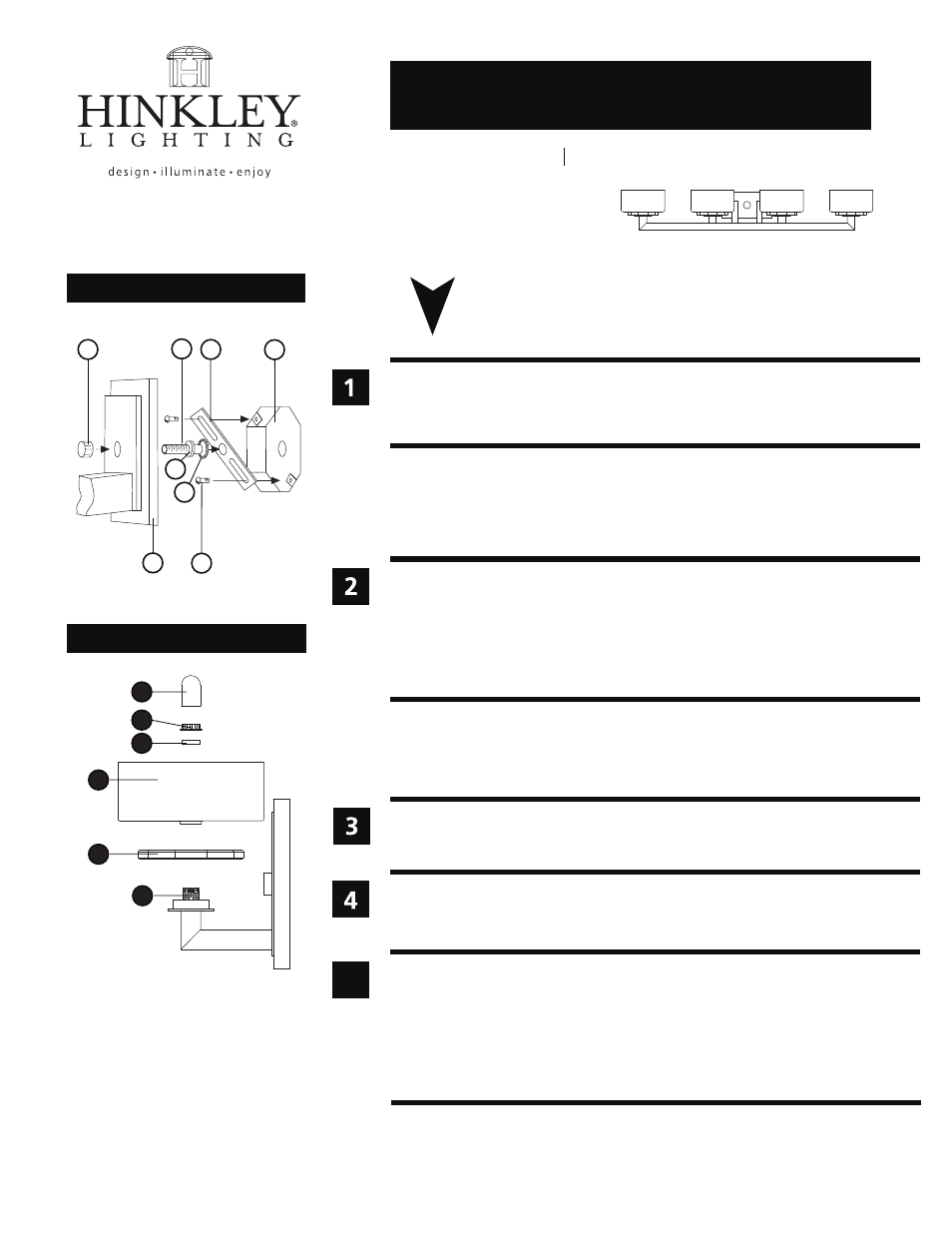

Drawing 1 - Fixture Mounting

Drawing 2 - Glass Installation

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.

5

12.29.08

1. To install glass, slip octagon crystal (1) over socket (2) - see Drawing 2.
2. Place glass (3) over exposed section of socket (2).
3. Slip spacer (4) and thread socket ring (5) onto socket (2).
4. Fixture can now be lamped accordingly.
5. Thread glass bulb shield (6) onto socket (2).
6. Repeat steps 1-5 for remaining glass.

1

3

4
5

6

2

A

J

B

F

F1

C

D

E

1. Prepare mounting strap (A) by threading 1-5/8” nipple into the center hole of the
mounting strap (A), approximately 1/4“.- see Drawing 1.
2. Attach mounting strap (A) to junction box (J) using two 1” screws (C) provided.
3. Slip lock washer (F1) over nipple (C) and thread hex nut (F) onto nipple (C).
4. Hex nut (F) can be tightened against mounting strap (A) after adjusting nipple (C) to
proper mounting lengths.

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
