Hinkley Lighting QUANTUM 54423 - Manual

assembly instructions
Family: Quantum Item No. 54423
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
start here
54423
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

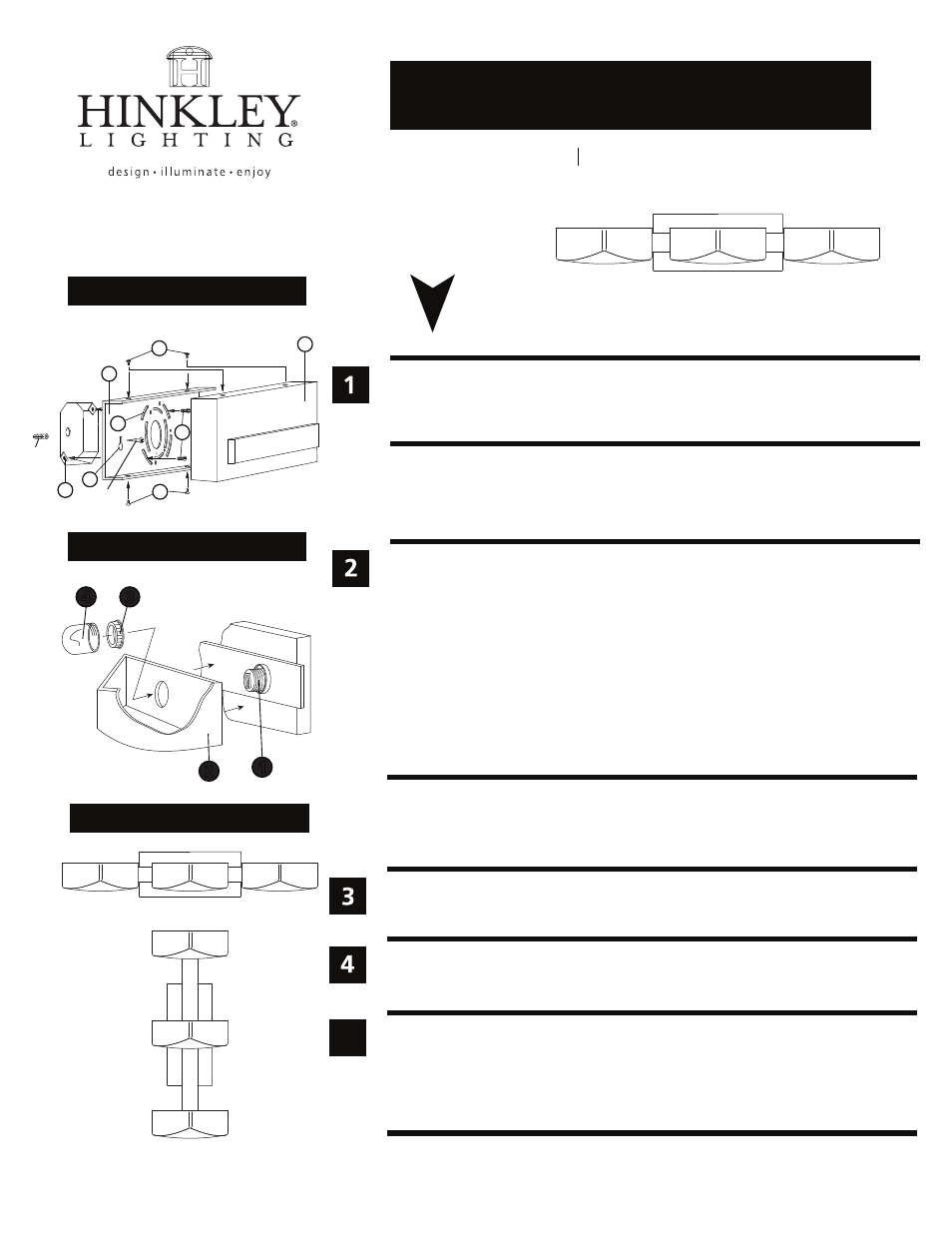

Drawing 2 - Fixture Assembly
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
1. Mount the fixture by sliding the back plate (B) over mounting plate (A) - see
Drawing 1.
2. Attach the back plate (B) to the mounting plate (A) using the screws (C).
06.01.13
Drawing 1 - Fixture Mounting
A
B
C
D
E
F
C
wall
anchor
anchor
screw
4. Additional wall anchors supplied can be installed at keyhole points (G).
G
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway, Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
1
2
3 4
*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
assembling the main body of the fixture, mounting the fixture to the wall,
either horizontally or vertically and then installing the glass.
Drawing 3 - Mounting Options
horizontal
vertical
1. To install glass, first slip hole in back of glass (2) over socket (1).
2. Hold in position and thread on socket ring (3) to secure glass.
3. Lamp fixture accordingly.
4. Thread bulb shield (4) onto socket (1).
NOTE: This fixture can be mounted horizontally or vertically. To mount fixture
vertically rotate mounting plate (A) 90 degrees so long edge is papallel to wall and
then follow the instructions below. Drawing 3 below shows line art of fixture in
vertical and horizontal position for reference.
1. Remove main mounting plate (A) from fixture back plate (B) by removing the four
flat head screws (C) - see Drawing 1.
2. Slide the wires from the junction box, through the large center hole, making sure
curved slots (D) line up with the threaded holes (E) in the junction box.
3. Using two 8-32 screws (F) attach the main mounting plate (A) to the junction box,
making sure side of mounting plate (A) is square to ceiling, if being mounted
horizontally.
