Family: Aurora Item No. 2282 MT

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. To install fixture glass, unscrew ball knobs (1) from studs (2).
2. Slip top roof assembly (3) off studs (2).
3. Unthread hex nut (4) located on center nipple (5) and remove disc (6).
4. Slip glass (7) into cage (8).
5. Slip disc (6) and thread hex nut (4) back onto nipple (5).
6. Fixture can now be lamped accordingly.
7. Slip top roof assembly (3) back onto studs (2) and secure with ball knobs (1).

*** The construction of this fixture will be accomplished by first installing the
fixture glass, making all necessary electrical connections, and then hanging the
fixture from the ceiling.

start here

2282

1. Please refer to the hanging instruction sheet (I.S. 19) provided to complete installa-
tion of this fixture.

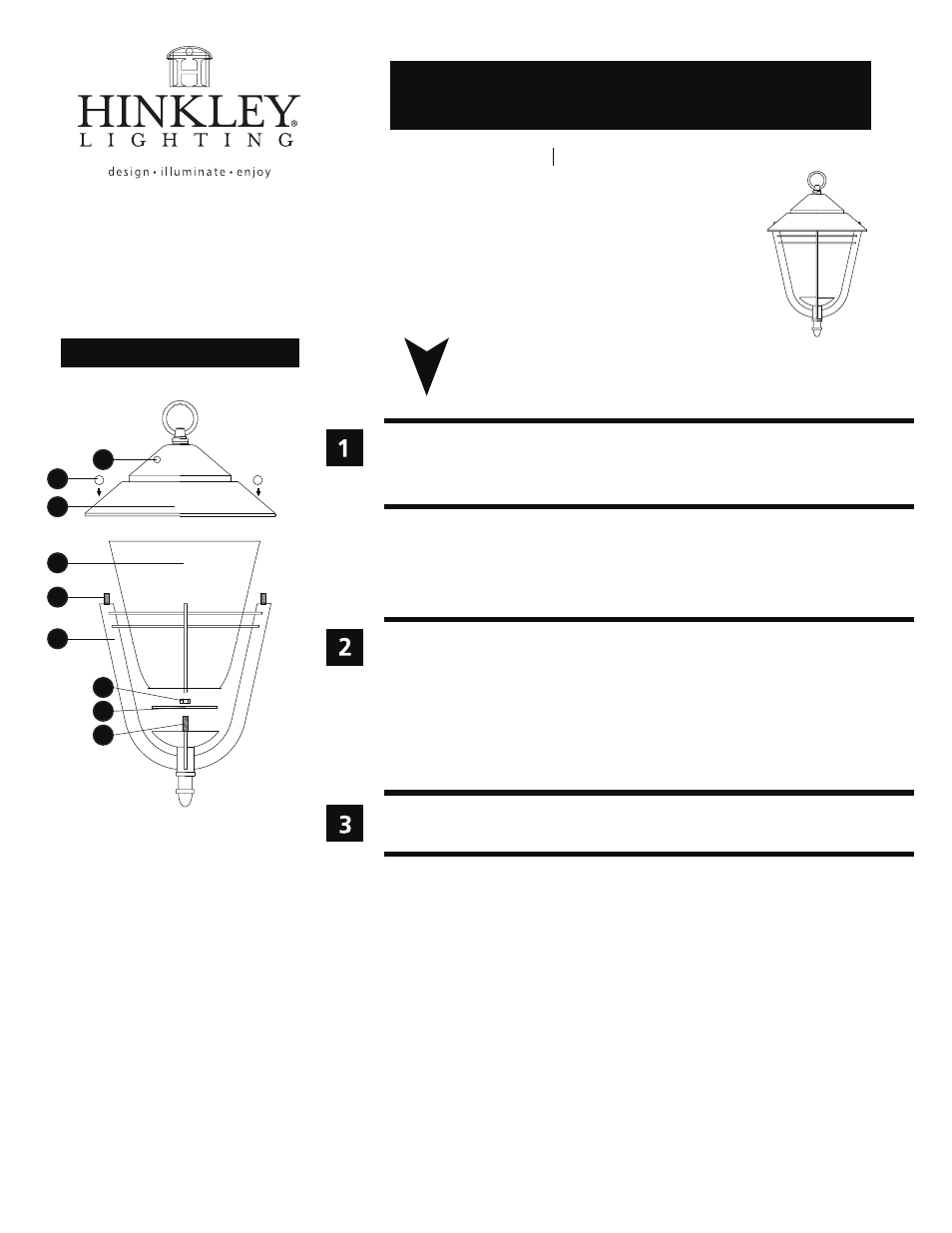

Drawing 1 - Fixture Assembly

1
3

3

5

6

4

2

7

8

2.7.08
