Hinkley Lighting ELEMENT 5224 - Manual

assembly instructions
Family: Element Item No. 5224 BN
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then installing the fixture glass.
start here
5224
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5

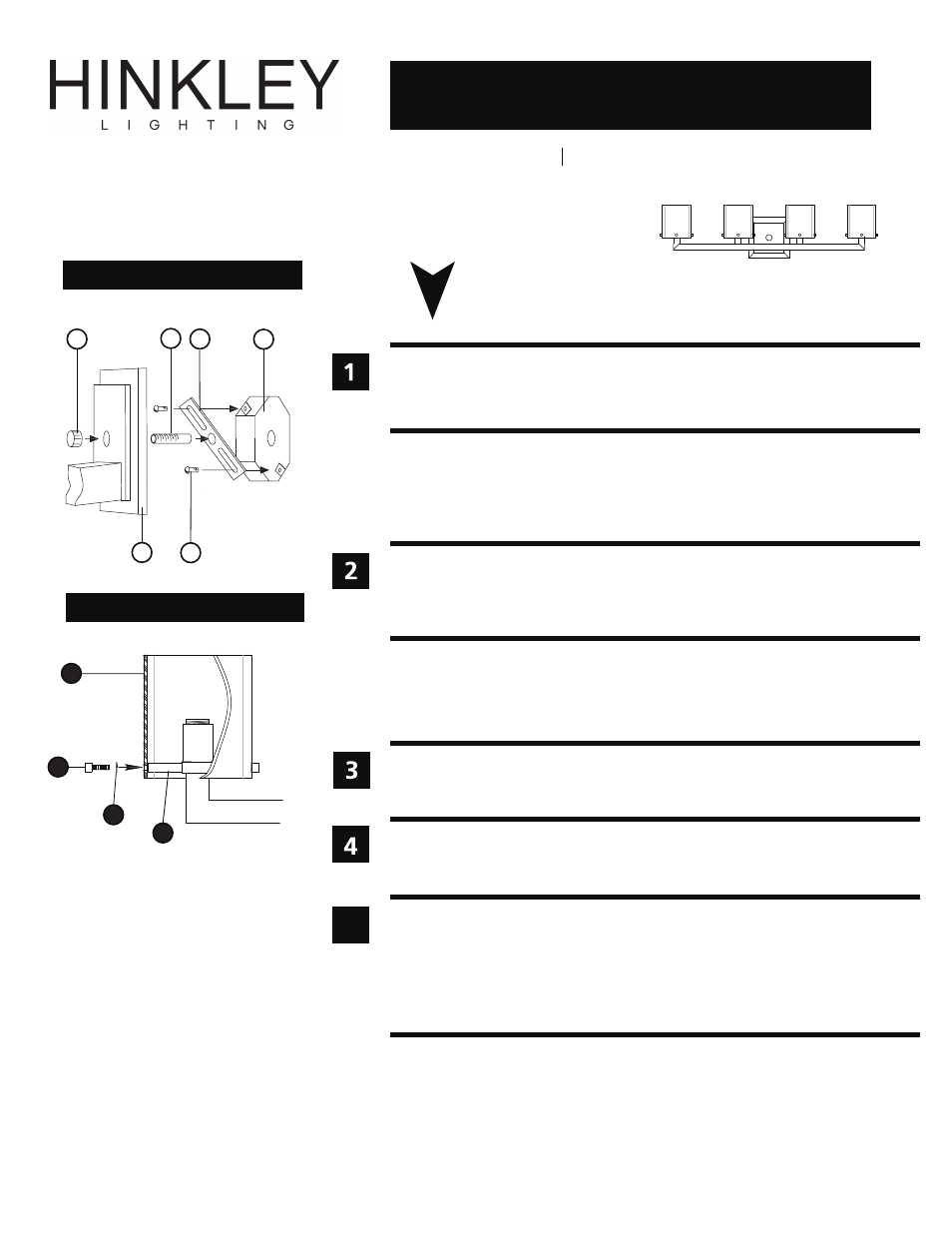

Drawing 1 - Fixture Mounting
10.28.10
A J
B
C D
E
1. Prepare mounting strap (A) by threading 1-5/8” nipple into the center hole of the
mounting strap (A), approximately 1/4“.- see Drawing 1.
2. Attach mounting strap (A) to junction box (J) using two 8-32 screws (C). [NOT PROVIDED]
1. To mount fixture, slip center hole of backplate (E) over nipple (C) and hold fixture in
position - see Drawing 1.
2. Thread decorative knob (D) onto end of nipple (C) and tighten to secure fixture.
Drawing 2 - Glass Installation
3
1
2
4
1. Install the glass by first slipping glass (3) around cross bars (1) and lining up the holes
in the glass (3) with the holes in the end of the cross bars (1) - see Drawing 2.
2. Slip ball knob stud (2) through plastic washer (4) and hole in glass (3) and thread it
into end of cross bar (1).
3. Repeat step 1 and 2 to attach glass onto the remaining light fixtures.
4. Fixture can now be lamped accordingly.
