Carabel

FR44623BCH

CARABEL

ASSEMBLY INSTRUCTIONS

Assembly of this fixture will be accomplished by assembling the main body of the

fixture, installing the mounting hardware to the junction box, making all necessary

electrical connections and then hanging the fixture.

SAFETY WARNING:

Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply off during installation. If new wiring

is required, consult a qualified electrician or local authorities for code requirements.

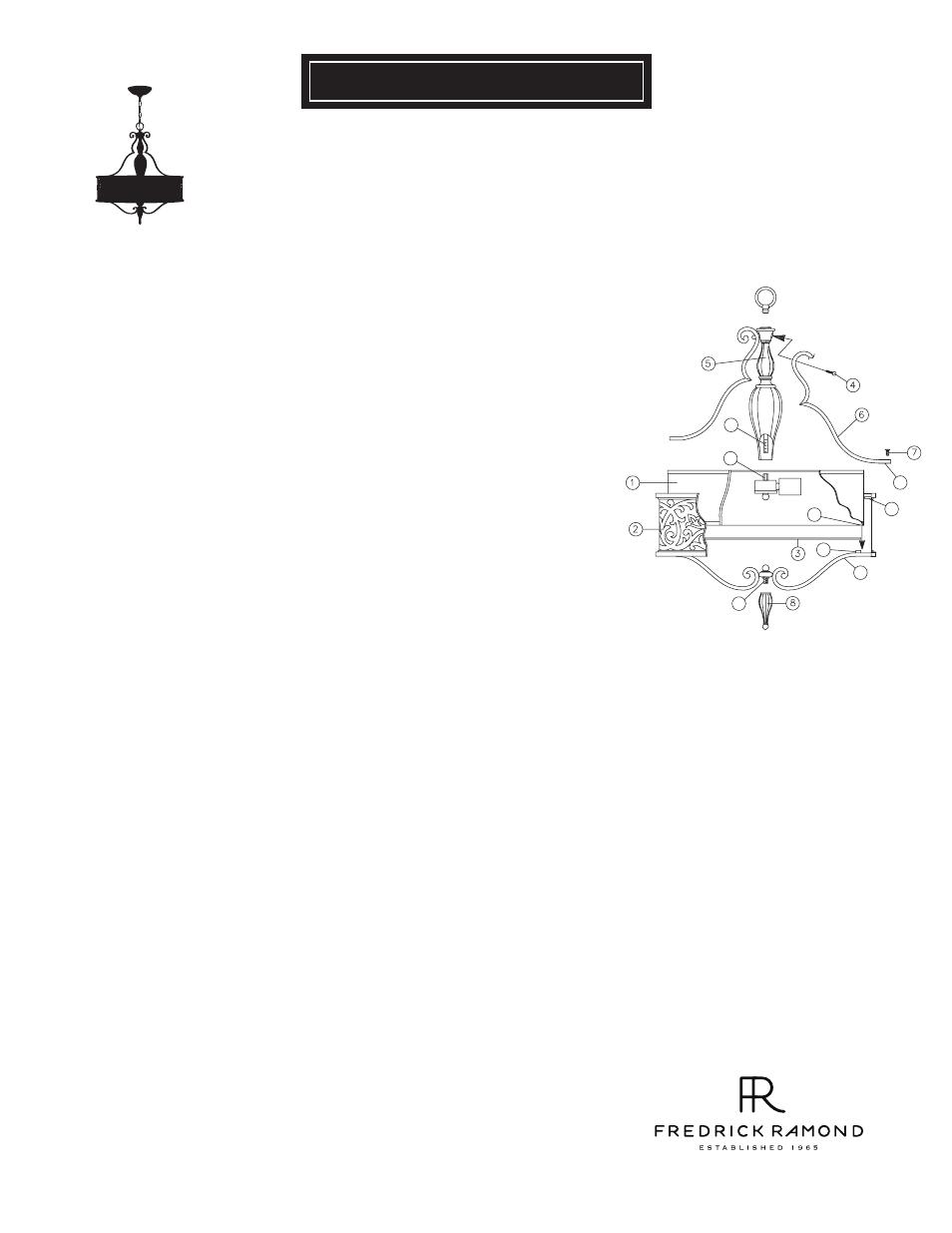

STEP 1

Slip shade (1) into the cage assembly (2). Making sure the inside edge of the

shade (a) are located by the 4 tabs (b) on the lower cage arms (c).

Lay acrylic lens (3) onto tabs (b).

Remove ball knobs with studs (4) from top of center column (5).

Attach top of scroll arms (6) to the center column assembly (5), using ball knob

studs (4).

Remove screw (7) from tabs (e) located at the top of cage assembly (2).

Slip center column (5) with attached scroll arms (6) into cage assembly (2)

aligning the holes (d) in the end of the scrolls, with the holes (e) located on tabs

in the cage assembly.

Slip screws (7) through the hole (d) in the end of scroll (6) and thread it into tab
(e), repeat for remaining scrolls, center column (5) is now secured to the cage

(2).

Thread bottom finial (8) onto threaded stem (f) located at the bottom of the

fixture.

Fixture can now be lamped accordingly.

STEP 2

Refer to Hanging Instruction Sheet [FRIS19] to hang fixture and complete assembly.

Bulbs:

100W MED.

12.1.09

800.421.3517 WWW.FREDRICKRAMOND.COM

[DRAWING 1]

Slip center stem (g) along wire and thread it into coupler (h) approximately 3/8”,
now slip center column (5) over center stem (g).

Slip loop (i) along wire and thread onto end of center stem (g) to secure center
column (5).
