Start here, Assembly instructions

assembly instructions

Item No. 3164

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first, installing the
mounting hardware to the junction box,determining stem lengths required,
installing the shade and lens, and then hanging the fixture from the ceiling.

start here

3164

01.01.13

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

1. Fixture can be lamped accordingly at this time.

2. Slip acrylic lens (5) into center of shade (2). Reach through top of shade and thread
knurled barrel nut (E) onto end of tube (F) located on the center crossbar (C) of main
body assembly (1) and tighten - see Drawing 2.

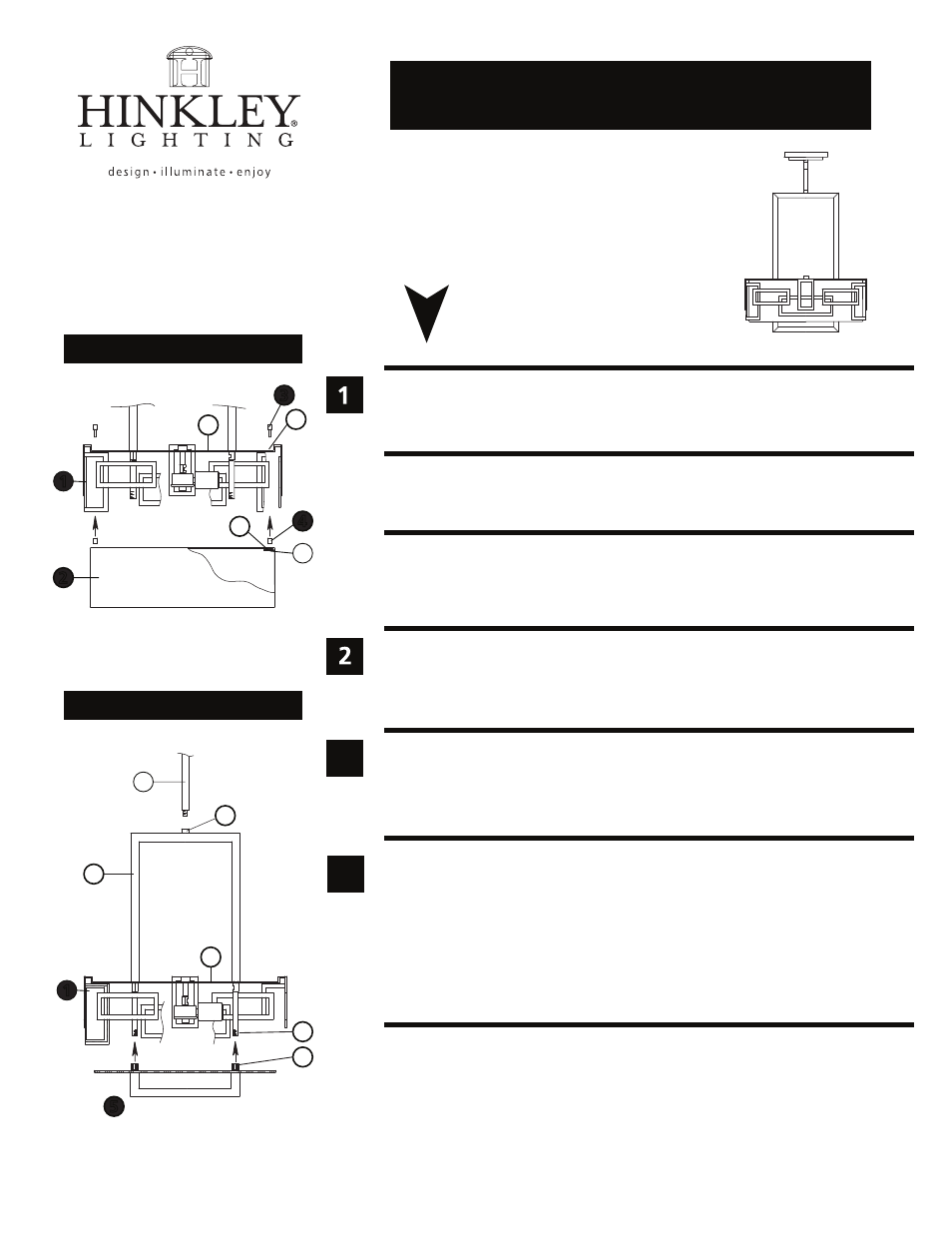

Drawing 1 - Fixture Assembly

Drawing 2 - Fixture Assembly

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com

1. To attach shade (2) slip shade inside main body assembly (1) and line up holes (A)
in shade tab with holes (B) in crossbar (C) of main body assembly.

2. Slip screw (3) through hole (B) and slip spacer (4) over screw (3), thread screw (3)
into hole (D) of shade tab and tighten to secure shade.

1. It is now necessary to determine the totoal lenghts of stem (H) you will require to
hang your fixture at the desired height. Fixture is supplied with a 4”, 6”, 12”, and 24”
stem.

2. After determining the stem lengths needed, slip the first stem (H) (longest
recommended to be attached first) along wire and thread the first stem into coupler

(G) located at top of rectangular arch (I) - see Drawing 2, all subsequent stems (H)
thread into each other.

3. Please refer to the hanging instruction sheet (IS 19-91) provided to complete
the installation of the fixture.
