Hinkley Lighting RICHMOND 1487 - Manual

Family: Richmond
I.S. 148X
glass installation
star t here
I.S. 148
1

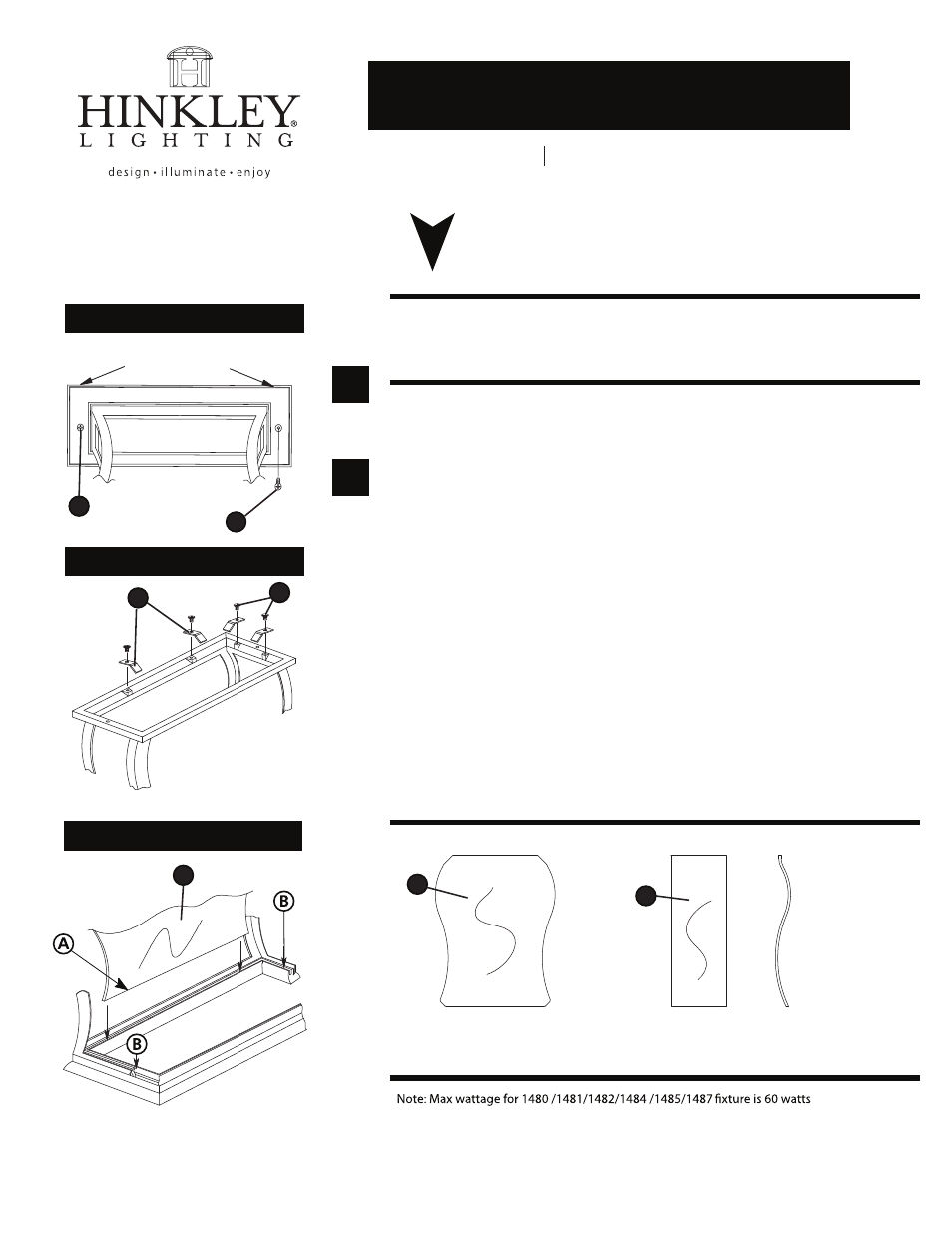

Drawing 1 - Glass Installation 1. To install the glass is first necessary to remove the roof from the
fixture. this is accomplished by remove the 2 phillip head screws (1),
located under the roof ledge -see Drawing 1.
1
2
1. First remove the glass clips (2) from the top of the cage, by
removing phillips head screws (3). Set screws and clips aside for use
later - see Drawing 2.
2. It is necessary to install glass panels in a particular order.
3. First install the large panel of glass (4) by slipping the glass into the
cage. Tilting panel back slightly and slipping the bottom edge (A)
into slot (B) located at the bottom of the cage - see Drawing 3.
4. Install glass clips (2) removed earlier to secure glass in cage.
5. Continue installing glass panels as outlined above, in this order.
Large panels (4) first. Panels are numbered 1 and 2.
6. Small side panels (5) are installed using the same method as the
large panels. The side panels are number 3 and 4.
Make sure to match the curvature of the glass to the cage, before
slipping them in.
6. After all the glass in installed. Fixture can be lamped accordingly
and the roof installed.
Drawing 2 - Glass Installation
Drawing 3 - Glass Installation
large flat panels
installed first
(panel nos.1 and 2) curved side
panels installed last
(panel nos. 3 and 4)
match
curve
with
cage
1
ROOF LEDGE
1
3
2
4
4
5
1481 / 1482 / 1487
01.01.12
I.S. 148
2
I.S. 148
7
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
