Hinkley Lighting MARION 4474TB - Manual

assembly instructions
Family: Marion Item No. 4474
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the shade.
44
74
Note: Maximum wattage for 4474 fixture is 60 watts per bulb.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

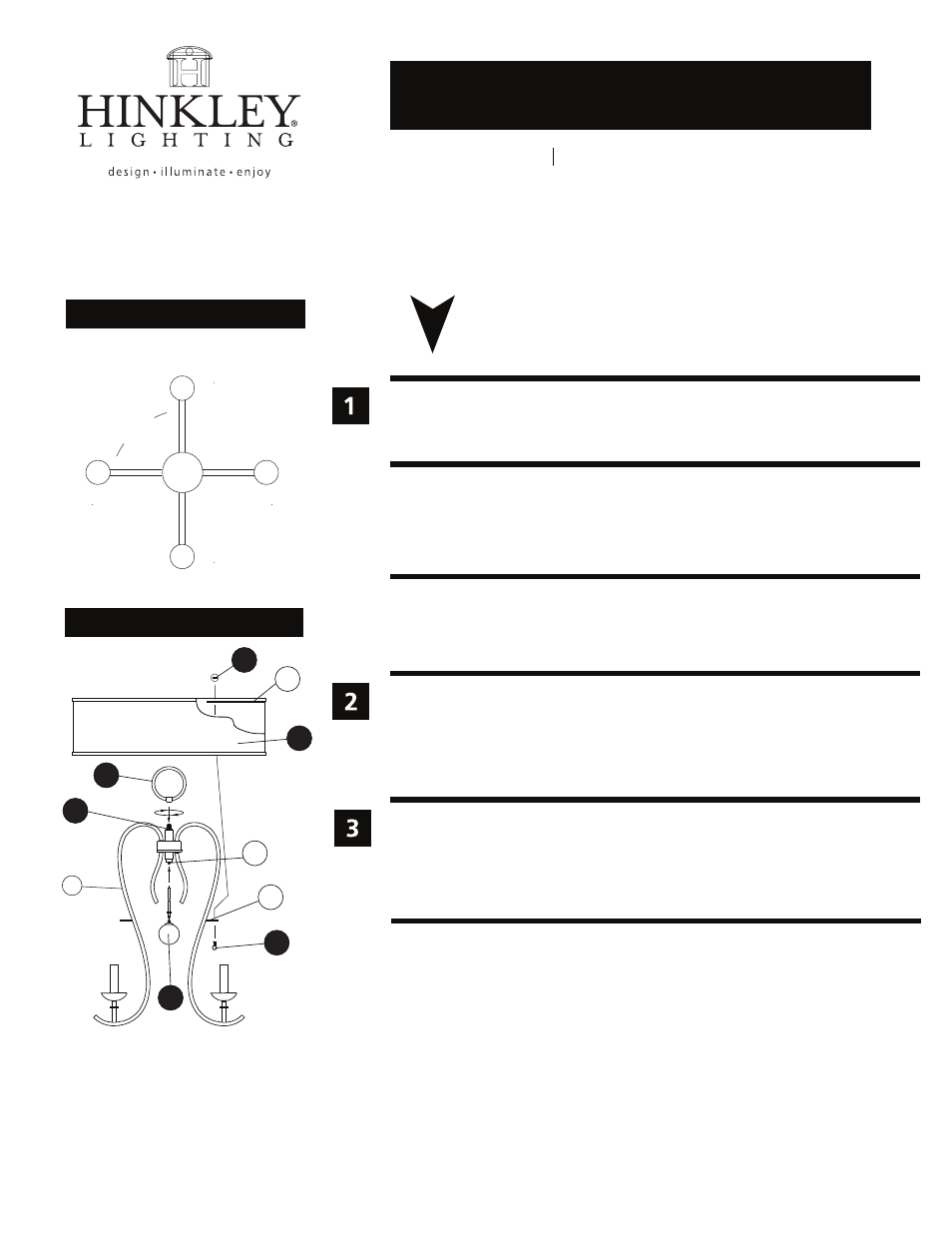

Drawing 2 - Fixture Assembly
06.01.11
1. Rotate arms (A) until they are approximately 90 degrees apart - see Drawing 1.
2. Slip loop (1) along wire and thread onto tube at top of center column (2).
3. Please refer to hanging instruction sheet (I.S. 19) provided to hang this fixture.
Then refer back to this sheet to install shade and crystal.
1. To install crystal pendant (3) hook onto small loop (B).
2. To install shade (6), slip shade onto fixture and align hole in tab (C) of shade with
holes in tab (D) of fixture arm.
3. Slip screw (4) through holes in shade tab and arm tab and thread on ball knob (5)
to secure shade. Repeat for remaining tabs.
1
3
C
4
5
6
2
A
A A
A
A
90º
Drawing 1 - Fixture Assembly
B
D
start here
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
