Hinkley Lighting CONGRESS 3134 - Manual

assembly instructions
Item No. 3134
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first determining the length of
stem required, mounting the attaching strap to the junction box, making all necessary
elctrical connections, hanging the fixture from the ceiling, and then installing the glass.
star t here
Note: Maximum wattage for 3117 fixture is 100 watts per bulb.
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. Determine the overall length you will need the assembled fixture to be.
2. Determine what stems will be needed to achieve the overall length you require.
(Additional stems are available and can be ordered. Ask your local Hinkley Lighting representa-
tive or visit www.hinkleylighting.com for information.)
3. Install stems by slipping them onto the supply wire of the fixture, threaded end up, and
threading them together -see Drawing 3.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections. Then refer back to this
sheet to continue installation of this fixture.
1. Install screws (A) into mounting plate (B) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the canopy (E) - see Drawings 1 and 2.
2. Attach mounting plate (B) to junction box (J), using screws (G) provided and then slip supply
wires through large center hole.
1. Hang the fixture by slipping canopy (D) over screws (B) in the mounting strap - see Drawing 2.
2. Thread on ball knobs (E) onto the end of screws (B) and tighten to secure fixture to ceiling.
1. To install glass, unthread knurled knob (2) in bracket (1) until glass can slip into brackets - see
Drawing 3.
2. Lamp fixture accordingly at this point.
3. Slip glass (3) into brackets (1) and hand tighten knurled knobs (2) to secure glass.

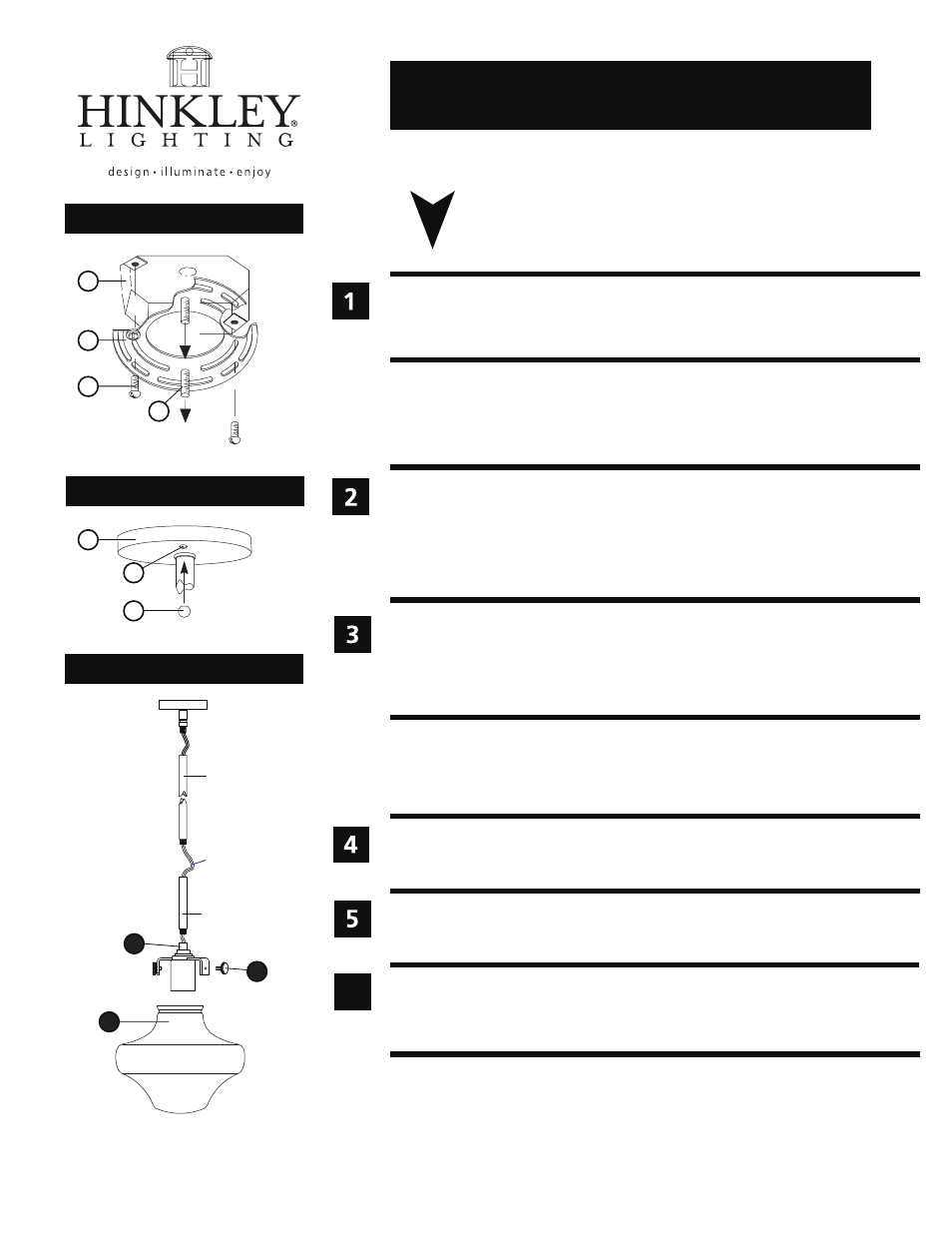

Drawing 2 - Fixture Mounting
Drawing 1 - Strap Detail
Drawing 3 - Glass Installation
6
J
B
G
D
C
E
A
01.01.12
3
2
1
stems
stems
wire
