assembly instructions
Family: Marcellina Item No. 4408 GR
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To assemble fixture, slip loop (1) along wire and thread onto threaded tube (C) at the
top of fixture (2) - see Drawing 2.
2. Rotate arms (A) until they are equally spaced 72 degrees apart - see Drawing 1.
3. Rotate arms (B) until they are equally spaced 36 degrees apart .
4. Slip candle sleeve (3) over each socket (D) - see Drawing 2.
5. Slip glass bobesche (4) over candle sleeve (3).
6. Slip glass cup (5) over each candle sleeve (3).
7. Thread large crystal ball (6) onto threaded tube (E), located in the center of the fixture.
8. Fixture can now be lamped accordingly.
9. Please refer to the hanging instruction sheet (I.S. 19-50E) provided to hang fixture.
Then refer back to this sheet to continue installation of this fixture.
1. To attach crystals, thread the remaining small crystal ball (7) onto threaded tube (F)
at the bottom of the fixture - see Drawing 2.
2. Hang crystals (8) from areas indicated.
*** The construction of this fixture will be accomplished by first rotating the fixture
arms into the correct position, assembling the basic fixture, installing the mounting
hardware, making all necessary electrical connections, mounting the fixture to the
ceiling and then hanging the crystals.
start here
4408
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

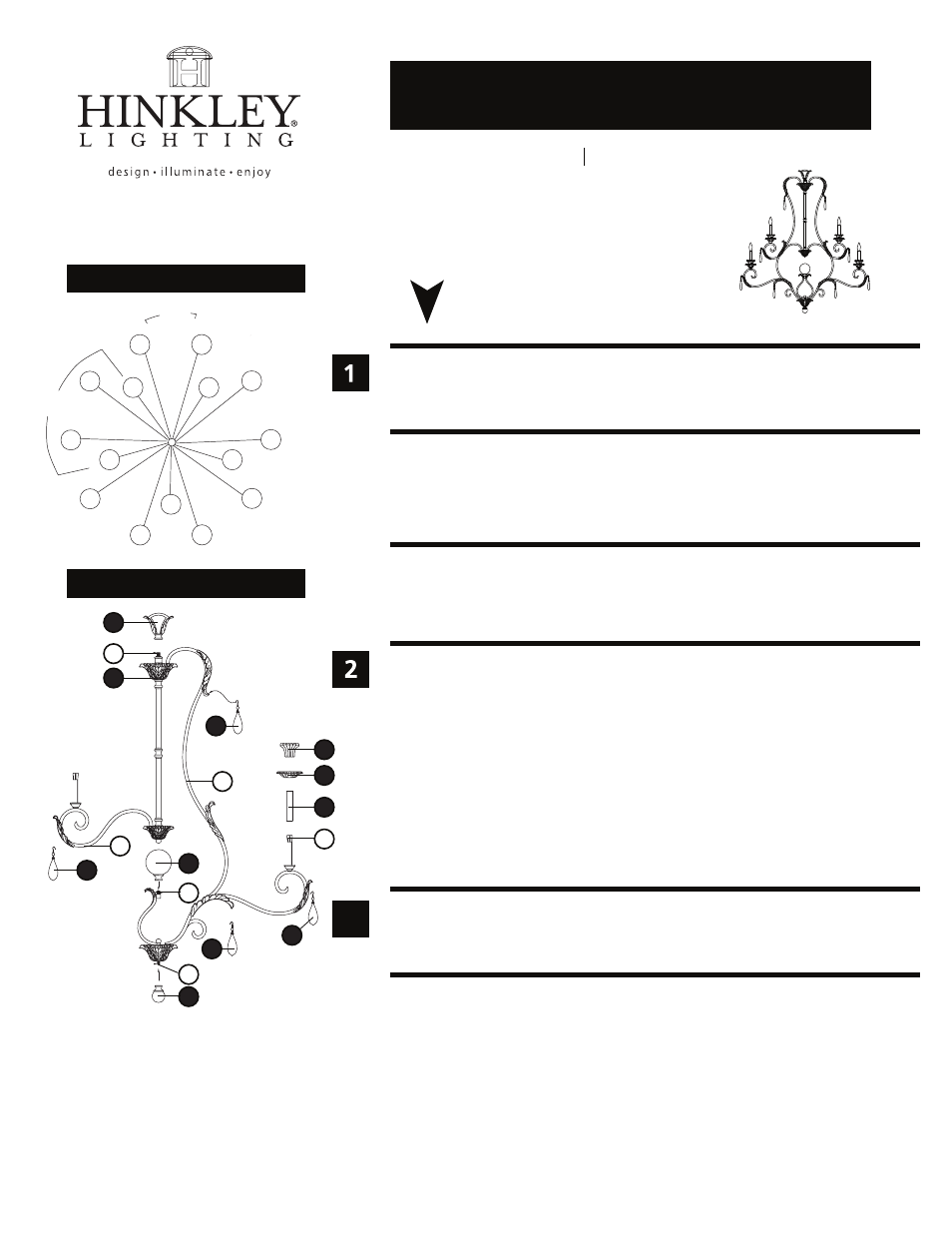

Drawing 1 - Fixture Assembly
Drawing 2 - Fixture Assembly
3
1
5
2
8
8
8
8
C
12.29.08
A
A A
A
A
B
B
B
B
B B
B
B
B
B
36º
72º
4
3
D
A
B
6
E
7
F
