Hinkley Lighting MONDRIAN 4577KZ - Manual

assembly instructions
Family: Mondrian Item No. 4577 KZ
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. Hang the fixture by slipping the holes (D) in the canopy, over the screws (B) in the
mounting strap - see Drawing 2.
2. Thread on ball knobs (F) to secure fixture to the ceiling.
*** The construction of this fixture will be accomplished by first determining the
length of stem required, mounting the mounting strap to the junction box, making
all necessary electrical connections, hanging the fixture from the ceiling, and then
installing the glass.
start here
4577
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. Prepare gem strap (A) for mounting by threading two screws (B) provided into
back of gull wing bracket of gem strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the canopy (E) - see Drawings 1 and 2.
3. Mount gem strap (A) to junction box (J), using the two 1” screws (C) provided.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
1. Determine the overall length you will need the assembled fixture to be.
2. Determine what stem will be needed to achieve the overall length you require.
(Additional stems are available and can be ordered. Ask your local Hinkley Lighting
representative or visit www.hinkleylighting.com for information.)
3. Install stems by slipping them onto the supply wire of the fixture, threaded end up,
and threading them together - see Drawing 3.

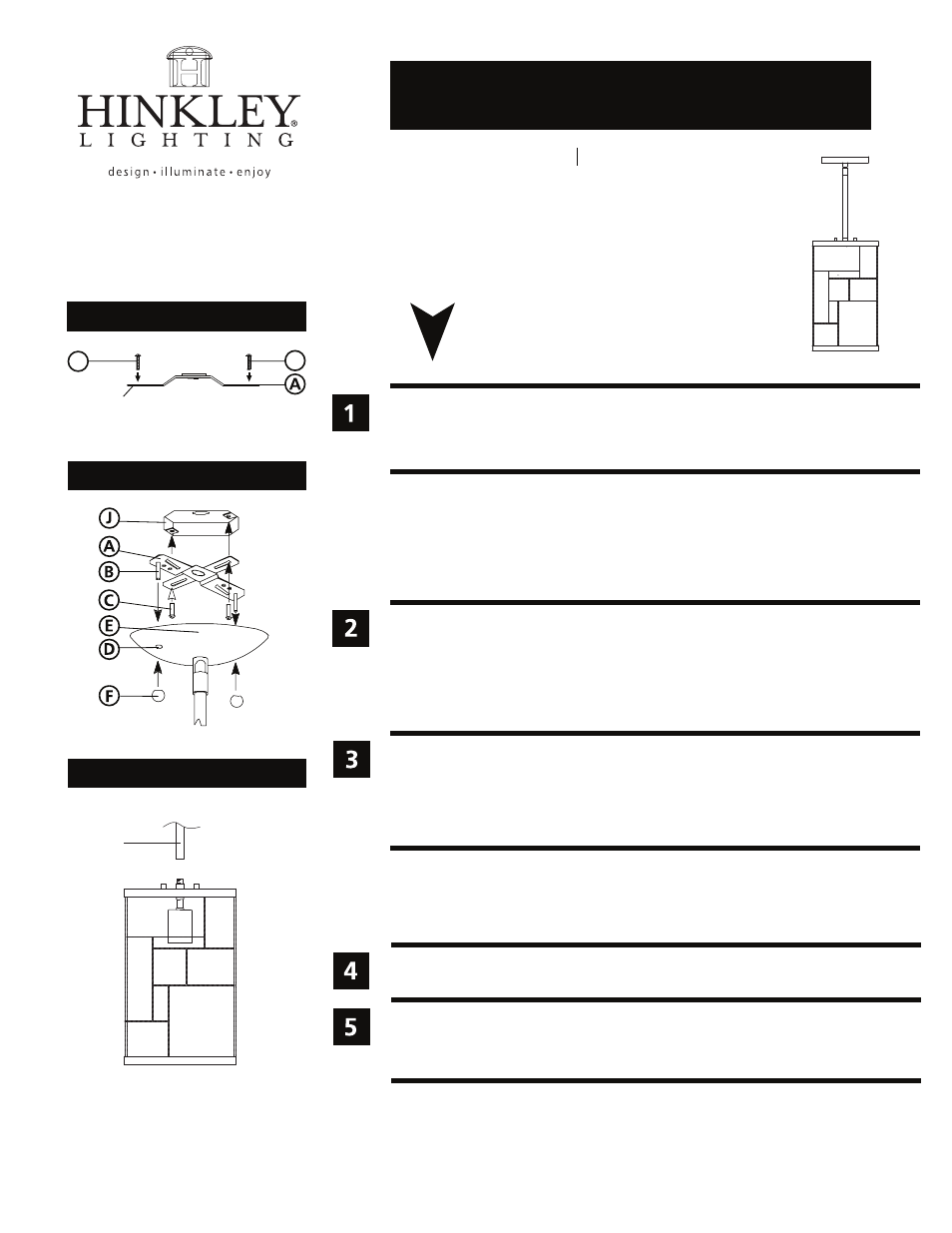

Drawing 2 - Fixture Mounting
Drawing 3 - Fixture Assembly
Drawing 1 - Strap Detail
B
(side view)
gull wing
bracket
B
10.29.09
stem
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
