FR43913 / 43914 SLF
ASSEMBLY INSTRUCTIONS
The construction of this fixture will be accomplished by first assembling the main body
of the fixture, making all necessary electrical connections, hanging the fixture from the
ceiling and then installing the fixture shade.
SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]
and any additional directions. Turn power supply off during installation. If new wiring
is required, consult a qualified electrician or local authorities for code requirements.
STEP 1
Note: It will be necessary to determine the length of rods you will require to hang your
fixture at the desired height. After this has been established, please follow the
instructions below.
1 Assemble the rods (R) by slipping them into the wire. Thread the first rod into
the coupler (C) located at the top of the fixture - See Drawing 1.
2 Continue adding rods (R) until desired length has been reached.
STEP 3
Refer to Hanging Instruction Sheet [FRIS19-91] to hang fixture.Then refer
back to this sheet to continue fixture installation.

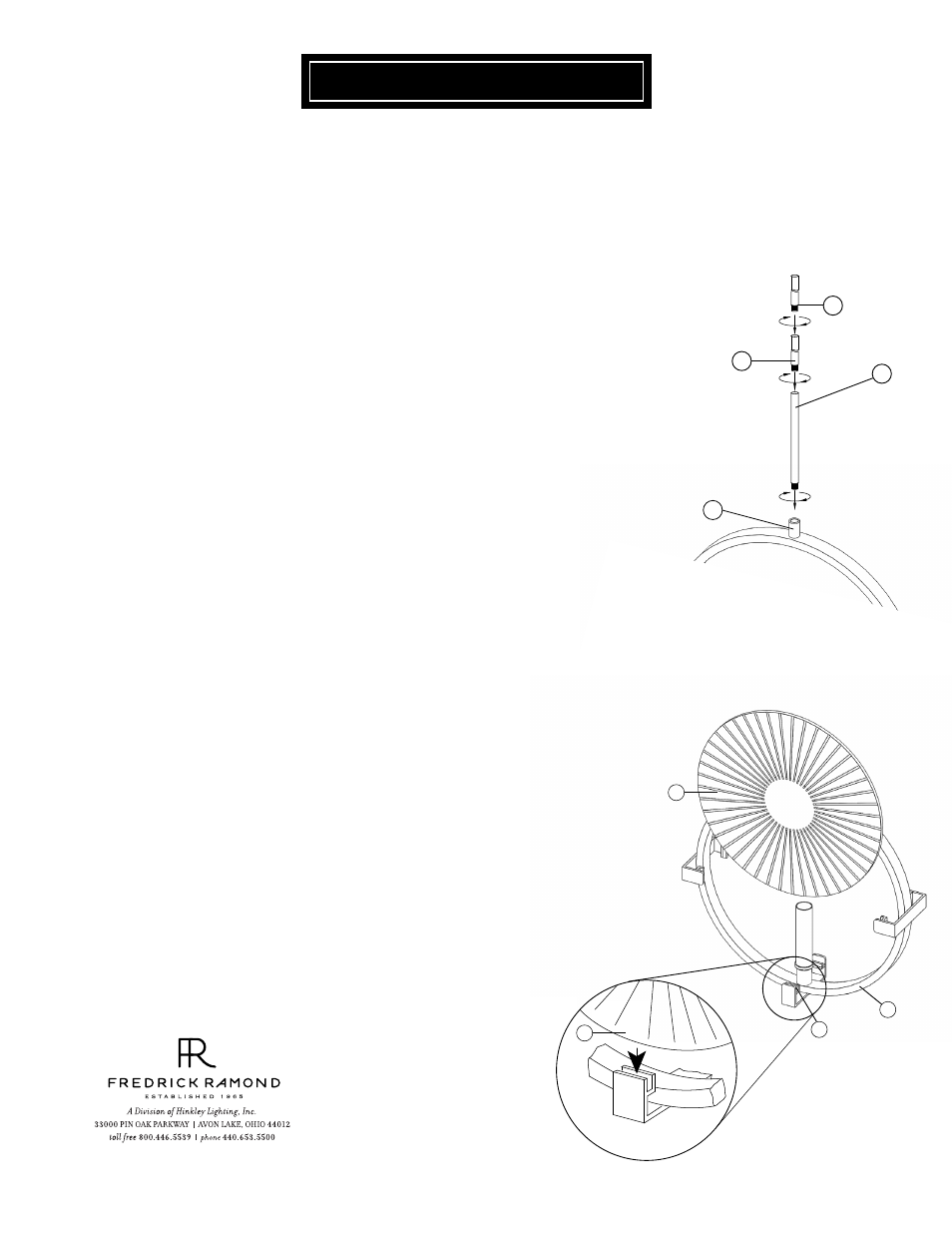

[DRAWING 1]
Replacement Parts: GLASS:
[DRAWING 2]
STEP 2
FITURE NO. FR43913SLF - R43913GL
R
R
C
R
note: It is recommended that a 12” rod (R) be added first.
HELIOS
FITURE NO. FR43914SLF - R43912GL
2 1
1 To install glass (1), slip glass between support clips (2) located on the glass cradle
(3).
Note: Fixture should be lamped accordingly at this point before proceeding.
Install second piece of glass in same manner. 2
1
3
