Hinkley Lighting FLYNN 5824BH - Manual

assembly instructions
Family: Flynn Item No. 5824 BH
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
1. To install glass, remove barrel knob (2) from both ends of center bar (3), located
between the two arms (1) - see Drawing 2.
2. Slip hole in back of glass (4) over socket.
3. Slip spacer (5) over socket and thread socket ring (6) onto socket to secure glass (4).
4. Replace center bar (3) and secure it between arms (1), with barrel knobs (2).
5. Fixture can now be lamped accordingly.
6. Thread glass bulb shield over lamp.
*** The construction of this fixture will be accomplished by first mounting the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall, and then installing the fixture glass.
start here
5824
1. Prepare mounting strap (A) by threading the two 1 1/4” long mounting screws (B)
into the back of the mounting strap (A) - see Drawing 1.
• Be sure the holes into which the screws are threaded match the spacing of holes (D)
in the backplate (E).
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5

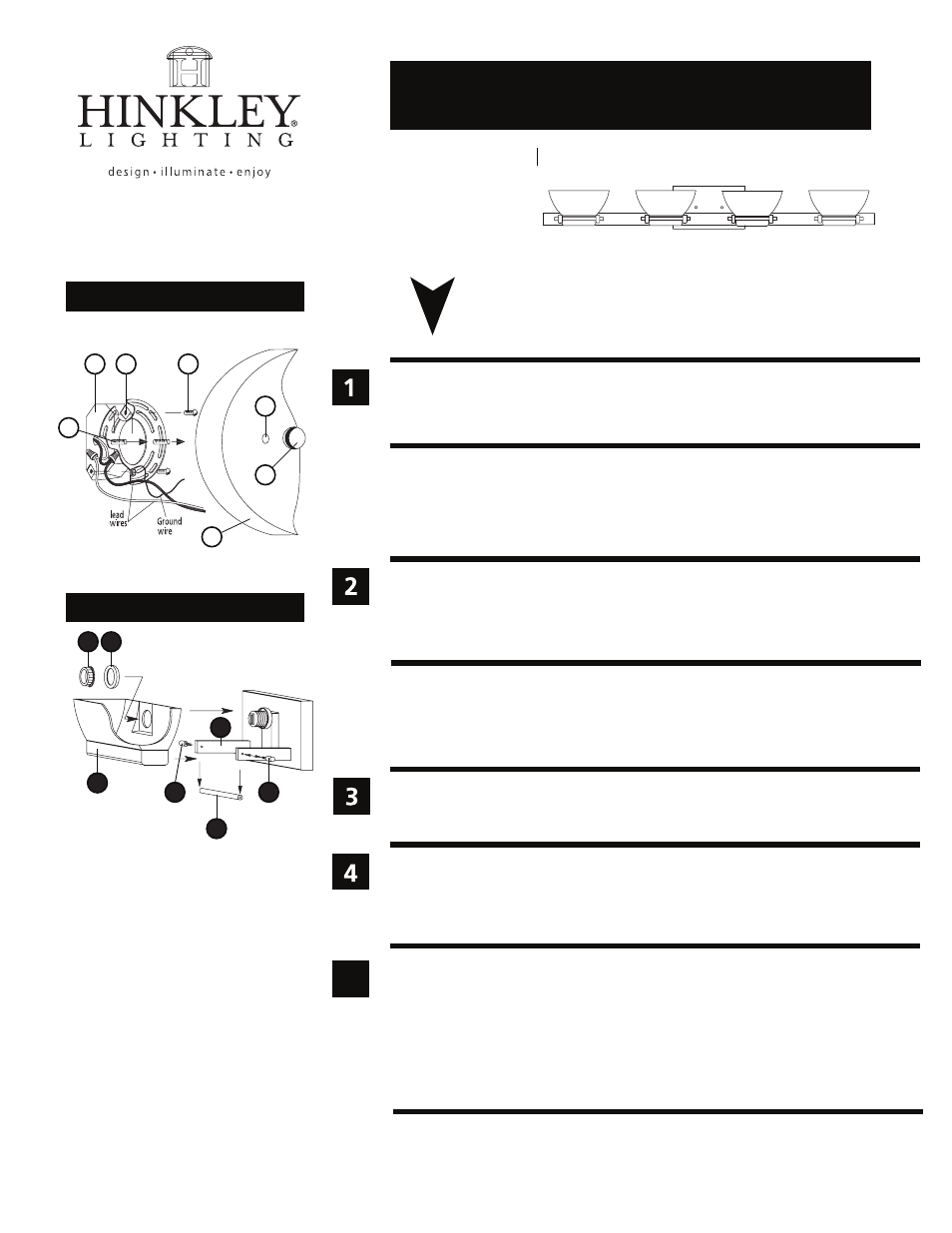

Drawing 1 - Fixture Mounting
Drawing 2 - Glass Installation
E
B
F
D
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
1. To mount fixture, slip the two mounting screws (B) through the two mounting holes
(D) in the backplate (E) - see Drawing 1.
2. While holding fixture in place, thread the two ball knobs (F) on to the end
of the mounting screws (B), and tighten.
C A J
3
1
11.2.09
4
5 6
2 2
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
