Start here, Assembly instructions

assembly instructions
Item No. 56320
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first attaching the
mounting strap to the junction box, making all necessary electrical connections,
mounting the fixture to the wall and then installing the glass.
start here
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INS TALL ATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

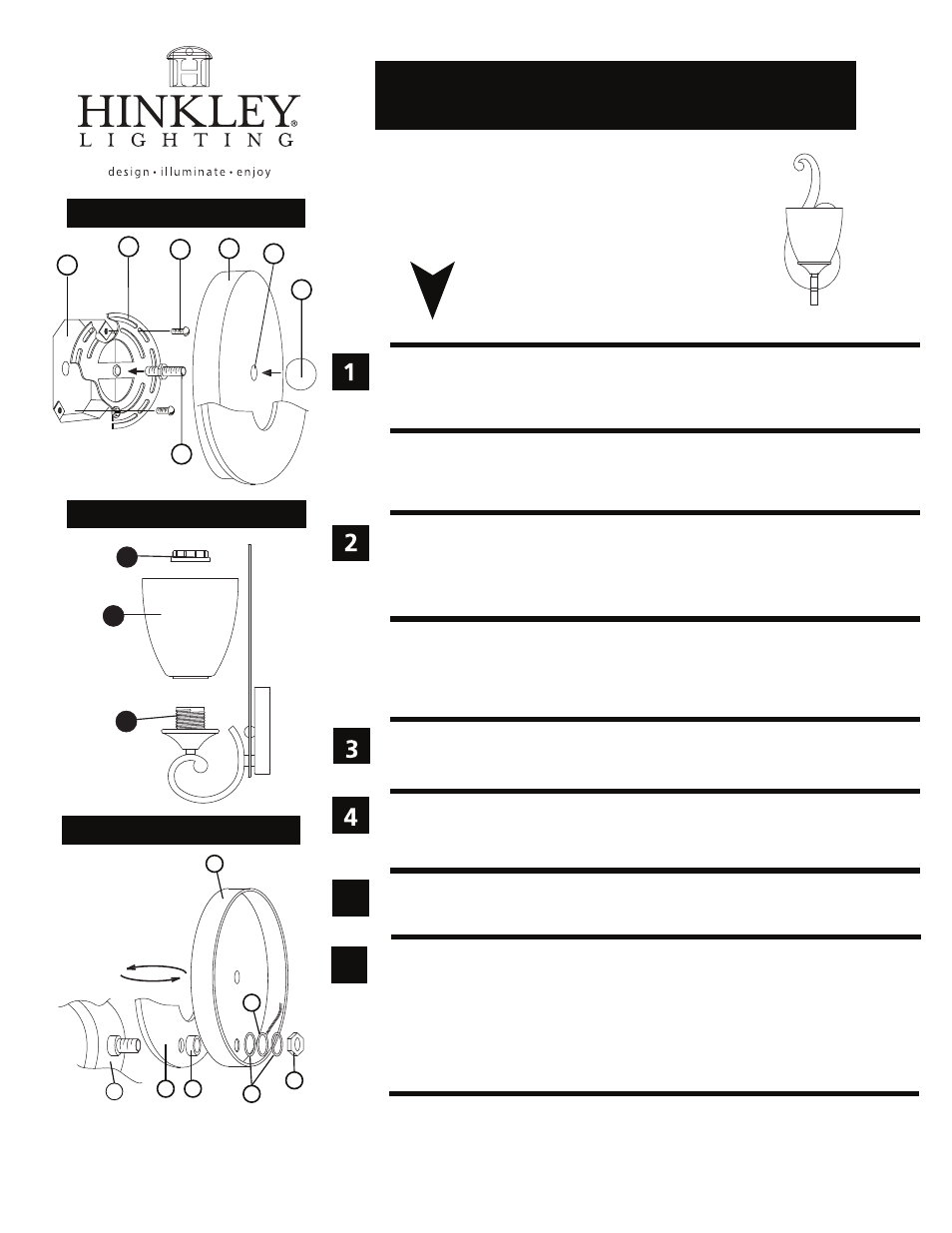

Drawing 1 - Fixture Mounting
Drawing 2 - Glass Installation
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer back to this sheet to continue installation of this fixture.
5
J
E
F
01.01.13
56320
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
A
B
C
D
1. Prepare mounting strap (A) by threading tube (B) into center hole of strap.
2. Install mounting strap (A) to junction box (J), slip supply wires through half
moon shape hole in mounting strap and attache with two 8-32 screws.
3. Test fit backplate onto wall and adjust tube (B) so it protrudes out from the face of
the backplate approximately 3/8”.
4. Tighten hex nut (H) against mounting plate (A) to lock tube (B) in place.
NOTE: prior to mounting fixture it will be necessary to determine if scroll plate (S) needs
to be reversed - see drawing 3. Proceed to step 6 before mounting if this is required.
1. To mount fixture to wall, slip backplate (E) center hole (D) over tube (B).
2. Thread decorative ball (F) onto end of tube (B) to secure fixture to wall.
1. To install glass first unthread socket ring (3) from socket (1).
2. Slip glass (2) over socket (1).
3. Thread socket ring (3) back onto socket (1) and tighten to secure glass.
2
1
22
3
Drawing 3 - Scroll Reversal
E
F
F
F
F
F
F
6
1. To reverse the scroll plate (S) on back of fixture, first remove hex nut (H)
2. Slip off lock washer (L), grounding lug (G), and second lockwasher (L) from threaded
tube (T).
3. Remove back plate (E) followed by spacer (I), then scroll plate (S).
4. Flip scroll plate around and slip back onto threaded tube (T).
5. Replace spacer (I), back plate (E), followed by lockwasher (L), grounding lug (G) and
remaining lockwasher (L).
6. Thread hex nut (H) back onto threaded tube (T), align parts and tigten to secure
parts. Fixture can now be installed.
