Hinkley Lighting PEMBROOK 2081 - Manual

assembly instructions
Family: Pembrook Item No. 2081
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first installling the fixture glass,
making all necessary electrical connections, and then mounting fixture to pre-installed
post.
star t here
2081
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S.
18) and follow all instructions to make all necessary wiring connections. Then refer back to this
sheet to complete installation of this fixture.

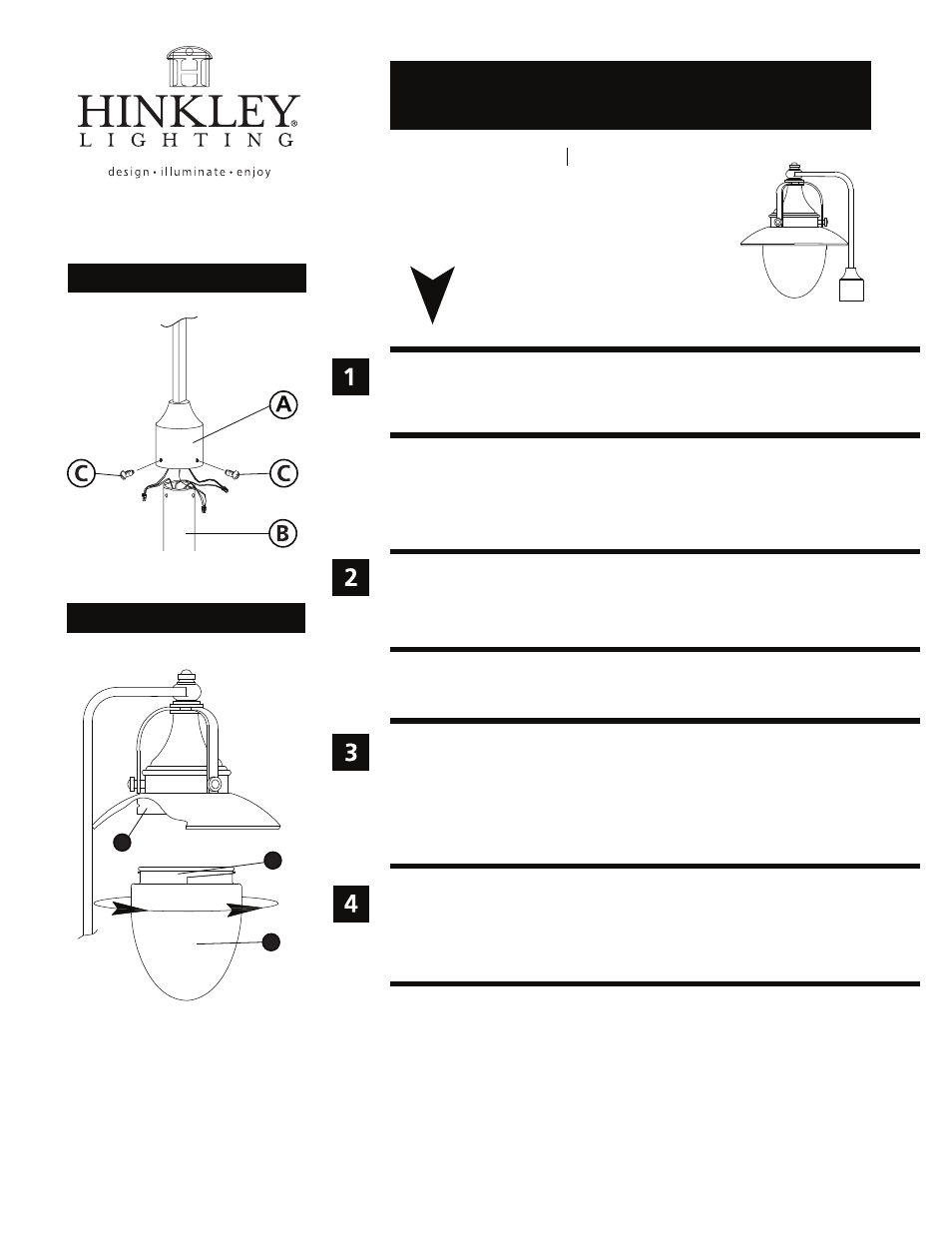

Drawing 1 - Fixture Assembly
Drawing 2 - Fixture Mounting
1. After wiring connections are complete, slip post fitter (A) over top of pre-installed post (B)
making sure all wire connections are tucked inside the pole - see Drawing 2.
2. When fixture is slipped over pole make sure no wires are being pinched between the top edge
of the pole and the inside of the post fitter.
3. Thread the 3 set screws (C) into pre-tapped holes in post fitter.
4. Tighten screws (C) to secure fixture to post.
01.01.12
3
2
1
1. Fixture can now be lamped accordingly.
2. The glass in this fixture is installed by lining up the grooves (3) in the glass with
the tabs located inside the roof (1) - see Drawing 1 .
3. To install glass (2) align grooves and slip glass up into roof. Turn glass to
lock it in place.
H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com
