assembly instructions

Family: Oxford Item No. 1242 MN

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

1. To assemble fixture, slip candle sleeve (2) over socket (A) - see Drawing 1.
2. Thread center stem (4) into center hole (B) located at the base of cluster assembly (C).
3. Fixture can now be lamped accordingly.
4. Slip glass (3) over entire cluster assembly (C).
5. Slip bottom cup (5) onto center stem (4).
6. Thread bottom loop (6) onto center stem (4).

*** The construction of this fixture will be accomplished by first assembling the
the main body of the fixture, making all necessary electrical connections, and
then hanging the fixture from the ceiling.

start here

1242

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Note: Maximum wattage for 1242 fixture is 40 watts per bulb.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet (I.S. 18) and follow all instructions to make all necessary wiring connections.
Then refer to the hanging instruction sheet (I.S. 19) provided to complete installation
of this fixture.

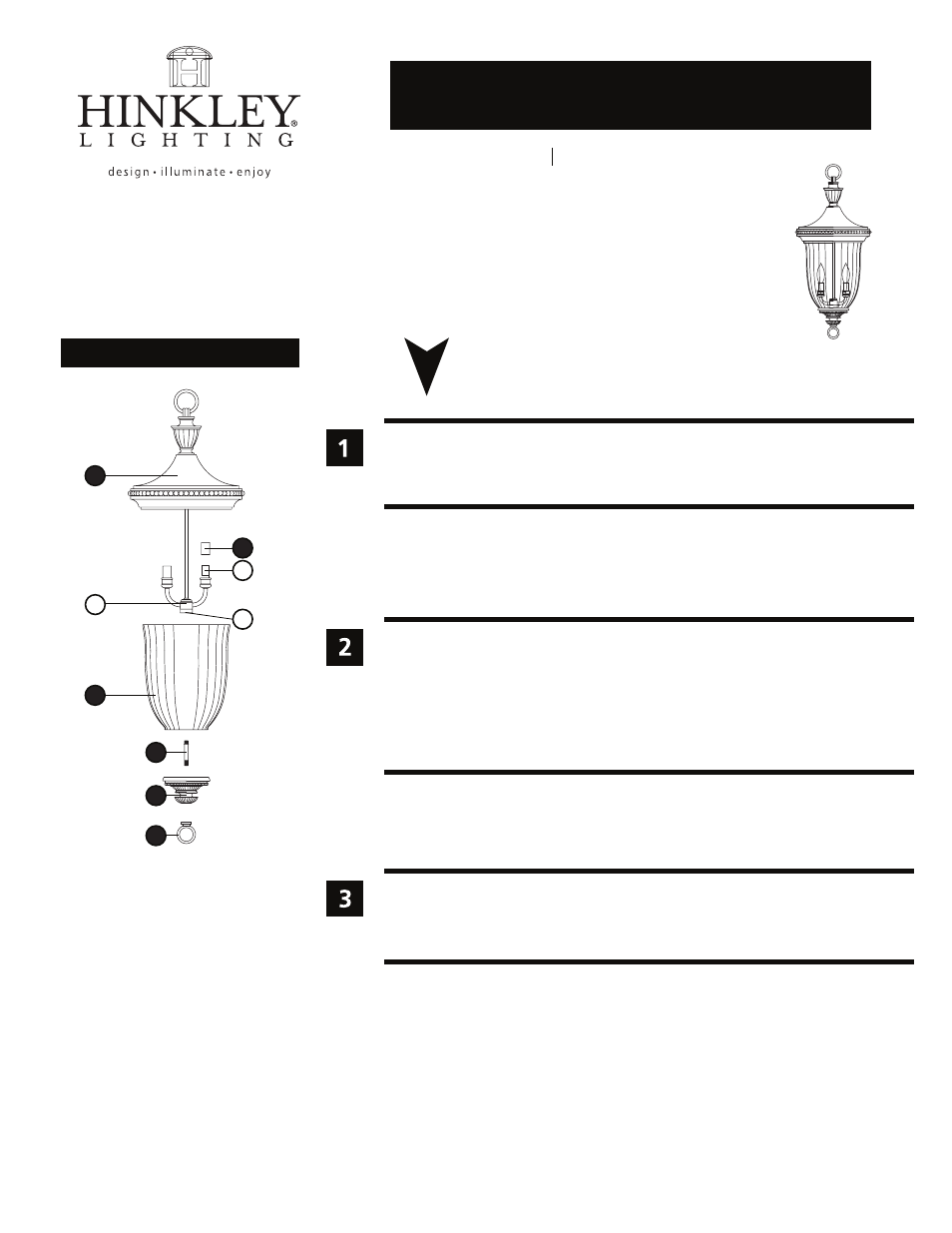

Drawing 1 - Fixture Assembly

C

1

2

3

4

5

6

A

B

2.7.08
