Banner MINI-BEAM Expert Series - Manual (Page 2)

Convergent Models
Sensing Mode Model * Range or Focus Supply Voltage Output Type
Convergent, 650 nm visible red
SME312CV
16 mm (0.65 in)
Spot Size at Focus: 1.3 mm
(0.05 in)
10 to 30V dc
Bipolar
NPN/PNP
SME312CV2
43 mm (1.7 in)
Spot Size at Focus: 3.0 mm
(0.12 in)
Convergent, 525 nm visible green SME312CVG
16 mm (0.65 in)
Spot Size at Focus: 1.0 mm
(0.04 in)
Convergent, 475 nm visible blue SME312CVB 16 mm (0.65 in)
Spot Size at Focus: 1.8 mm
(0.07 in)
Convergent, 450-650 nm visible white SME312CVW
Glass Fiber Optic Models
Sensing Mode Model * Range or Focus Supply Voltage Output Type
Glass Fiber Optic, 880 nm infrared SME312F
Range varies by sensing
mode and fiber optics used
10 to 30V dc
Bipolar
NPN/PNP
Glass Fiber Optic, 650 nm visible red SME312FV
Glass Fiber Optic, 525 nm visible green SME312FVG
Glass Fiber Optic, 475 nm visible blue SME312FVB
Glass Fiber Optic, 450-650 nm visible white SME312FVW
Plastic Fiber Optic Models
Sensing Mode Model * Range or Focus Supply Voltage Output Type
Plastic Fiber Optic, 650 nm visible red SME312FP
Range varies by sensing
mode and fiber optics used
10 to 30V dc
Bipolar
NPN/PNP
Plastic Fiber Optic, 525 nm visible green SME312FPG
Plastic Fiber Optic, 475 nm visible blue SME312FPB
Plastic Fiber Optic, 450-650 nm visible white SME312FPW
* Standard 2 m (6.5 ft) cable models are listed. To order the 9 m (30 ft) cable model, add suffix “W/30” to the model number (e.g.,
SME312LV W/30.) To order the 5-pin Euro-style QD models, add suffix “QD” (e.g., SME312LVQD). Models with a QD connector require
a mating cable.

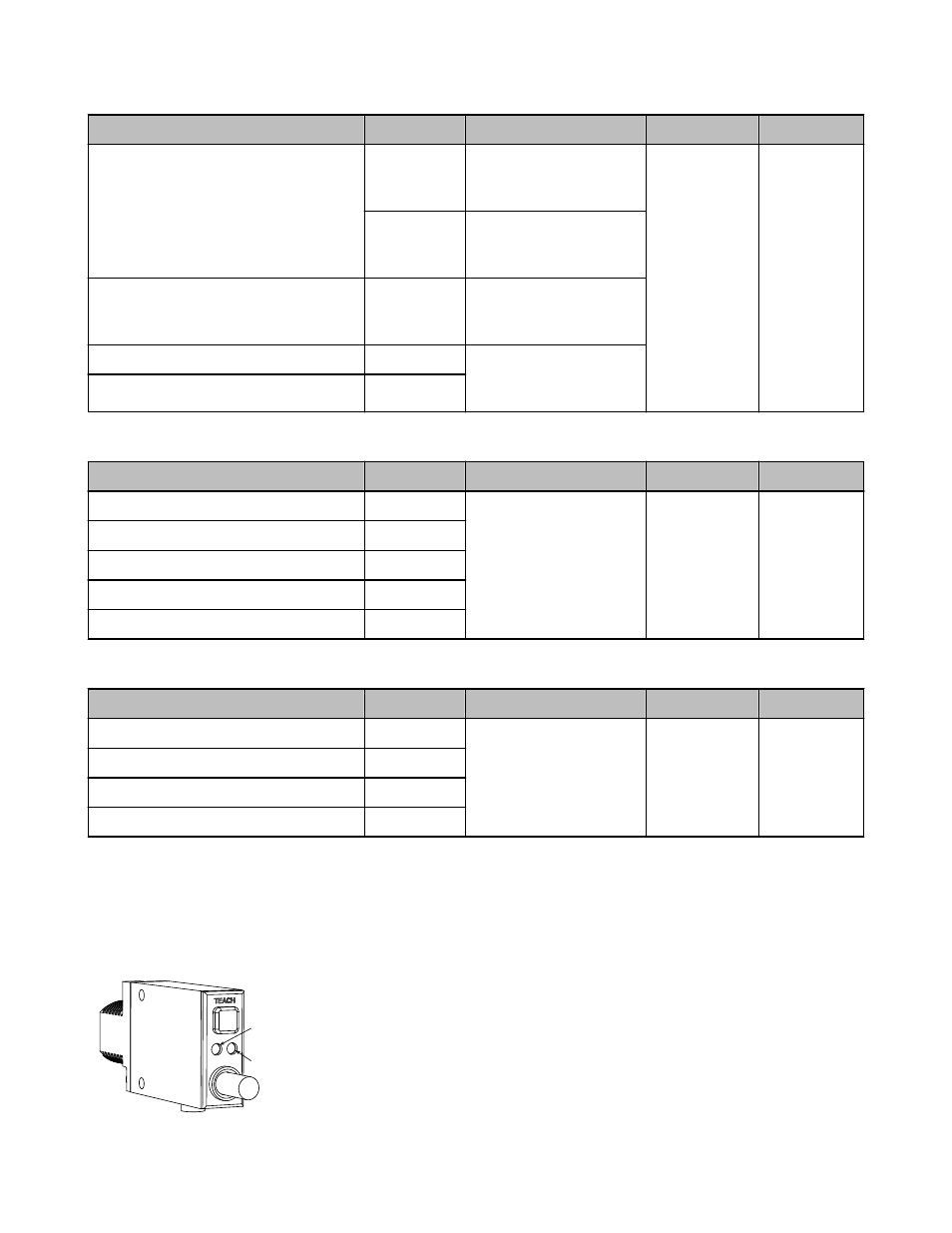

Overview
Yellow output
indicator LED
Bi-color green/red
indicator LED
MINI-BEAM® Expert™ is a complete family of sensors, all housed in the popular, ro-
bust and compact rectangular housing. Their large push button and easy-to-see indi-
cators provide easy configuration, alignment, and monitoring during use.
Retroreflective and Polarized Retroreflective Mode models are excellent for sens-
ing relatively small items where opposed-mode sensing is not possible. They are rec-
ommended for relatively clean environments where high excess gain is not required.
Polarized models filter out unwanted reflections.
Polarized Retroreflective Mode – Clear Object Detection models reliably detect the
presence of clear objects.
MINI-BEAM SME312 Expert Series
