Banner MINI-BEAM Expert Series User Manual
Page 12

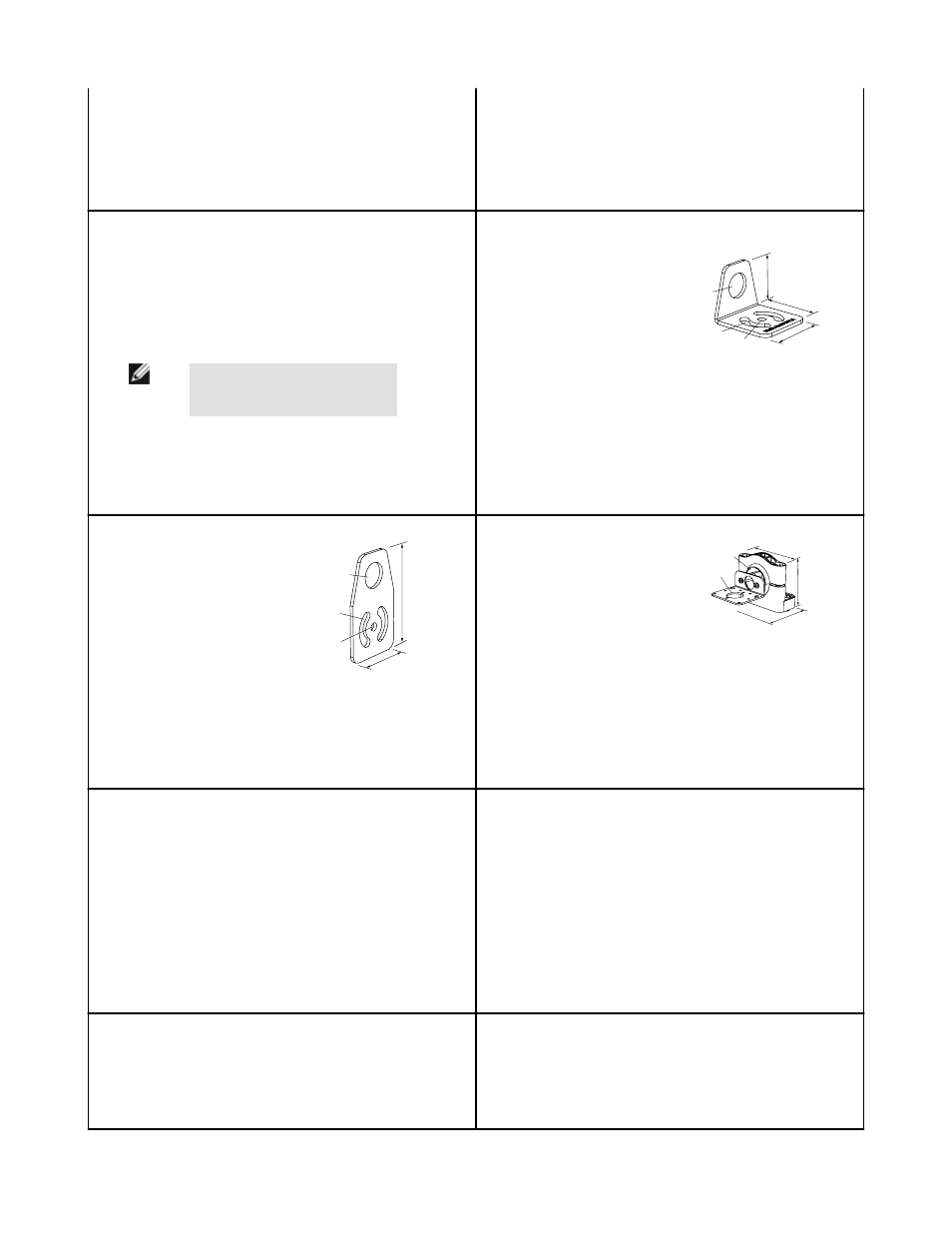

Hole center spacing: A = 36.0
Hole size: A = ø 5.3, B = ø 18.0
• Mounting hole for 18 mm
sensor
Hole center spacing: A = 25.4, B = 46.7
Hole size: B = 6.9 x 32.0, C = ø 18.3
SMB312PD
• Right-angle mounting bracket with a curved slot for versatile
orientation
• 12-ga. stainless steel
• 18 mm sensor mounting hole
• Clearance for M4 (#8) hardware
NOTE: Not for use with plastic fi-
ber optic sensors
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17 x 4.6, C = ø 18.5
SMBAMS18RA
• Right-angle SMBAMS ser-
ies bracket with 18 mm
hole for mounting sensors
• Articulation slots for 90+°
rotation
• 12-ga. (2.6 mm) cold-rol-
led steel
48
45
40
A
B
C
Hole center spacing: A = 26.0, A to B = 13.0
Hole size: A = 26.8 x 7.0, B = ø 6.5, C = ø 19.0
SMBAMS18P
• Flat SMBAMS series
bracket with 18 mm hole
for mounting sensors
• Articulation slots for 90+°
rotation
• 12-ga. (2.6 mm) cold-rol-
led steel
45
78
A
B
C
Hole center spacing: A = 26.0, A to B = 13.0
Hole size: A = 26.8 x 7.0, B = ø 6.5, C = ø 19.0
SMB30SK
• Flat-mount swivel bracket
with extended range of
motion
• Black reinforced thermo-
plastic polyester and 316
stainless steel
• Stainless steel swivel lock-
ing hardware included
68
57
78
A
B
Hole center spacing: A = 50.8
Hole size: A = ø 7, B = ø 18
SMB3018SC
• 18 mm swivel side or bar-
rel-mount bracket
• Black reinforced thermo-
plastic polyester
• Stainless steel swivel lock-
ing hardware included
Hole center spacing: A = 50.8
Hole size: A = ø 7.0, B = ø 18.0
SMB3018SUS
• Side-mount swivel with ex-
tended range of motion
• Black reinforced thermo-
plastic polyester
• Stainless steel swivel lock-
ing hardware included
Hole center spacing: A =
Hole size: A = ø , B = ø
SMB312S
• Stainless steel 2-axis,
side-mount bracket
SMB312B
• Stainless steel 2-axis, bot-
tom-mount bracket
• Includes mounting foot
MINI-BEAM SME312 Expert Series
12
