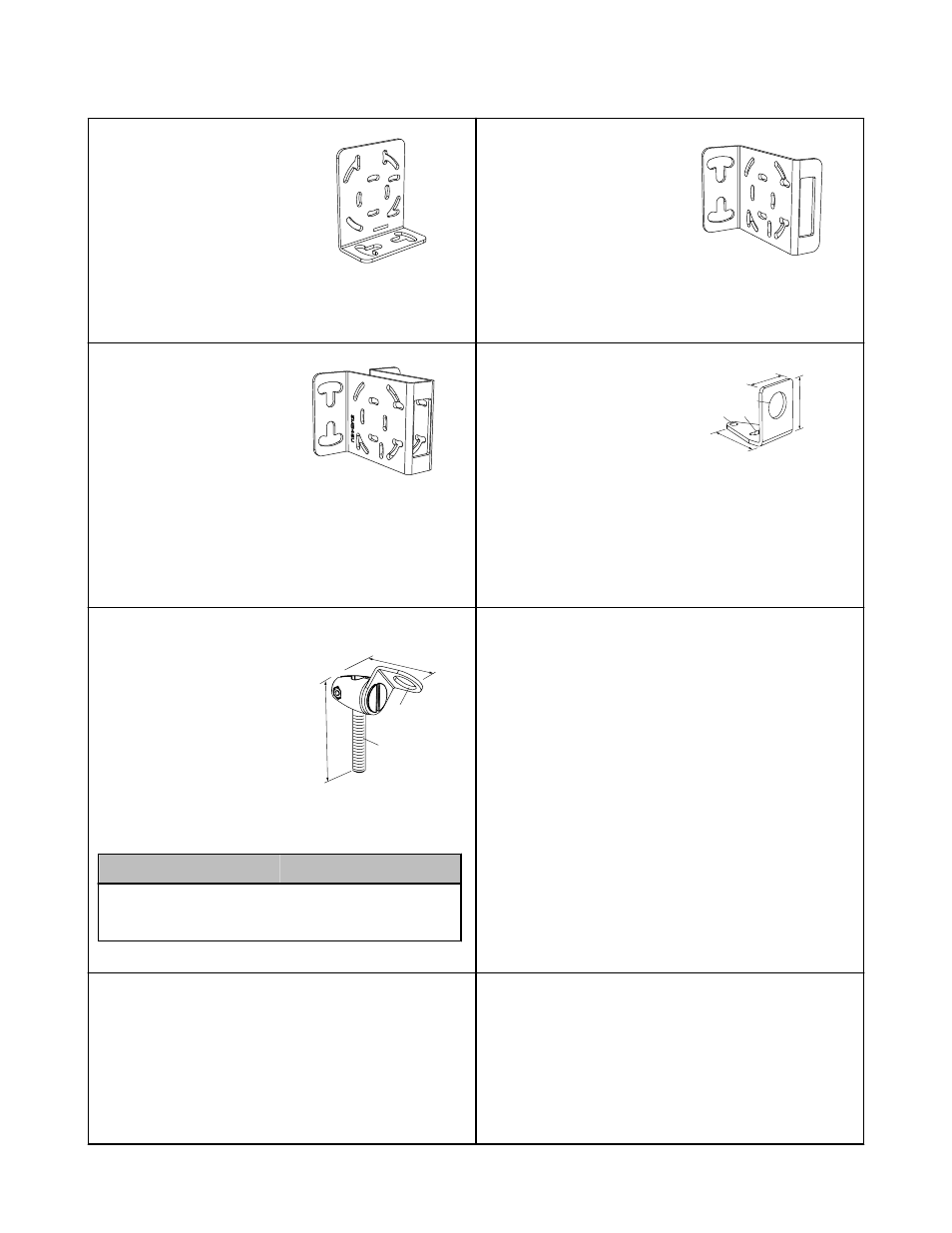

Mounting Brackets
SMB46L
• Right-angle
• L bracket
• 14-ga. 316 stainless steel
Hole center spacing: A = 16.0
Hole size: A = 16.5 x 18.7
SMB46S
• Right-angle
• S bracket
• 14-ga. 316 stainless steel
Hole center spacing: A = 16.0
Hole size: A = 16.5 x 18.7, B = 34.0 x 10.0
SMB46U
• Right-angle
• U bracket for sensor pro-
tection
• 14-ga. 316 stainless steel
Hole center spacing: A = 16.0
Hole size: A = 16.5 x 18.7, B = 34.0 x 13.0
SMB18A
• Right-angle mounting
bracket with a curved slot
for versatile orientation
• 12-ga. stainless steel
• 18 mm sensor mounting
hole
• Clearance for M4 (#8)
hardware
30
41
46
A B
C
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 x 4.6, C = ø 18.5
SMB18AFA..
• Protective, swivel bracket
with tilt and pan movement
for precision adjustment
• Easy sensor mounting to
extruded rail T-slots
• Metric and inch size bolts
available
• Mounting hole for 18 mm
sensors
66
69
A
B
Hole size: B = ø 18.1
Model Bolt Thread (A)
SMB18AFA 3/8 - 16 x 2"
SMB18AFAM10 M10 - 1.5 x 50
SMB18Q
• Right-angle flanged brack-
et
• 18 mm sensor mounting
hole
• 12-ga. stainless steel
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 x 4.6, C = ø 19.0
SMB18SF
• 18 mm swivel bracket with
M18 x 1 internal thread
• Black thermoplastic poly-
ester
• Stainless steel swivel lock-
ing hardware included
SMB18UR
• 2-piece universal swivel
bracket
• 300 series stainless steel
• Stainless steel swivel lock-
ing hardware included
