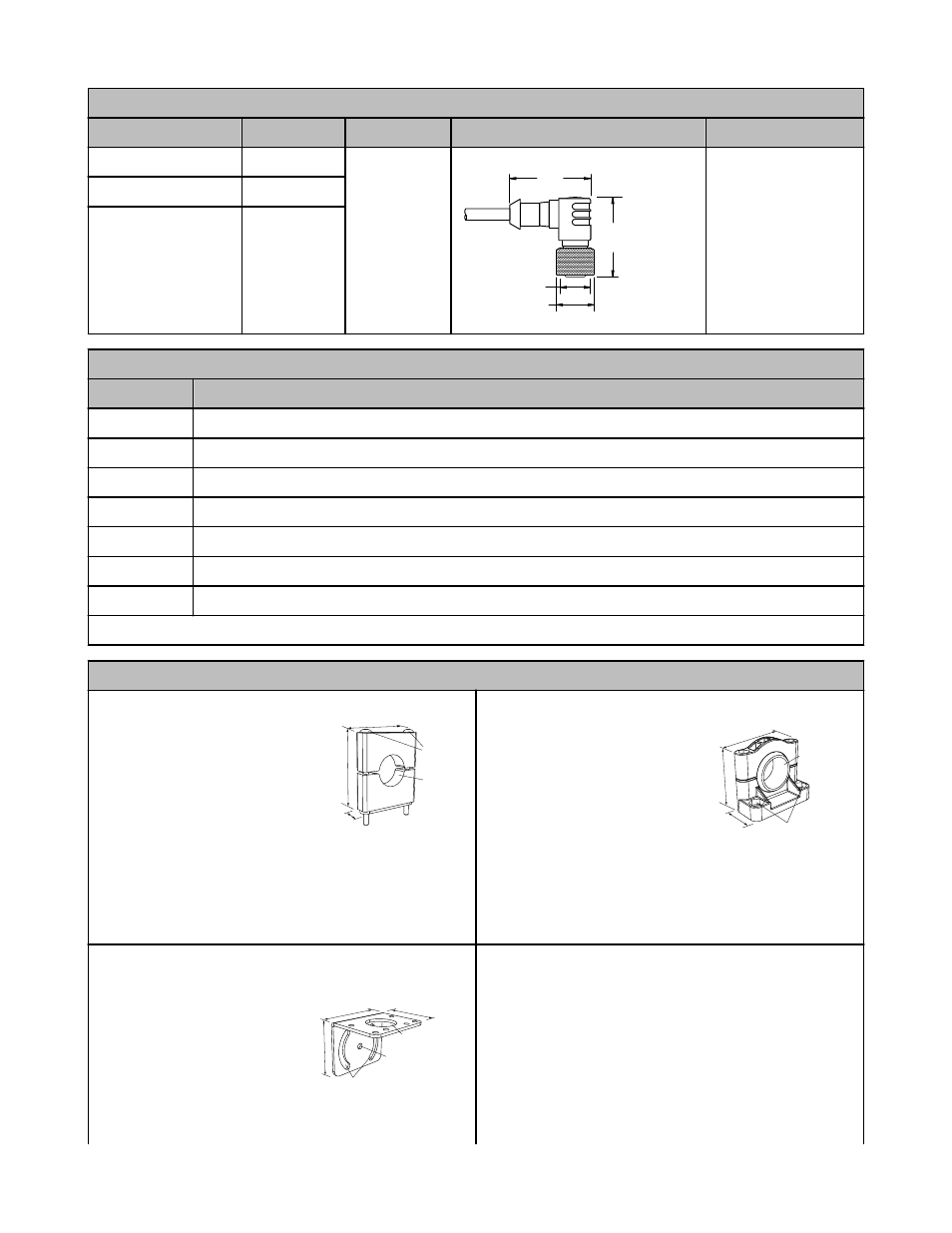

4-Pin Threaded M12/Euro-Style Cordsets (for use with NAMUR sensors)
Model Length Style Dimensions Pinout
MQD9-406RA
1 = Brown
2 = Blue
1.83 m (6 ft) Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQD9-415RA 4.57 m (15 ft)
MQD9-430RA 9.14 m (30 ft)
Replacement Lens Assemblies
Models Description
UC-45L Replacement lens for E, R, DL and LV models
UC-45LP Replacement lens for LP
UC-45D Replacement lens for D
UC-45F Replacement lens for F and FV
UC-45FP Replacement lens for FP
UC-45C Replacement lens for CV
UC-45C4 Replacement lens for CV4
Q45 Series lens assemblies are field-replaceable.
Mounting Brackets
SMB30C
• 30 mm split clamp, black
PBT bracket
• Stainless steel mounting
hardware included
• Mounting hole for 30 mm
sensor
66
56
13
A
B
Hole center spacing: A=ø 45
Hole size: B=ø 27.2
SMB30SC
• Swivel bracket with 30 mm
mounting hole for sensor
• Black reinforced thermo-
plastic polyester
• Stainless steel mounting
and swivel locking hard-
ware included
67
58
29
B
A
Hole center spacing: A=ø 50.8
Hole size: A=ø 7.0, B=ø 30.0
SMB30MM
• 12-ga. stainless steel
bracket with curved
mounting slots for versatile
orientation
• Clearance for M6 (¼ in)
hardware
• Mounting hole for 30 mm
sensor
70
57
A
B
C
57
SMB30UR
• 2-piece universal swivel
bracket for limit-switch
style sensors
• 300 series stainless steel
• Stainless steel swivel lock-
ing hardware included
