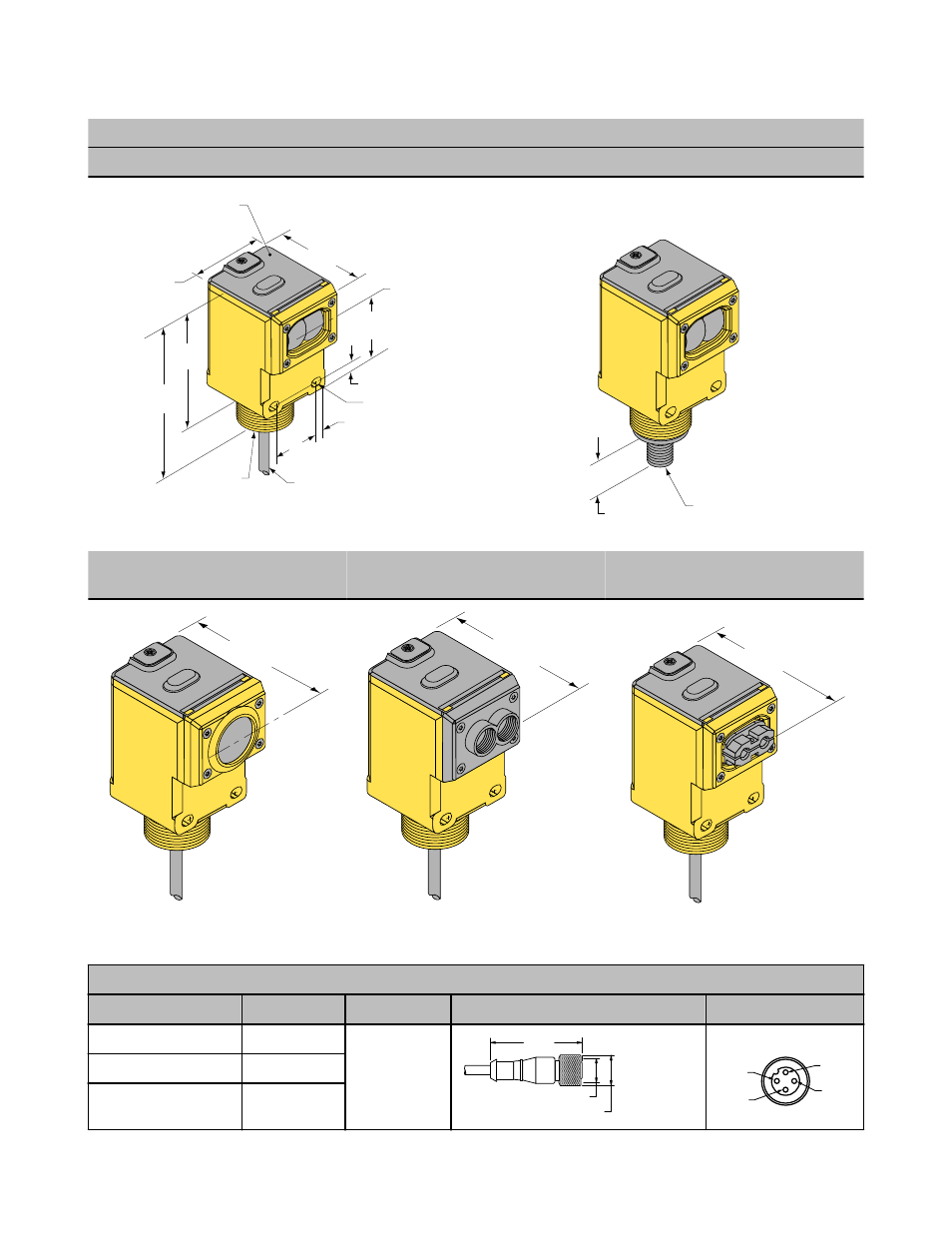

Dimensions
NAMUR Series Opposed, Retro, and Diffuse Sensing Modes (Model Suffix E, R, D, DL, LP, and LV)
Cabled Models Quick-Disconnect 4-pin Euro-style Models
54.1 mm
(2.13")
44.5 mm
(1.75")
69.0 mm
(2.72")
87.6 mm
(3.45")
Internal Thread
(1/2–14NPSM)
30.0 mm
(1.18")
ø 6.1 (0.24")
2m (6.5') Cable
7.1 mm
(0.28")
4.5 mm (#10) Screw
Clearance (2)
50.8 mm
(2.00")
6.4 mm (0.25")
Lens Centerline
Transparent Cover (Gasketed)
View: Output Load Status
Open to Access: Sensitivity (Gain)
Adjustment
External thread (M30 x 1.5)
hex nut supplied
15 mm (0.6")
Euro- or Micro-style
QD Connector
Convergent Sensor Models (CV and
CV4)
Glass Fiber Optic Models (F and FV) Plastic Fiber Optic Models (FP)
61.7 mm
(2.43")
60.5 mm
(2.38")
59.9 mm
(2.36")
Accessories
4-Pin Threaded M12/Euro-Style Cordsets (for use with NAMUR sensors)
Model Length Style Dimensions Pinout
MQD9-406 1.83 m (6 ft) Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
MQD9-415 4.57 m (15 ft)
MQD9-430 9.14 m (30 ft)
Q45 NAMUR Sensors
