VS1 Series

Miniature, Self-Contained Convergent-Mode Sensors

Features

• Totally self-contained miniature sensors
• 10 to 30V dc operation
• Visible red or infrared sensing beam, depending on model
• 10 mm (0.4") or 15 mm (0.6") convergent point, depending on model
• NPN (sinking) or PNP (sourcing) output, and dark or light operate,

depending on model

• 3-wire hookup; output load capacity to 50 mA
• Choice of integral cable or pigtail quick-disconnect connector

Convergent

Convergent

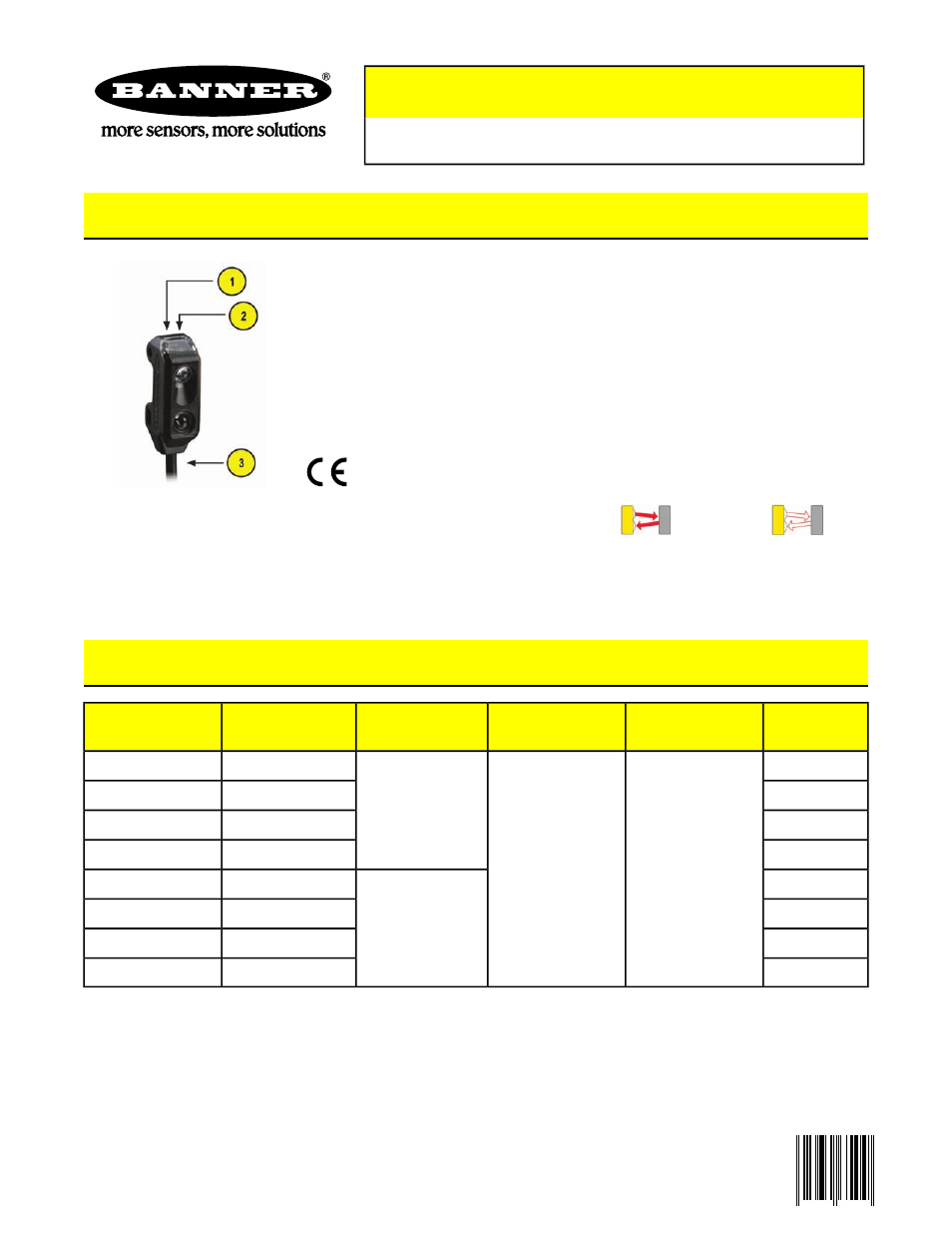

1. Power ON Indicator
2. Received Signal Indicator
3. 2 m Cable or Pigtail Quick-Disconnect

Infrared, 865 nm

Visible Red, 630 nm

Models

Output Type

Supply Voltage

Cable*

Focus

Infrared Beam

Models

Visible Red Beam

Models

NPN/LO

10 to 30V dc

2 m (6.5') 3-wire

integral cable

10 mm (0.4")

VS1AN5C10

VS1AN5CV10

NPN/DO

VS1RN5C10

VS1RN5CV10

PNP/LO

VS1AP5C10

VS1AP5CV10

PNP/DO

VS1RP5C10

VS1RP5CV10

NPN/LO

15 mm (0.6")

VS1AN5C20

VS1AN5CV20

NPN/DO

VS1RN5C20

VS1RN5CV20

PNP/LO

VS1AP5C20

VS1AP5CV20

PNP/DO

VS1RP5C20

VS1RP5CV20

* Only standard 2 m (6.5') cable models are listed above. For other cable/connector options:

9 m cables: add suffix “W/30” to the model number (e.g., VS1AN5CV10 W/30).
150 mm (6") pigtail with threaded 3-pin Pico-style QD: add suffix “Q” to the model number (e.g., VS1AN5CV10Q).

A model with a QD connector requires a mating cable; see

Quick-Disconnect (QD) Cordsets

on page 5.

_564 65_N

11/2009

P/N _56465_ rev. D
