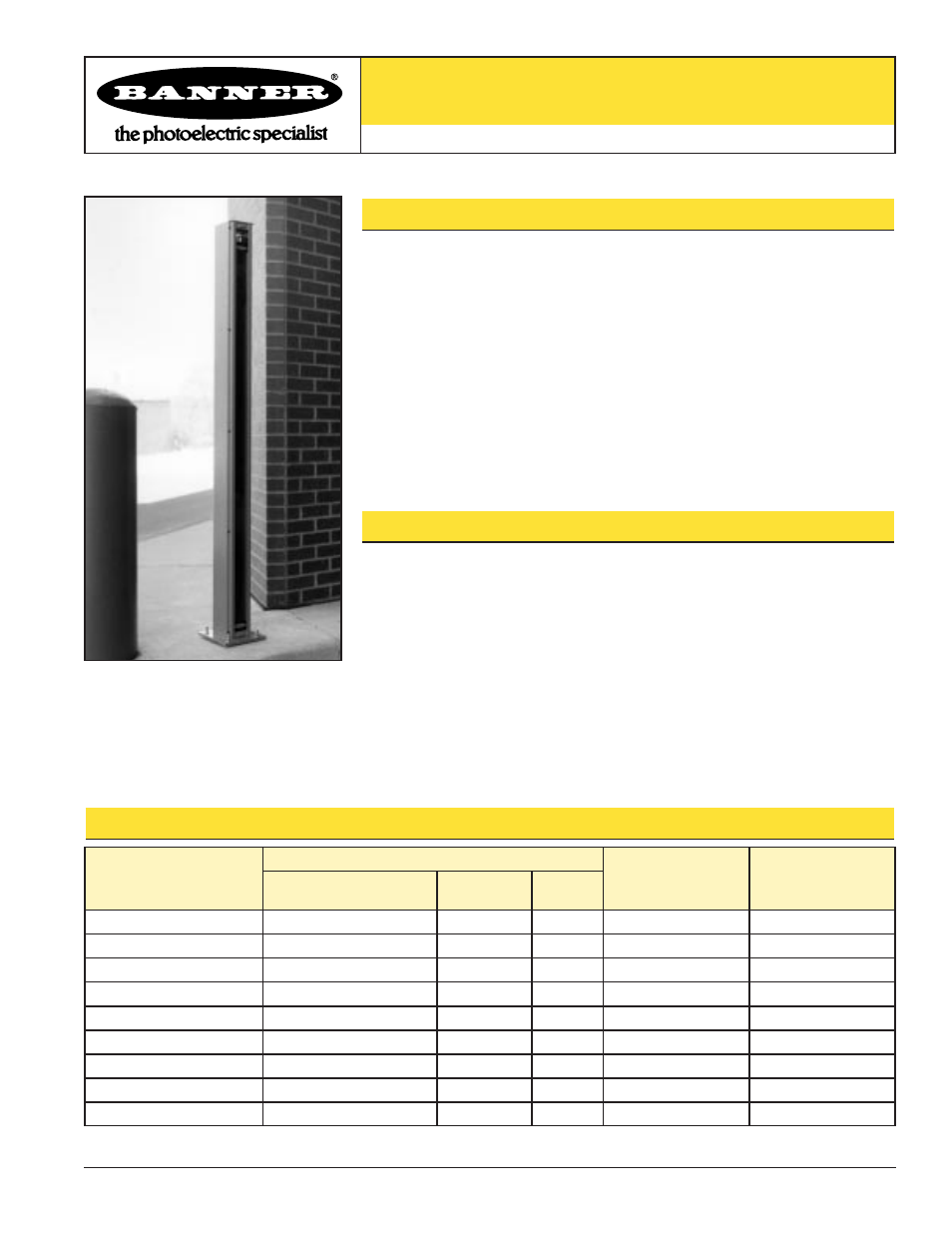

Features
•
Heavy-duty stainless steel or extruded aluminum housing protects emitter or
receiver in an outdoor environment
•
Thermostatically controlled resistance wires keep glass window free of
condensation, snow or ice for effective sensor operation in cold weather
environments
•
Humidistat also controls heated window to keep glass clear, even on damp or
foggy days
•
Choose from stainless steel or aluminum housings, in 3 sizes
•
Compatible with 4', 5', and 6' MINI-ARRAY sensors
•
Space-saving, vertical design requires only 8" x 8" footprint
•
An excellent solution for outdoor applications such as toll booths
Overview
The Series BMHE Heated Enclosure is designed to offer weather protection for a
MINI-ARRAY emitter or receiver in an outdoor application such as a toll booth.
The Enclosure has a laminated safety glass window with a series of resistance wires.
The resistance wires connect through two thermostats to a power source to heat the
glass as necessary to prevent condensation, ice or snow from inhibiting the beams.
When humidity inside the enclosure rises, a humidistat prompts the heater to warm
the window, to prevent condensation.
The Series BMHE MINI-ARRAY Heated Enclosure is designed to accommodate MINI-
ARRAY emitters and receivers 4', 5', or 6' long, with enough extra space at top and
bottom to ensure accurate mounting.
Models
Model Number
Description
Clear Window
Height (C)**
BMHE4A/BMHL4G
Aluminum Enclosure
Painted
4'
1.5 m (59
")
BMHE5A/BMHL5G
Aluminum Enclosure
Painted
5'
1.8 m (71
")
BMHE6A/BMHL6G
Aluminum Enclosure
Painted
6'
2.0 m (79
")
BMHE4SS/BMHL4GSS
Stainless Steel Enclosure
Painted
4'
1.5 m (60
")
BMHE5SS/BMHL5GSS
Stainless Steel Enclosure
Painted
5'
1.8 m (72
")
BMHE6SS/BMHL6GSS
Stainless Steel Enclosure
Painted
6'
2.0 m (80
")
BMHE4SSN/BMHL4GSSN
Stainless Steel Enclosure
Non-painted
4'
1.5 m (60
")
BMHE5SSN/BMHL5GSSN
Stainless Steel Enclosure
Non-painted
5'
1.8 m (72
")
BMHE6SSN/BMHL6GSSN
Stainless Steel Enclosure
Non-painted
6'
2.0 m (80
")
Material
Finish*
Array
Length
Overall Enclosure
Height (H)**
1.7 m (66.5
")
2.0 m (78.5
")
2.2 m (86.5
")
1.7 m (67.5
")
2.0 m (79.5
")
2.2 m (87.5
")
1.7 m (67.5
")
2.0 m (79.5
")
2.2 m (87.5
")
* Standard color is Federal Safety Yellow (Federal Standard color# 23538). Consult Factory for other colors.
**
Refer to Figure 1.
