Banner QC50 Series - Manual

Printed in USA 31UHY&

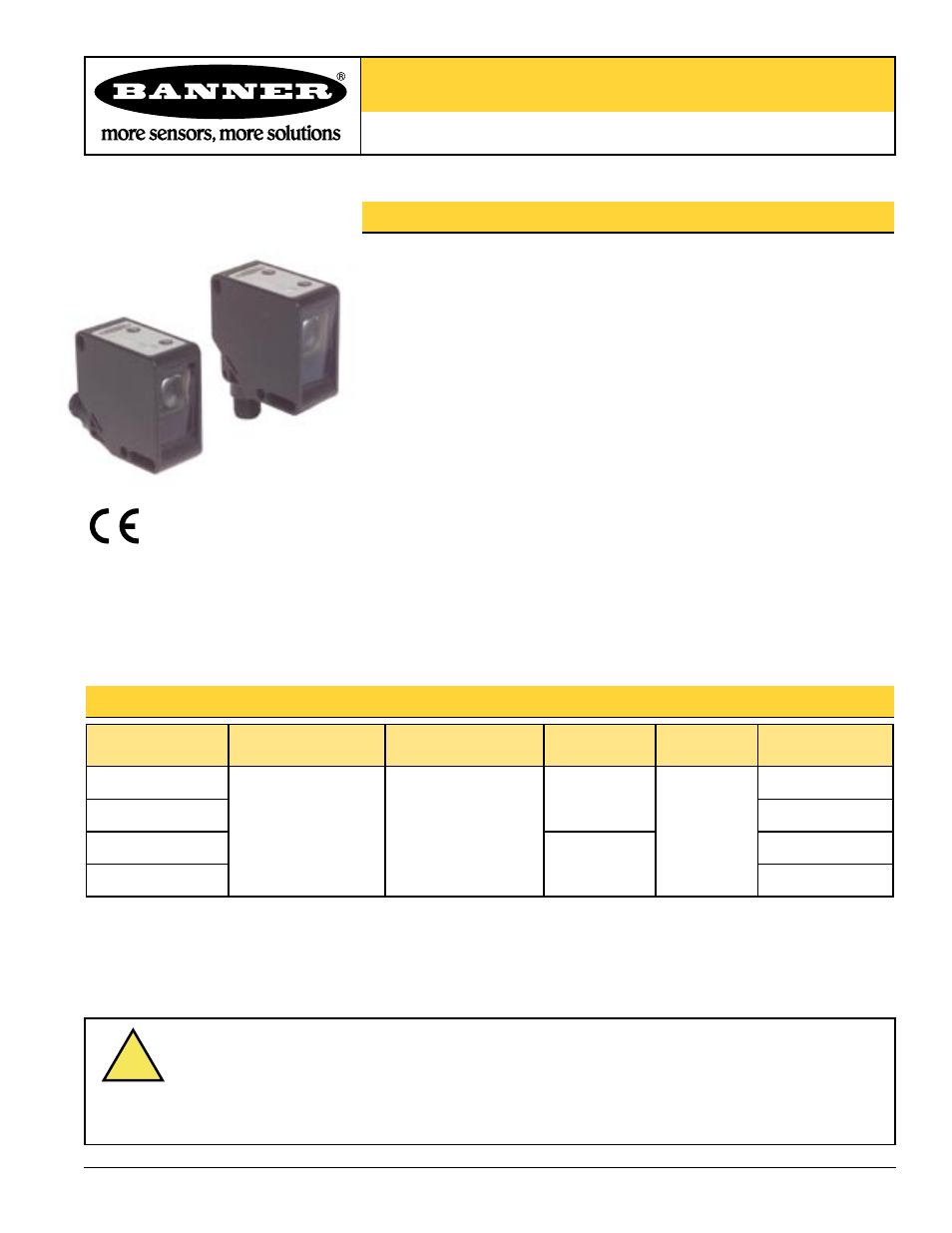

QC50 Series True Color Sensor
Compact, self-contained, three-output color-differentiating sensor
Features
• Two versions for application flexibility: QC50 models for most applications, and
QCX50 models for more challenging applications
• Compact, self-contained design
• Analyzes and compares color to color, or varying intensities of one color
• QCX50 models excel in challenging applications, such as differentiating dark blue
from black
• Fast sensing response time –
QC50 models: 335 microseconds
QCX50 models: 5 ms (reduced resolution setting – 1 ms)
• Easy-to-set programming options for 1, 2, or 3 colors
• Three programming parameters: channel, sensing mode, and tolerance level
• 10 tolerance levels to allow for product variation
• Output OFF-delay (6 options); selection applies to all three color channels
• Gate mode option (also called inhibiting, synchronization or windowing)
Models
* Mating cable required; see page 7 for cable options
Models
Sensing
Range Cable/Connector*
Sensing
Response Time
Supply
Voltage Output Type
QC50A3P6XDWQ
20 mm (0.8") typical;
varies according to
sensor configuration
8-pin Euro-style (M12)
swivel QD connector
335 µs
10 to 30V dc
PNP, 3 channels
QC50A3N6XDWQ NPN, 3 channels
QCX50A3P6XDWQ
Selectable
5 ms or 1 ms
PNP, 3 channels
QCX50A3N6XDWQ NPN, 3 channels
WARNING . . .
Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety
applications. A sensor failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current
Banner Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
!
