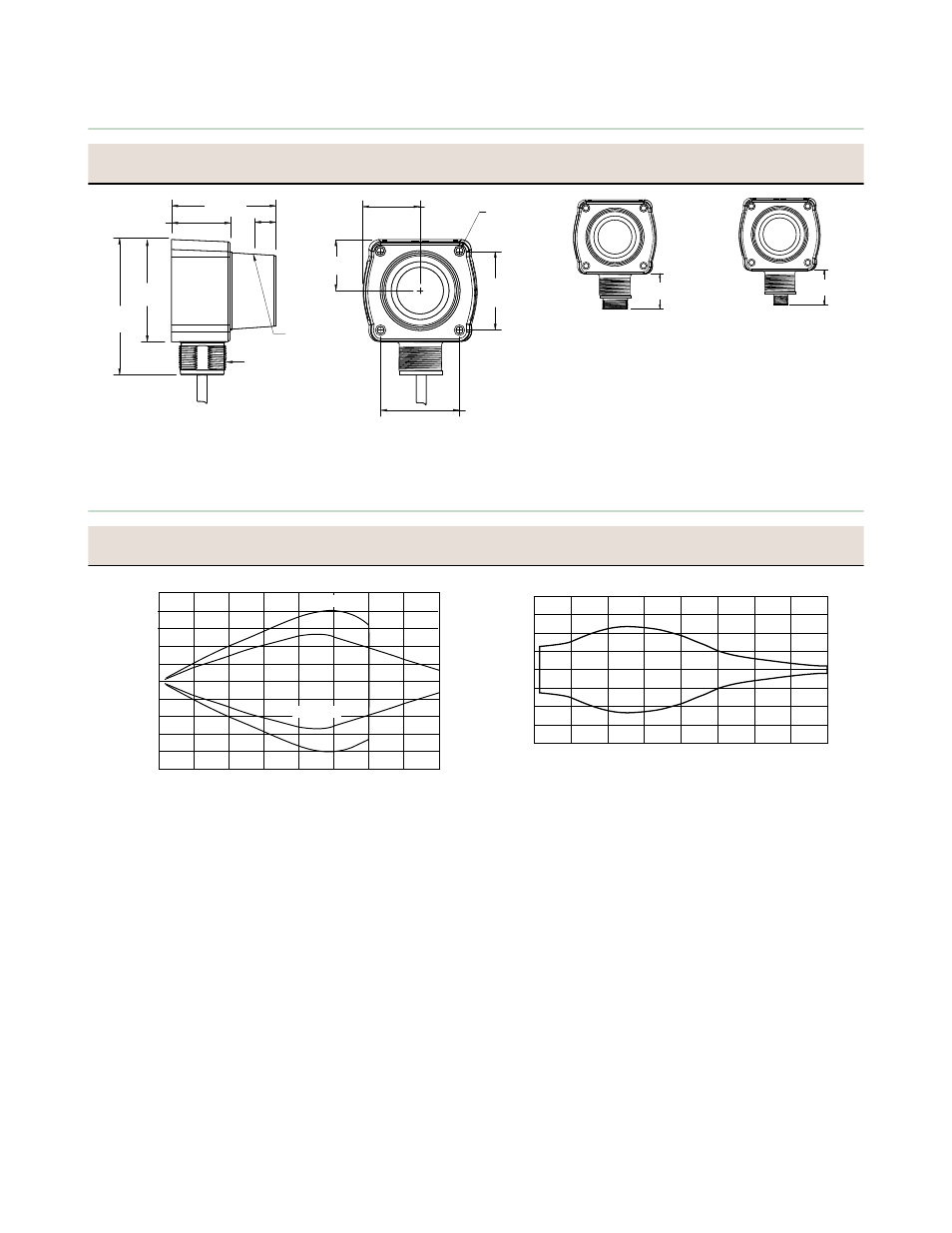

Dimensions
Cabled Models 5-pin Mini-style Models
5-pin Euro-style
Models
67.4 mm
[2.66”]
38.1 mm
[1.5”]
18 mm
[0.71”]
66 mm
[2.6”]
84.2 mm
[3.32”]
33 mm
[1.3”]
Temperature
Sensor Location
Internal thread 1/2” NPSM
External thread M30 x 1.5
37 mm
[1.46”]
4x 4.4 mm dia
[0.17” dia]
50.8 mm
[2”]
50.8 mm
[2”]
34.2 mm
[1.35”]
34.2 mm
[1.35”]
Performance Curves
QT50U Effective Beam Pattern QT50U (with 500 mm Plate) Maximum Target
Rotation Angle
Effective Beam W
idth
Target Distance
-200 mm
-400 mm
-600 mm
200 mm
400 mm
0
600 mm
800 mm
1000 mm
-800 mm
-1000 mm
0 1 m
(3.3')
2 m
(6.6')
3 m
(9.8')
4 m
(13.1')
5 m
(16.4')
6 m
(19.6')
7 m
(22.9')
8 m
(26.2')
8"
-8"
0
16"
-16"
24"
-24"
31"
-31"
-40"
40"
25 mm Rod
500 mm Plate
-10
-20
-30
10
0
20
30
40
-40
0
Target Distance (m)
Target Rotation (deg)
1 m
(3.3’)
2 m
(6.6’)
3 m
(9.8’)
4 m
(13.1’)
5 m
(16.4’)
6 m
(19.6’)
7 m
(22.9’)
8 m
(26.2’)
U-GAGE QT50UDB Series Sensors with Dual-Discrete Outputs
