Figura 3 – Metrohm 815 Robotic USB Sample Processor XL User Manual
Page 19
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2 Visión conjunta del aparato
815 Robotic USB Sample Processor XL
￭￭￭￭￭￭￭￭
11
1
Cubierta de seguridad (6.2751.100)
Para obtener información sobre otros mode-
los, véase el cap. Accesorios.
2
Gradilla de muestras (6.2041.800)
Para obtener información sobre otros mode-
los, véase el cap. Accesorios.
3
Plato giratorio
Con clavijas guía.
4
Riel para agitador
Para agitadores magnéticos (741 Stirrer.)
5
Cadena para guía automática
Para cables y tubos.
6
Elevador
Con soporte para cabezal de titración.
7
786 Swing Head (2.786.0040)
Accionamiento para brazo giratorio.
8
Brazo giratorio (6.1462.050)
Con puntas de aspiración y dosificación.
9
Sensor vaso
USB 2
1
2
3
4
5
6
7
8
T1
T2

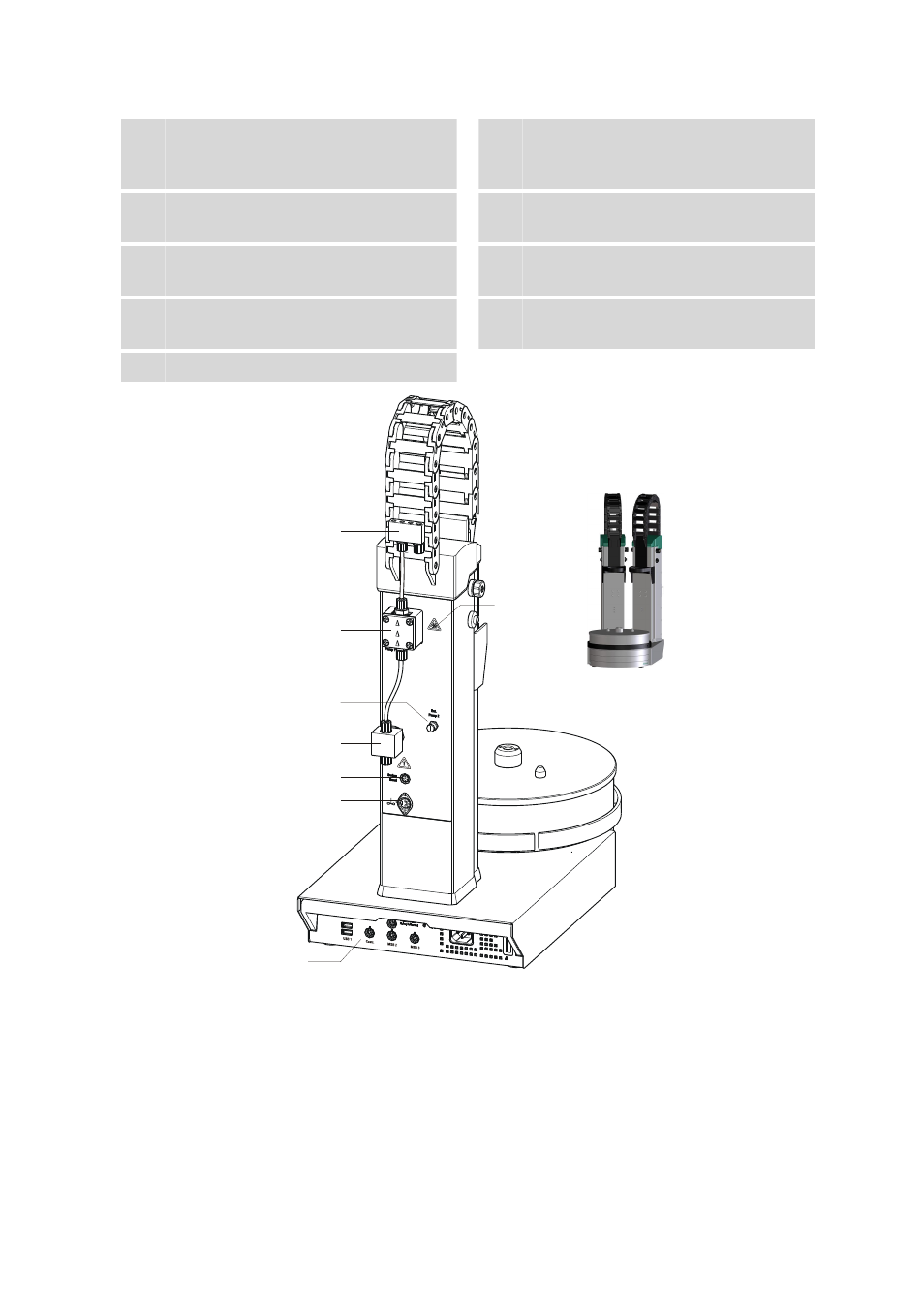

Figura 3
Parte posterior 815 Robotic USB Sample Processor XL
