3.16 High Capacity Metrohm Suppressor Module (MSM-HC)
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
48 ￭￭￭￭￭￭￭￭
850 Professional IC Anion MSM-HC HP-Gradient
1
3
2
3
4
5
6
7
8
2
1

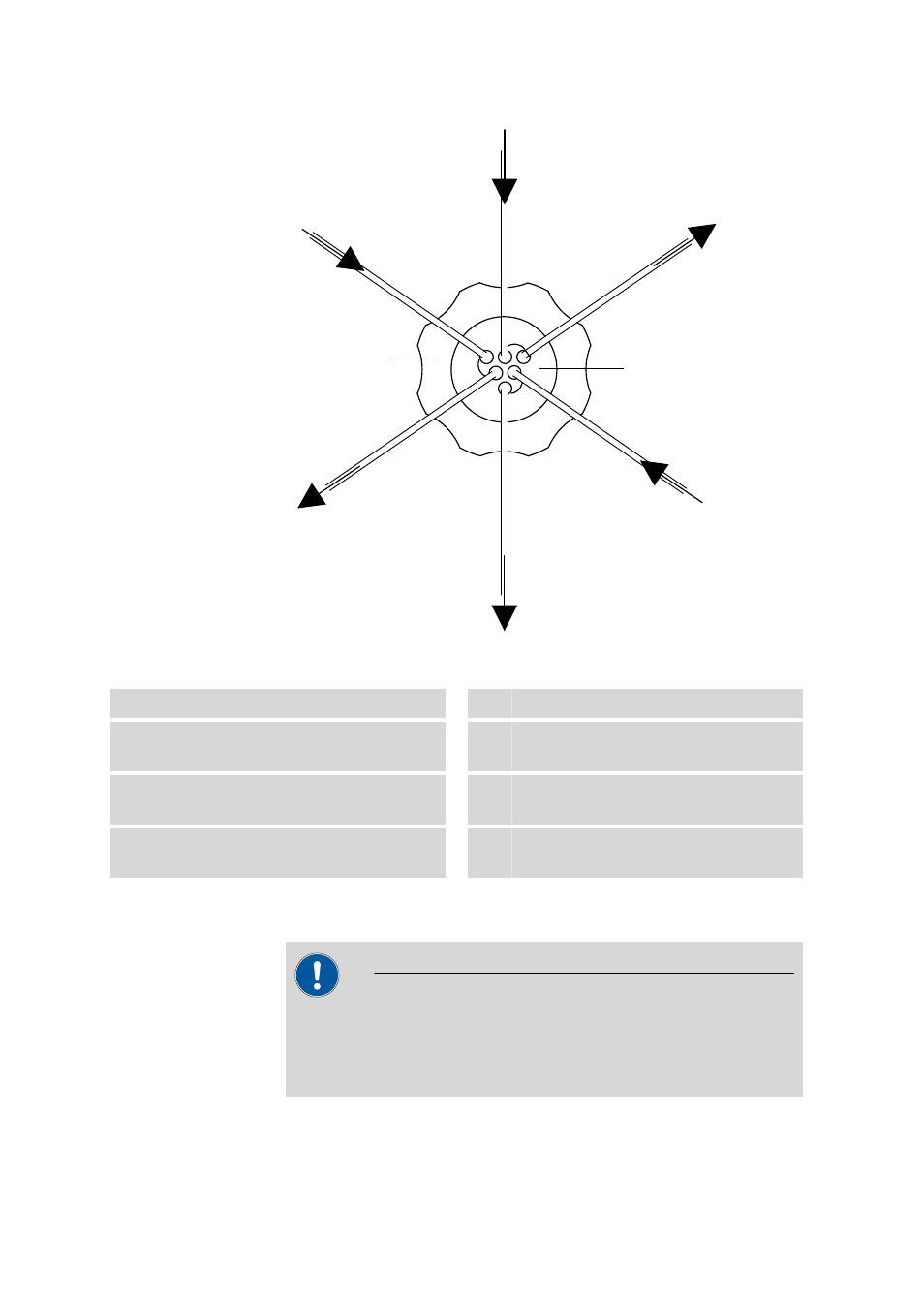

Figure 26 MSM-HC – Connectors
1 Union nut 2 MSM-HC connecting piece 6.2835.010
3 Eluent inlet capillary
Labeled with in. 4 Eluent outlet capillary
Labeled with out.
5 Rinsing solution inlet capillary
Labeled with rinsing solution. 6 Rinsing solution outlet capillary
Labeled with waste rins..
7 Regeneration solution outlet capillary
Labeled with waste reg.. 8 Regeneration solution inlet capillary
Labeled with regenerant.
The PTFE capillaries firmly mounted on the MSM-HC are connected to the
other components of the IC system as follows:
Caution
As the PTFE capillaries are very soft, the pressure screws should not be
overtightened.
Flattened capillaries can be shortened with the help of a capillary cutter.
