3 Installation
850 Professional IC Anion MSM-HC HP-Gradient
￭￭￭￭￭￭￭￭ 33
Connecting the eluent degasser
5
6
1
2
3
4

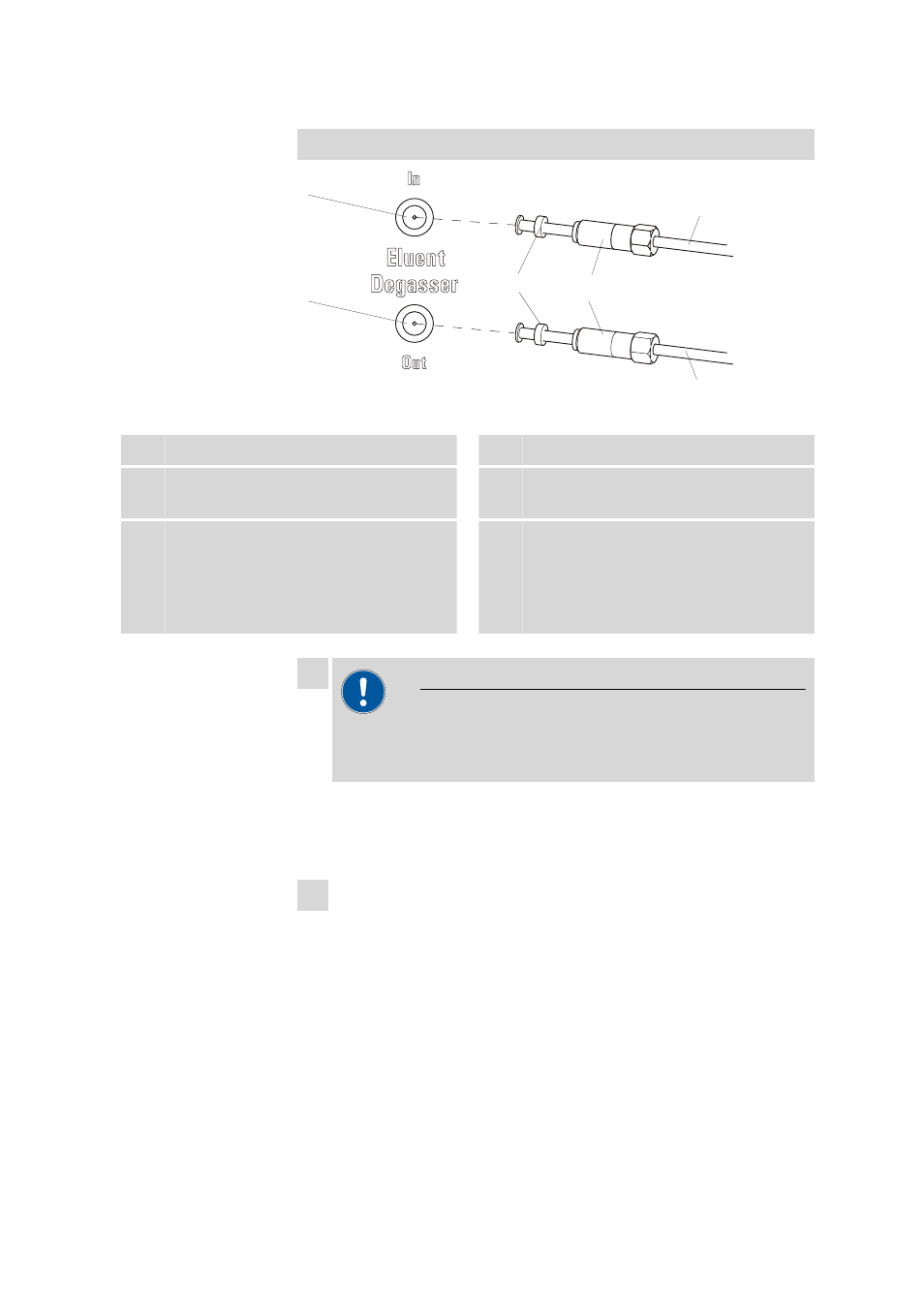

Figure 16 Eluent degasser
1 Eluent degasser input 2 Eluent degasser output
3 Tubing flare
With tubing nipple. 4 Clamping screw
5 Eluent aspiration tubing 6.1834.080
For aspirating the eluent. The clamping
screw (16-
4 ) is firmly mounted.
6 Connection capillary 6.1834.090
Connection from the eluent degasser to the
high pressure pump (see Chapter 3.10, page
34). The clamping screw (16-
4 ) is firmly
mounted.
1
Caution
The clamping screws (16-4) must be tightened carefully. Use the
6.2621.050 wrench for this.
￭ Insert the eluent aspiration tubing (16-5) in the eluent degasser
input (16-1).
￭ Carefully tighten clamping screw (16-4).
2 ￭ Insert connection capillary (16-6) (the end with the longer clamp-
ing screw (16-4)) into the eluent degasser output (16-2).
￭ Carefully tighten clamping screw (16-4).
￭ Connect the other end of the connection capillary (16-6) (with
the shorter clamping screw ) to the high pressure pump (see
"Connecting inlet to the high pressure pump", page 35).
