8.6 Remote interface
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
58 ￭￭￭￭￭￭￭￭
876 Dosimat plus
Dosing mode with pulse control
Output 0
Output 1
Output 2
Output 3
Output 4
ready
Error
Pulse
Start
Stop
Input 0
Input 1
[Fill]
[GO]

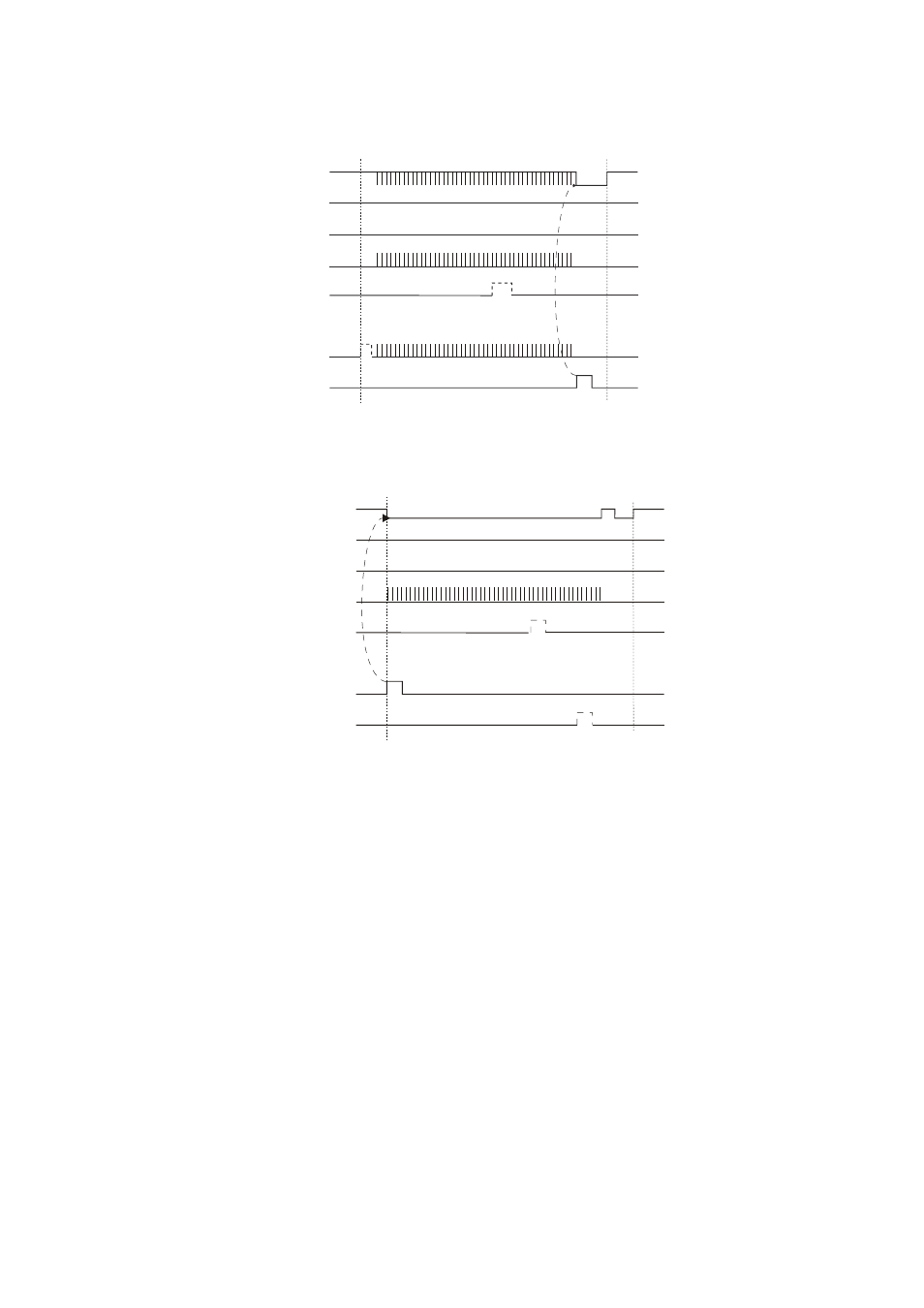

Figure 22 Remote status diagram DOS with pulse control
Dosing mode XDOS
EOD
[Fill]
[GO]
Output 0
Output 1
Output 2
Output 3
Output 4
ready/EOD
Error
Start
Stop
Input 0
Input 1
Pulse
Figure 23 Remote status diagram XDOS
EOD = End of Determination
