Metrohm 877 Titrino plus - Manual (Page 58)

5.13 Manual Control
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
48 ￭￭￭￭￭￭￭￭
877 Titrino plus

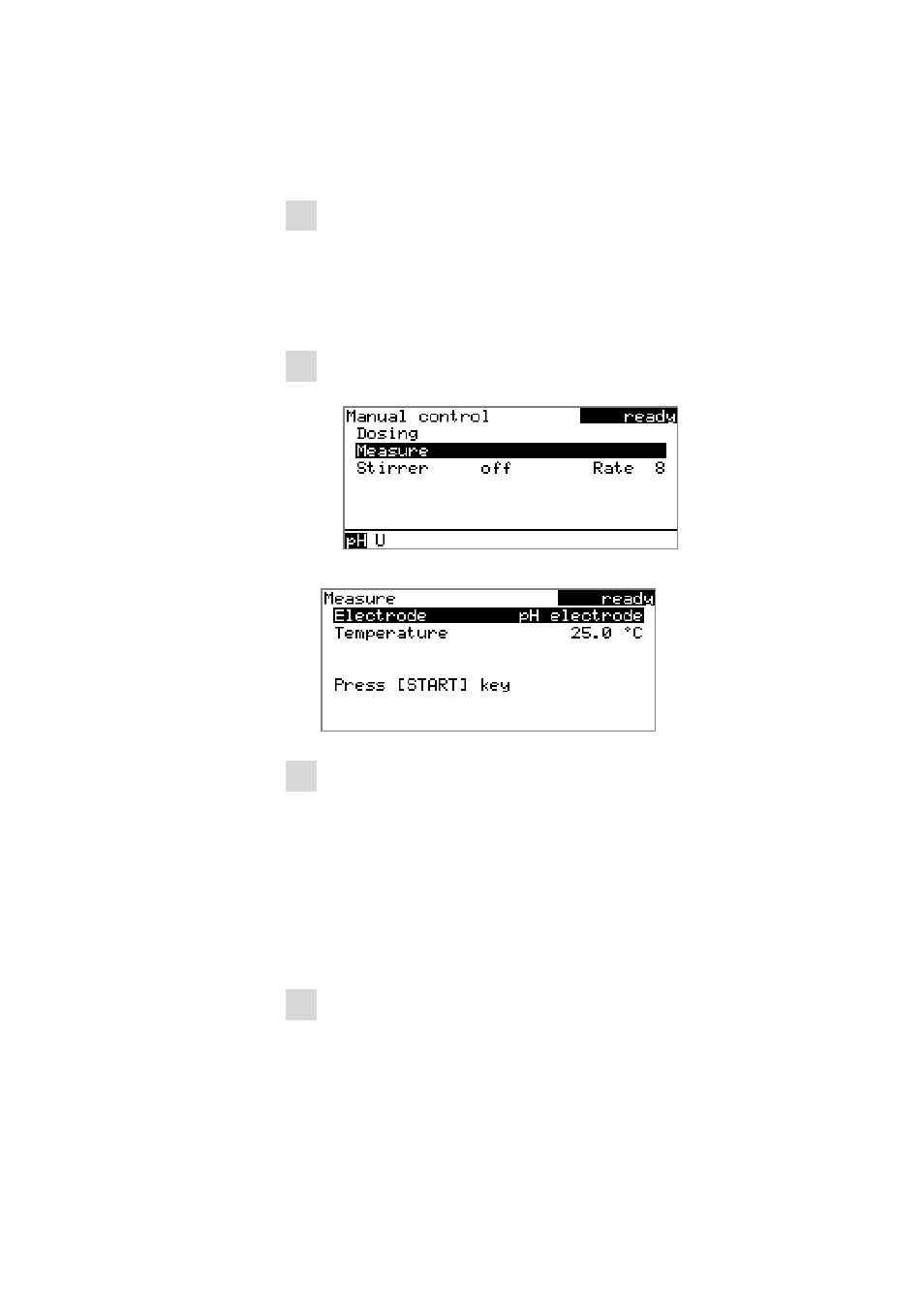

5.13.2 Measuring
Open the dialog for manual measurement as follows:
1 Open the manual control
￭ In the main dialog, select Menu and press [OK].
The main menu opens.
￭ Select the menu item Manual control and press [OK].
Manual control opens.
2 Select a measuring mode
￭ Select the Measure item.
￭ In the function bar, select the measuring mode and press [OK].
3 Configure the measuring mode
￭ Select the desired electrode from the sensor list.
The selection depends on the measuring mode. Sensors are
defined under System
▶ Sensors.
￭ Enter the measuring temperature if no temperature sensor is con-
nected. If a temperature sensor is connected then the tempera-
ture will be measured automatically.
This temperature is used for automatic temperature compensation
with pH measurements.
4 Start the measurement
￭ Press [START].
