10.6 Remote interface

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

108

￭￭￭￭￭￭￭￭

877 Titrino plus

10.6.2

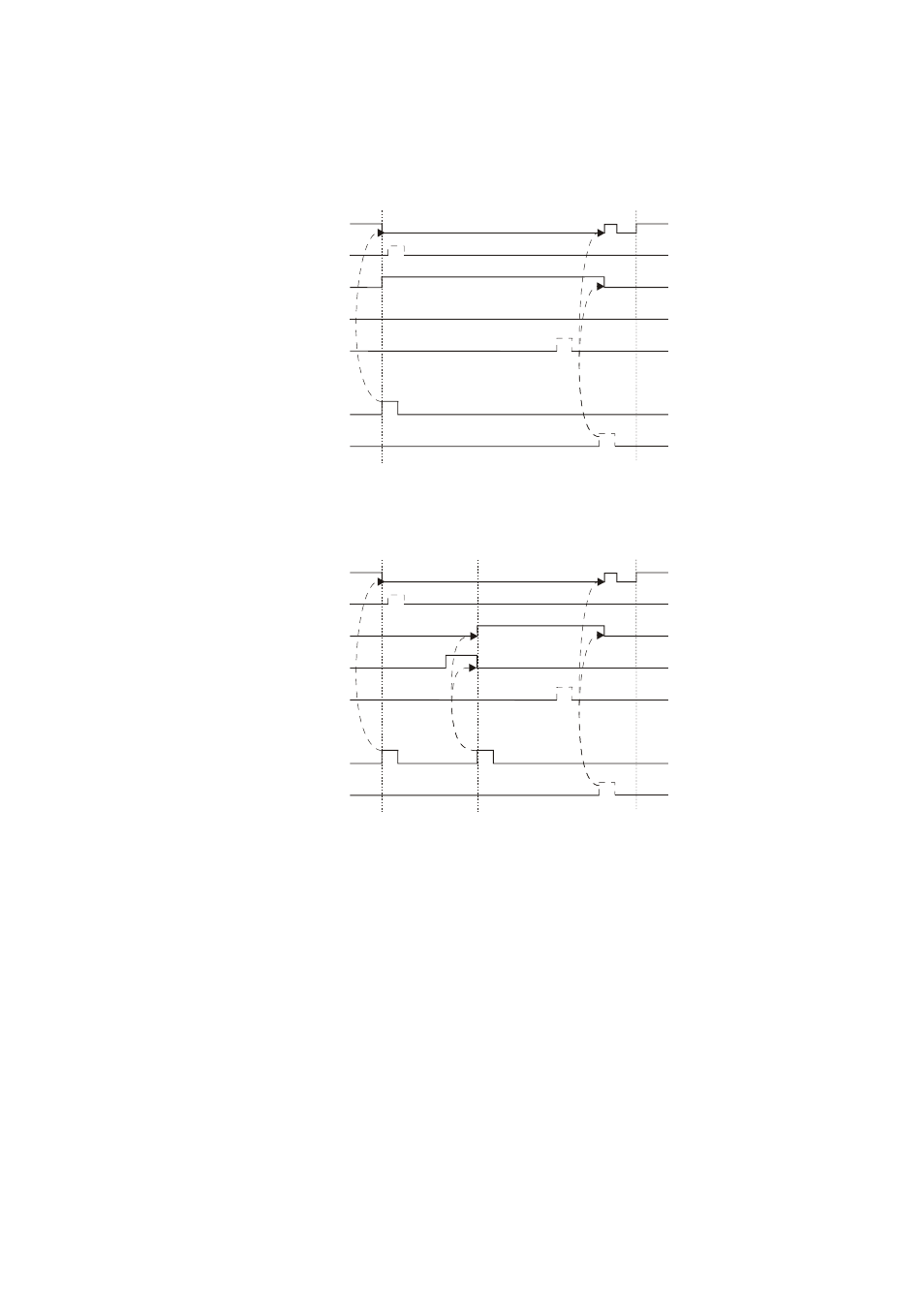

Status diagram of the remote interface

Titration mode MET

[START]

Output 0

Output 1

Output 3

Output 2

Output 4

ready/EOD

Activ./Dos.

condOK

Error

Start

Stop

Input 0

Input 1

EOD

[STOP]

Titr/Determ

Figure 21

Remote status diagram MET

Titration mode SET

[START]

Output 0

Output 1

Output 3

Output 2

Output 4

ready/EOD

Activ./Dos.

condOK

Error

Start

Stop

Input 0

Input 1

EOD

[START]

[STOP]

Titr/Determ

Figure 22

Remote status diagram SET
