1 Introduction
814 USB Sample Processor
￭￭￭￭￭￭￭￭
1
1 Introduction
1.1
The 814 USB Sample Processor in the Titrando sys-
tem
The 814 USB Sample Processor is a component of the modular Titrando
system. Operation is carried out by a Touch Control with touch-sensitive
screen ("Stand alone" titrator) or by a computer with a corresponding
software.

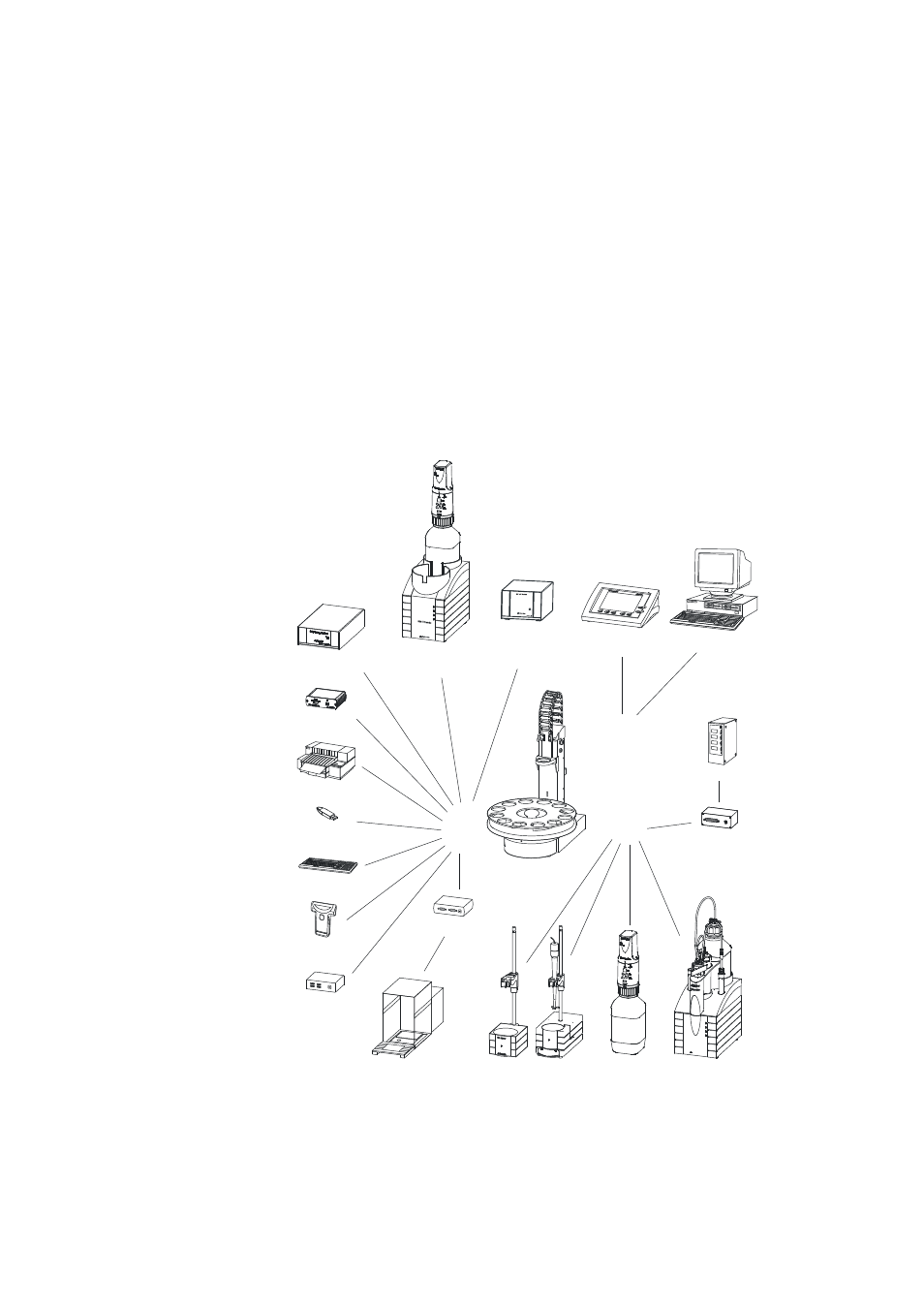

A Titrando system can contain numerous, various kinds of devices. The
following figure provides an overview of the peripheral devices you can
connect to the 814 USB Sample Processor.
MSB
USB
Controller
PC Keyboard
Barcode
Reader
USB Hub
RS-232/USB Box
Balance
Touch Control
USB Sample Processor
Robotic Titrosampler
Printer
Bluetooth USB
Adapter
Personal Computer
Relay Box
Remote Box
Dosing Interface
USB Lab Link
Stirrer / Ti Stand
Dosino
Dosimat
On
Status
805
Do
si
ma
Me
troh
On
Titrando
pH Module
Conductivity Module
Figure 1
The Titrando system
