￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument
814 USB Sample Processor ￭￭￭￭￭￭￭￭ 11
USB 2
1
2
3
4
5
6
7
8
T1 T2

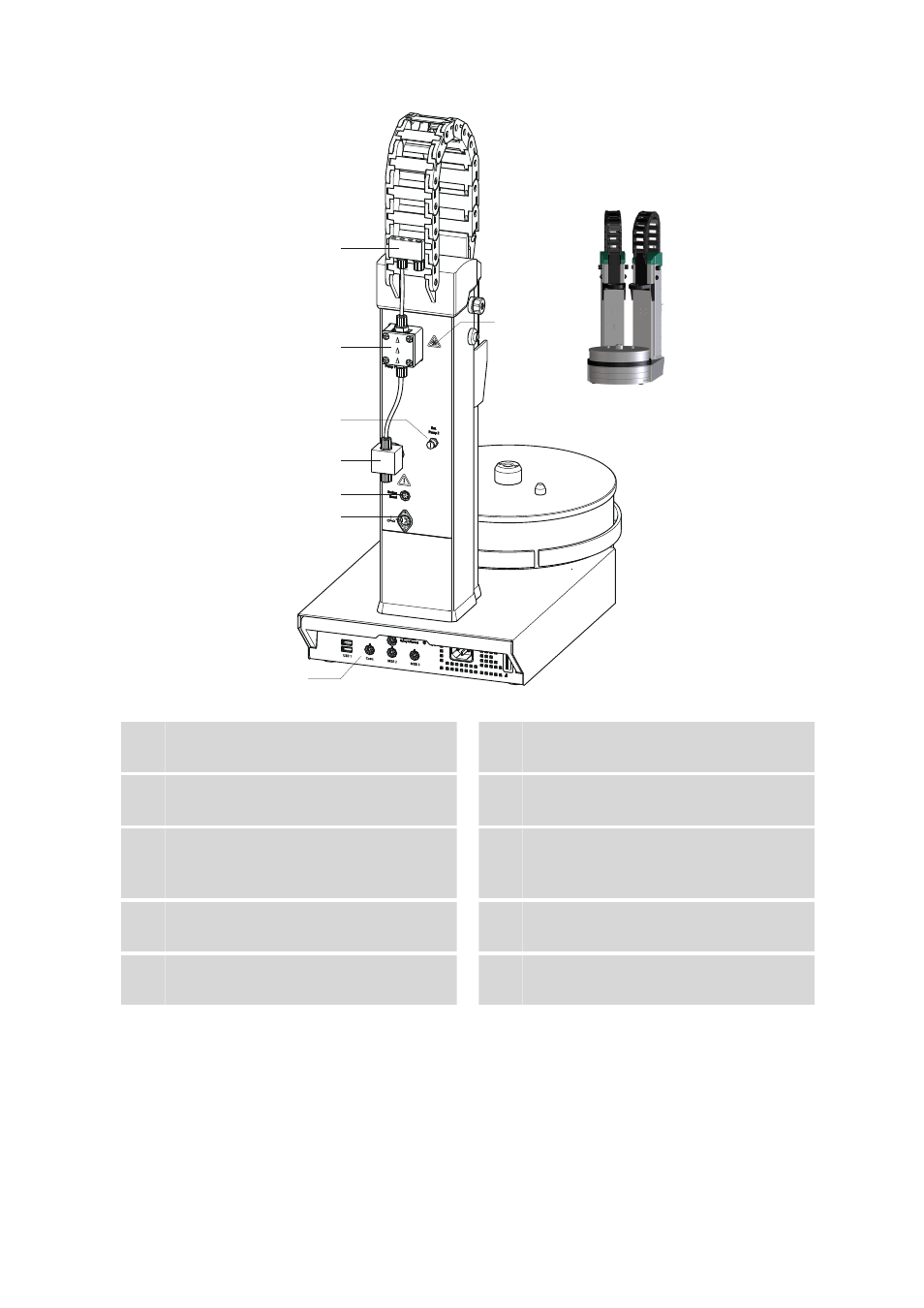

Figure 3 Rear 814 USB Sample Processor
1 Distributor
For rinsing equipment. 2 Membrane pump
Pump 1.
3 Pump connection
Pump 2. For the external pump. 4 Pump valve
5 Swing Head connector
Mini DIN socket (9-pin). 6 Stirrer connector
DIN socket. For rod stirrer (802 Stirrer) or
magnetic stirrer (741 Stirrer).
7 Rear panel with connectors 8 Warning symbol
(see Chapter 1.4.4, page 7)
T1 Tower 1
With a 2-tower model.
T2 Tower 2
With a 2-tower model.
