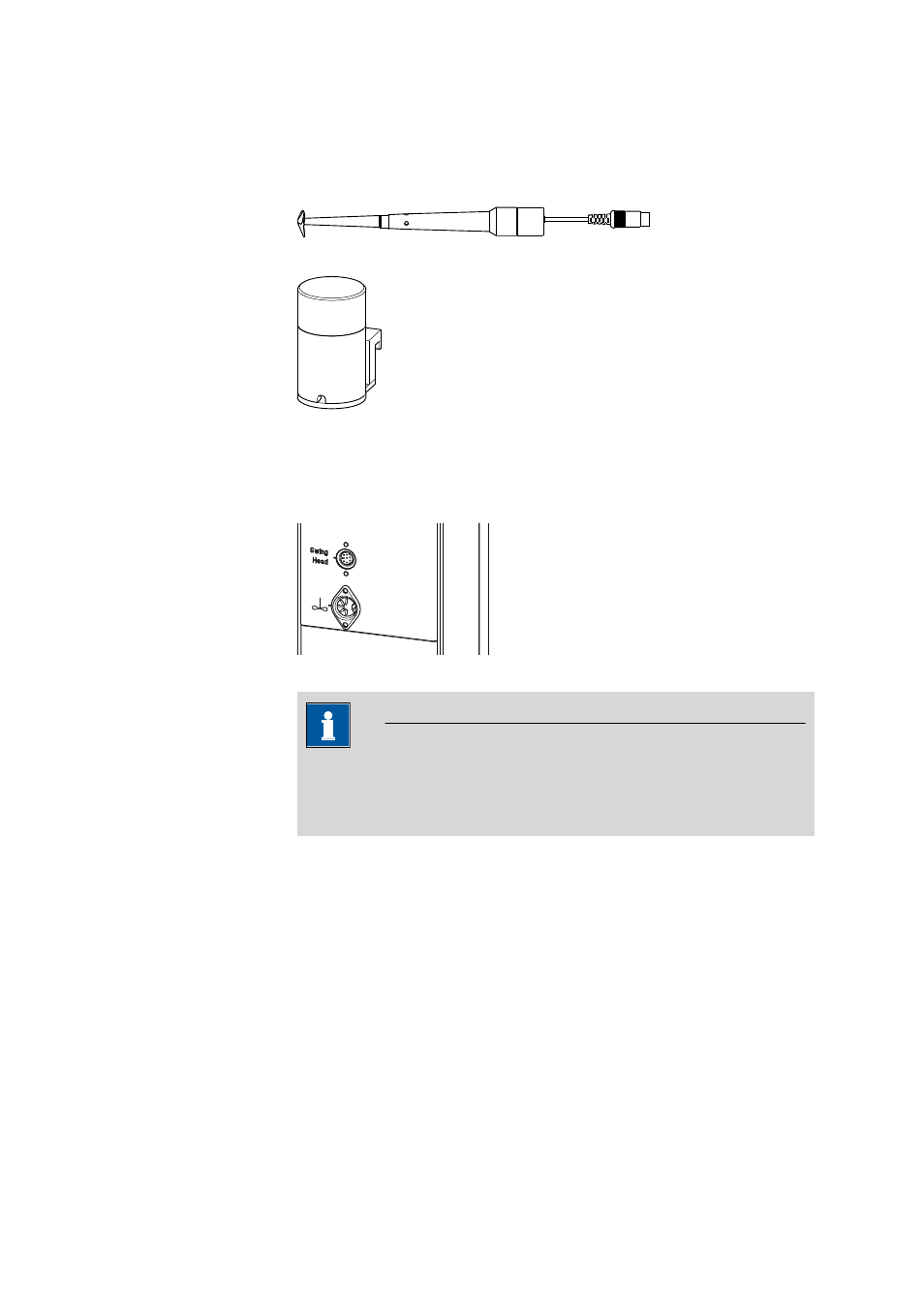

Connecting the tower stirrer
A DIN socket for connecting a rod stirrer (802 Stirrer) or a magnetic stir-
rer (741 Stirrer) is located on the rear side of the tower.
Figure 14 Rod stirrer (802 Stirrer)
Figure 15 Magnetic stirrer (741 Stirrer)
Take care to observe correct orientation of the contact pins when plug-
ging in the stirrer connection cable. The rib on the outside of the plug
must match the reference mark (on the left) on the socket.
Figure 16 Connecting the tower stirrer
Note
If an MSB stirrer is connected to the MSB1 or MSB2 socket, then the
stirrer connector on tower 1 or tower 2 cannot be used, because the
tower stirrers are internally controlled as well via MSB1 or MSB2.
