￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
814 USB Sample Processor ￭￭￭￭￭￭￭￭ 33
1
2
3

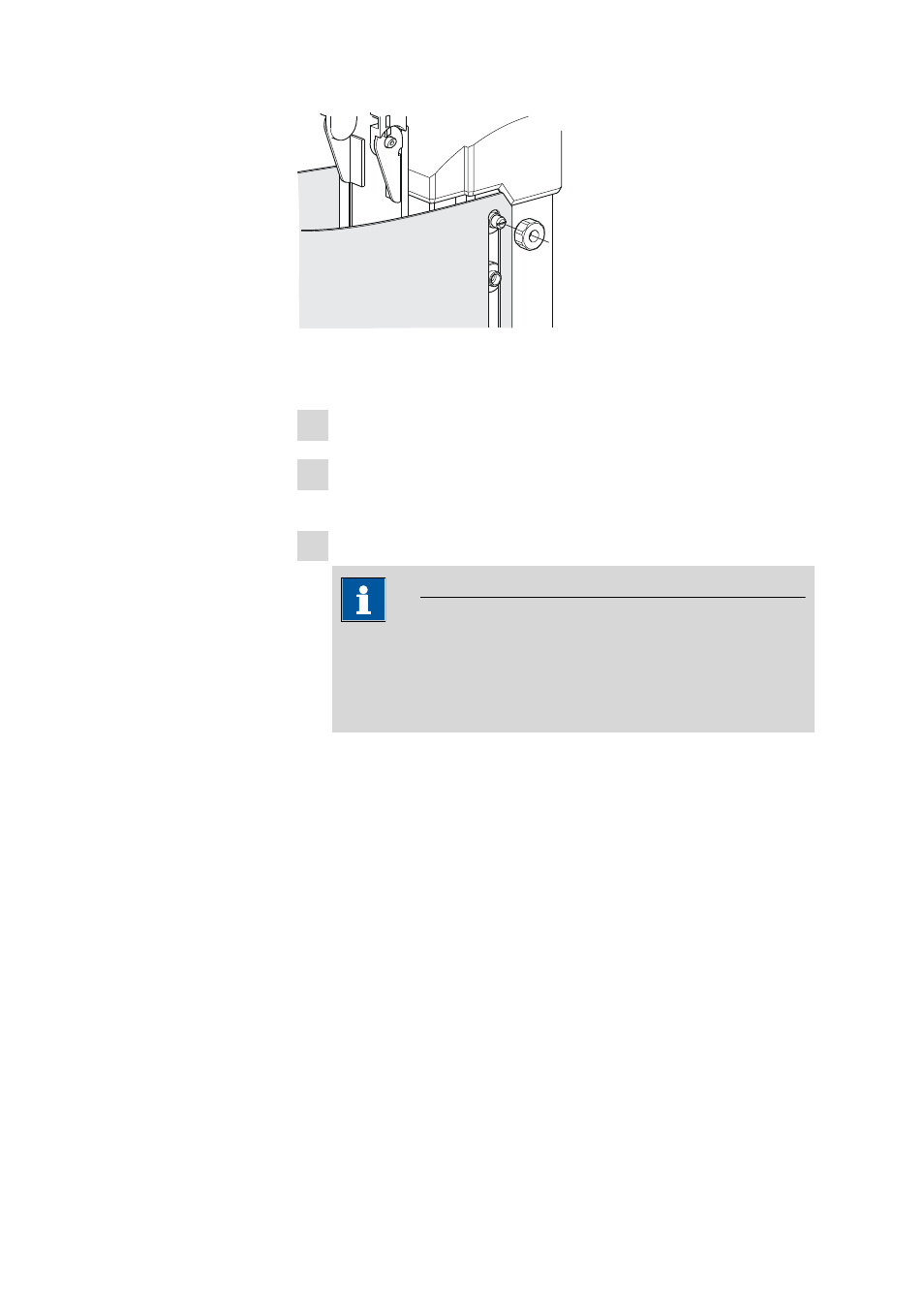

Figure 26 Mount the safety shield
Proceed as follows:
1 Loosen the knurled screws on both sides of the tower.
2 Move the safety shield into position, starting from the top. Observe
the corresponding illustration.
3 Fix the safety shield in place with the knurled screws.
Note
You can adjust the vertical position of the safety shield at any time
by loosening the screws. Take care to ensure that is not possible to
reach into the working area of the lift while the instrument is in
operation.
